Zu diesem Artikel gibt es einen Nachfolger:
Merkmale
| Housing Material | Aluminium |
| Housing Color, Color System | Traffic white RAL 9016 |
| Housing Color | White |
| Lightcolor | Warm white (WW) |
| Color Temperature | 3000 K |
| CRI (Ra) | 80 |
| Rated Luminous Flux | 3900 lm |
| Warranty (years) | 5 |
| Rated Angle of Reflection | 120 Degree |
| badge_neu_en | false |
| badge_ausgelistet_en | false |
| Product state | Stock Item |
| Product Type | LED panel |
| badge_sale_en | false |
| eShop visible | yes |
| UGR | 22 |
| Dimmable | No |
| Motion Detector | No |
| Length | 295 mm |
| Width | 1195 mm |
| Height | 32 mm |
| Cut Out Length | 270 mm |
| Cut Out Width | 1170 mm |
| Rated Input Voltage | 220-240 V/AC |
| Rated Input | 30.5 W |
| IP Protection Class | IP 40 |
| IK Protection Class | IK03 |
| Light Source | LED |
| Luminous Efficiency | 127.2 lm/W |
| Light direction | Below |
| Colour Consistency | 3 SDCM |
| Life Time L80 / B50 | 50000 h |
| Switching Cycles | 100000 |
| Number of Channels | 1 |
| Product weight | 1693 g |
| Connection Type | Clamp |
| Power Supply Unit incl. | Yes |
| Power Supply Unit Changeable | Yes by technician |
| Energieeffizenzklasse | E |
| Power Consumption | 31 kWh/1000h |
| Power Factor | 0.9 |
| Max. units per MCB B10 | 10 PCS |
| Max. units per MCB B16 | 16 PCS |
| Max. units per MCB C10 | 17 PCS |
| Max. units per MCB C16 | 26 PCS |
| Working Temperature | -20 to 45 °C |
| Storage Temperature | -40 to 80 °C |
| Mounting Type | Installation mounting |
| Mounting Location | Inside |
| Mounting Area | Ceiling installation |
Verkaufsdaten
| Mindestbestellmenge | 1 |
| Bestellschritt | 1 |
Abbildung ähnlich

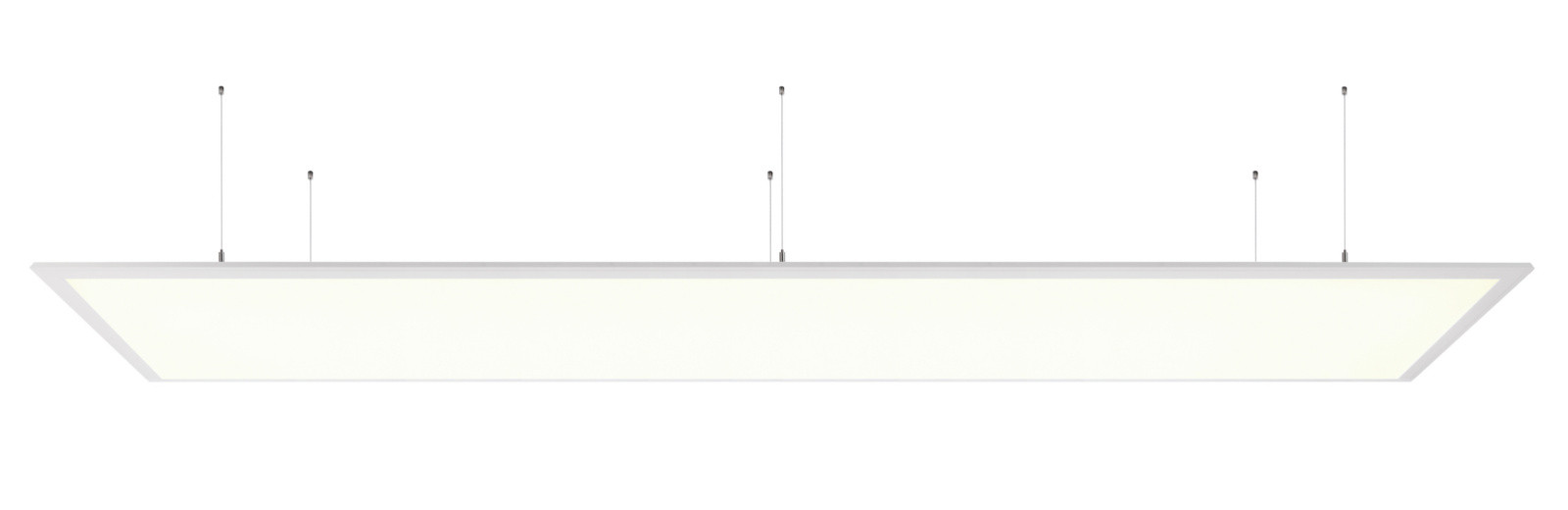

Einlegepanel - LED Panel PRO 300x1200 mm, 36 W, 3000 K, Weiß
100047
4042943156495
Auslaufartikel
79,95 EUR
(exkl. MwSt.)
je 1
Funktionen
Verkaufsdaten
| Mindestbestellmenge | 1 |
| Bestellschritt | 1 |
Merkmale
| Housing Material | Aluminium |
| Housing Color, Color System | Traffic white RAL 9016 |
| Housing Color | White |
| Lightcolor | Warm white (WW) |
| Color Temperature | 3000 K |
| CRI (Ra) | 90 |
| Rated Luminous Flux | 3460 lm |
| Rated Angle of Reflection | 110 Degree |
| Pendulum Length max. | 1 mm |
| badge_neu_en | false |
| badge_ausgelistet_en | true |
| Product Type | LED panel |
| badge_sale_en | false |
| eShop visible | yes |
| Dimmable | Yes |
| Control | Dimmable via optional power supply unit |
| Motion Detector | No |

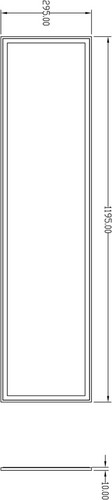

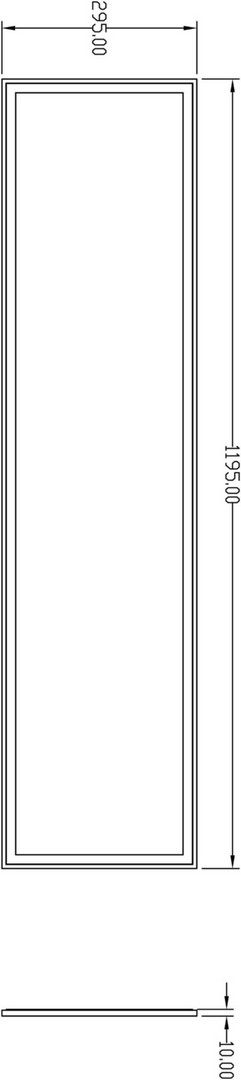

| Length | 1195 mm |
| Width | 295 mm |
| Height | 10 mm |
| Rated Input Voltage | 35 V/DC |
| Rated Input | 36.0 W |
| Protection Class | Protection class III/safety extra-low voltage |
| IP Protection Class | IP 20 |
| Light Source | LED |
| Luminous Efficiency | 96.1 lm/W |

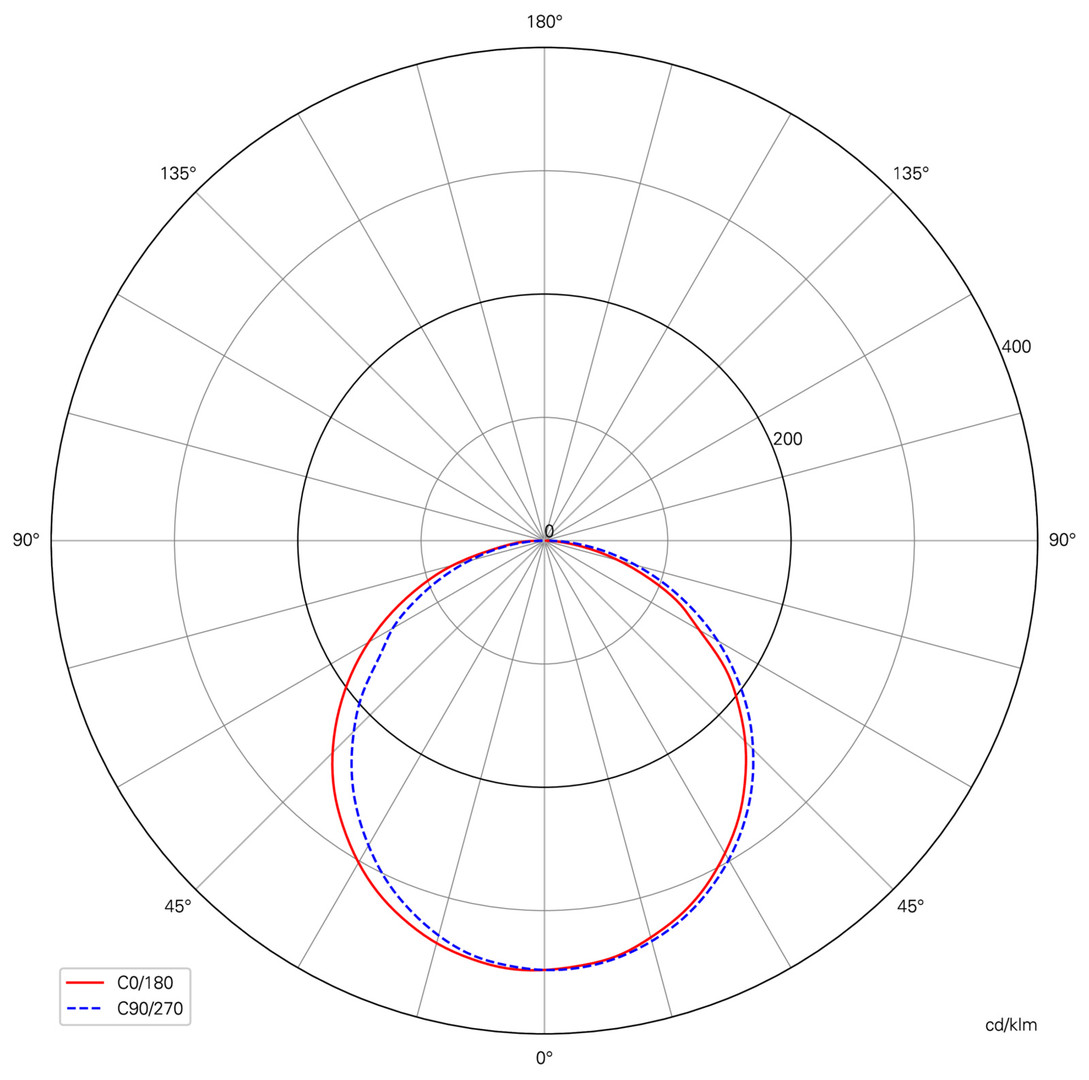

| Light Distribution | Symmetric |
| Light direction | Below |
| Colour Consistency | 6 SDCM |
| Life Time L70 / B50 | 30000 h |
| Switching Cycles | 100000 |
| Product weight | 2920 g |
| Secondary Connection | Open cables |
| Power Supply Unit incl. | No |
| Operating Mode | Constant current |
| Power Consumption | 36 kWh/1000h |
| Rated Current in mA | 1050 mA |
| Power Factor | 0.97 |
| Working Temperature | -5 to 40 °C |
| Storage Temperature | -10 to 40 °C |
| Mounting Type | Installation mounting |
| Mounting Location | Inside |
| Mounting Area | Ceiling installation |
| Scope of Delivery | 1x safety kit |
| Energieeffizenzklasse | F |
