Netzgerät (CC, DC) dimmbar - BASIC, DIM, Multi CC, DMC-40W Artikelnummer: 843276

Rated Input Voltage	110-240 V/AC
Frequency	50 / 60 Hz
Operating Mode	Constant current
Output Voltage	3-42 V/DC
Control	DALI 1.0 / DT6
badge_neu_en	false
badge_ausgelistet_en	true
Product Type	Power supply unit (CC, DC) dimmable
badge_sale_en	false
eShop visible	yes
Number of Channels	1
Output Current Selectable in mA	350 mA
Power	28.0-40.0 W
Power min.	28.0 W
Power max.	40.0 W
Dimmable	Yes
Length	122 mm
Width	78 mm
Height	33 mm
Protection Class	Protection class II/protective insulation
IP Protection Class	IP 20
Housing Material	Plastic
Housing Color	White
Inrush Current max.	18 A / 60 µs
Power Factor	0.9
Max. units per MCB B10	38
Max. units per MCB B16	62
Max. units per MCB C10	77
Max. units per MCB C16	124
Connection Type	Clamp
Product weight	223 g
Working Temperature	-20 to 50 °C
Mounting Location	Inside
Functions	Short-circuit proof

Mindestbestellmenge	1
Bestellschritt	1

Abbildung ähnlich

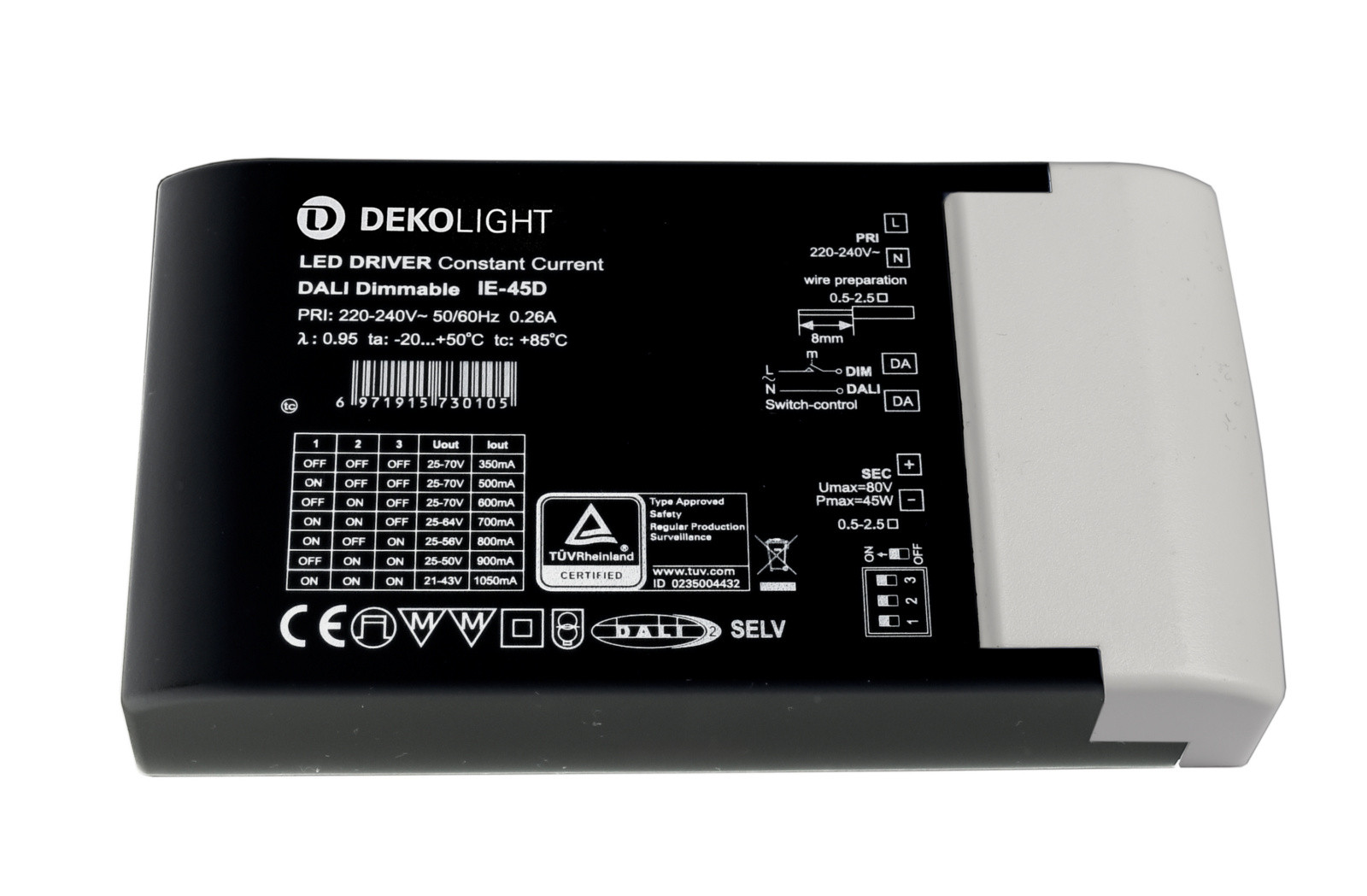

Netzgerät (CC, DC) dimmbar - BASIC, DIM, Multi CC, IE-45D

Artikelnummer: 862192 EAN: 4042943167163

55,95 EUR (exkl. MwSt.)

je 1

Mindestbestellmenge	1
Bestellschritt	1

Rated Input Voltage	220-240 V/AC
Frequency	50 / 60 Hz
Operating Mode	Constant current
Output Voltage	25-56 V/DC
Control	DALI 2.0 / DT6
Warranty (years)	5
badge_neu_en	false
badge_ausgelistet_en	false
Product state	Stock Item
Product Type	Power supply unit (CC, DC) dimmable
badge_sale_en	false
eShop visible	yes
Number of Channels	1
Output Current Selectable in mA	350 mA
Power	8.7-45.0 W
Power min.	8.7 W
Power max.	45.0 W
Dimmable	Yes

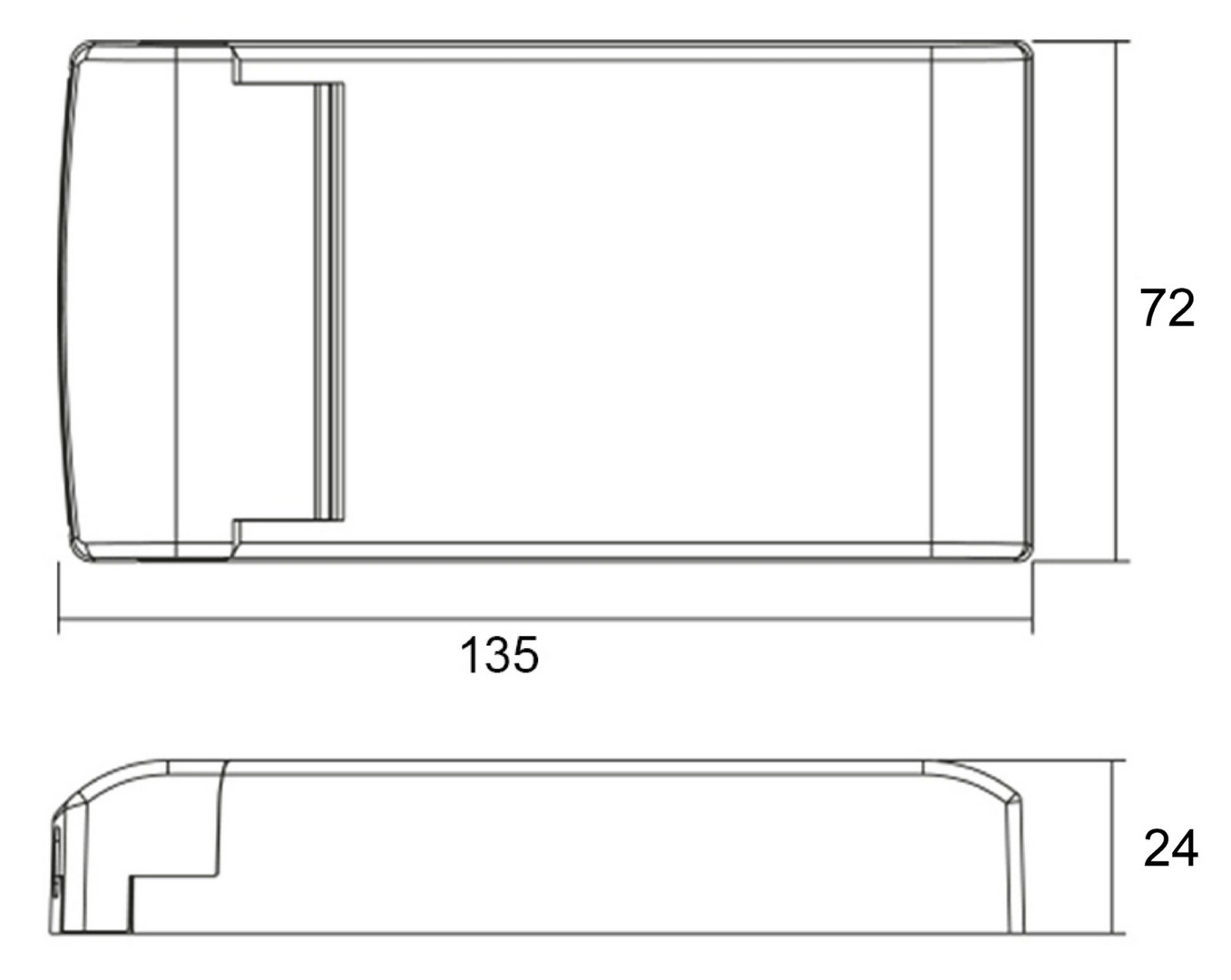

Length	135 mm
Width	72 mm
Height	24 mm
Protection Class	Protection class II/protective insulation
IP Protection Class	IP 20
Housing Material	Plastic
Housing Color	Black
Inrush Current max.	20 A / 100 µs
Capacitive Load	180.8 nF
Power Factor	0.98
Max. units per MCB B10	13
Max. units per MCB B16	20
Max. units per MCB C10	27
Max. units per MCB C16	44
Connection Type	Clamp
Product weight	166 g
Working Temperature	-20 to 50 °C
Storage Temperature	-20 to 70 °C
Mounting Location	Inside
Functions	Short-circuit proof
