Abbildung ähnlich

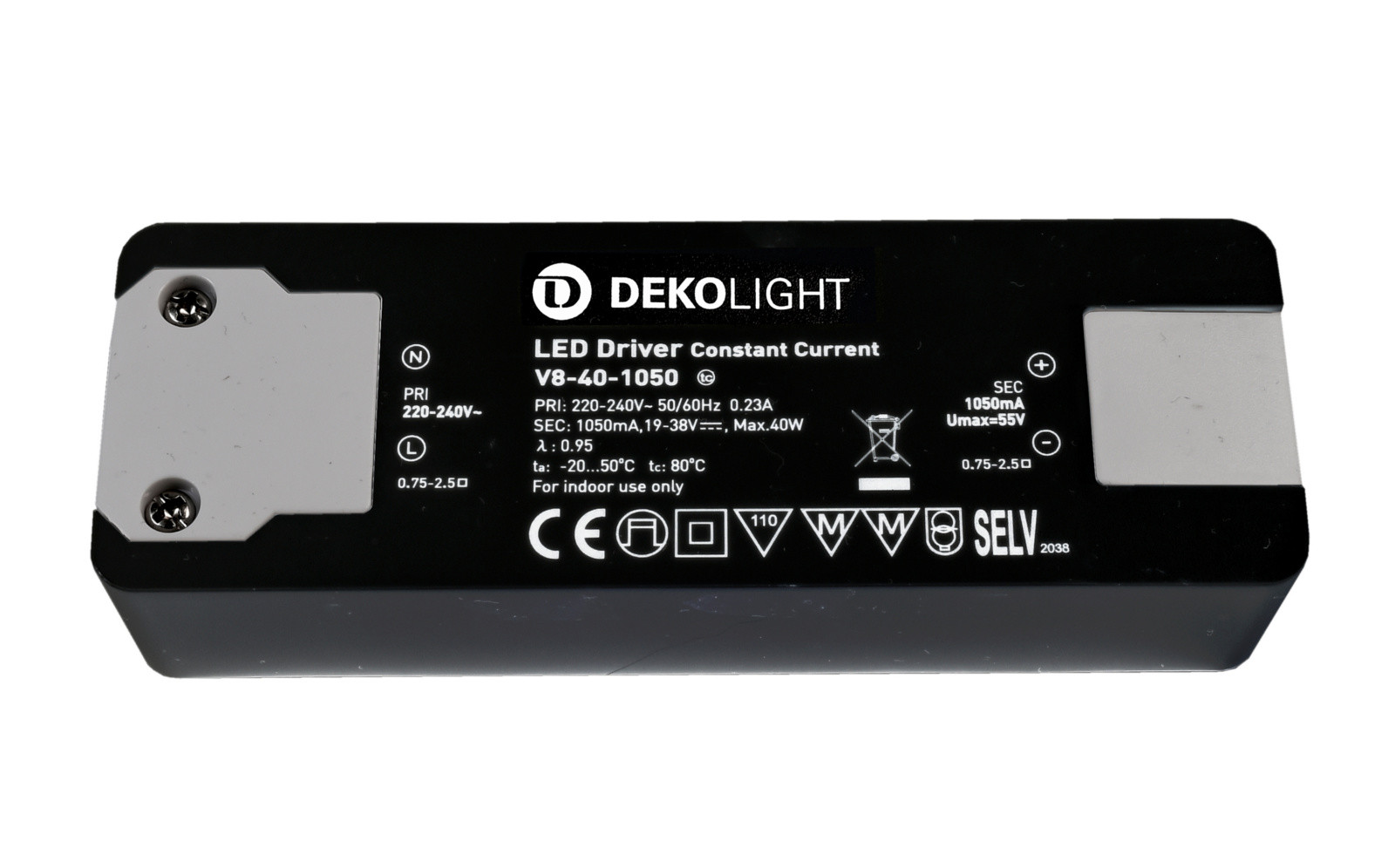

Netzgerät (CC, DC) - BASIC, CC, V8-40-1050mA/40V

Artikelnummer: 862201 EAN: 4042943167699

23,95 EUR (exkl. MwSt.)

je 1

Mindestbestellmenge	1
Bestellschritt	1

Rated Input Voltage	220-240 V/AC
Frequency	50 / 60 Hz
Operating Mode	Constant current
Output Voltage	19-38 V/DC
Output Current in mA	1050 mA
Warranty (years)	5
badge_neu_en	false
badge_ausgelistet_en	false
Product state	Stock Item
Product Type	Power supply unit (CC, DC)
badge_sale_en	false
eShop visible	yes
Number of Channels	1
Power	20.0-40.0 W
Power min.	20.0 W
Power max.	40.0 W

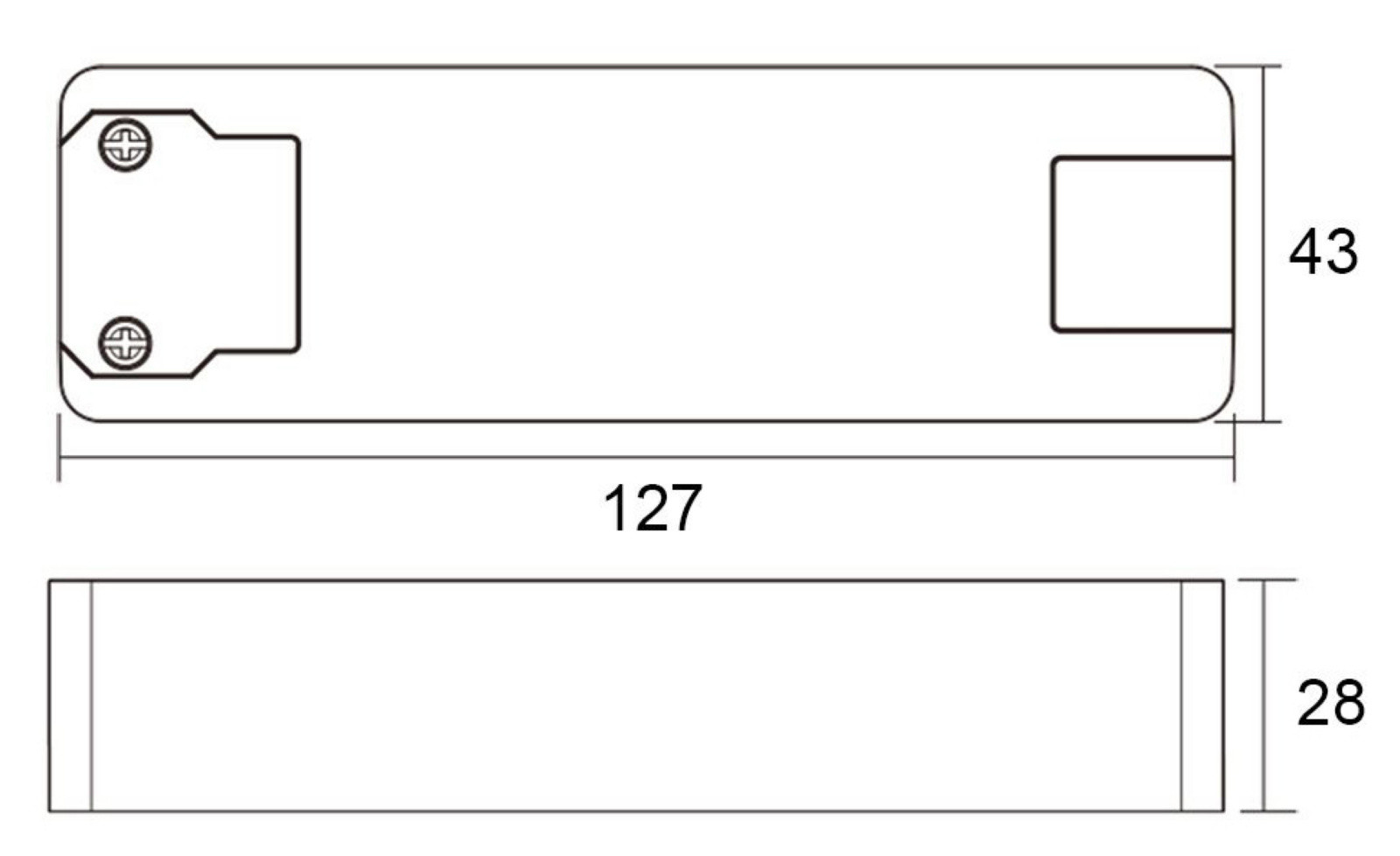

Length	127 mm
Width	43 mm
Height	28 mm
Protection Class	Protection class II/protective insulation
IP Protection Class	IP 20
Housing Material	Plastic
Housing Color	Black
Inrush Current max.	20 A / 300 µs
Capacitive Load	355.52 nF
Power Factor	0.97
Max. units per MCB B10	8
Max. units per MCB B16	14
Max. units per MCB C10	18
Max. units per MCB C16	29
Connection Type	Clamp
Product weight	117 g
Working Temperature	-20 to 50 °C
Storage Temperature	-20 to 70 °C
Mounting Location	Inside
Functions	Short-circuit proof
Life Time	30000 h
