Zu diesem Artikel gibt es einen Vorgänger:
Merkmale
| Housing Material | Aluminium |
| Housing Color, Color System | Traffic white RAL 9016 |
| Housing Color | White |
| Lightcolor | Warm white/neutral white/cold white |
| Color Temperature | 3000/4000/5500 K |
| CRI (Ra) | 90 |
| Rated Luminous Flux | 3300 lm |
| Rated Angle of Reflection | 100 Degree |
| badge_neu_en | false |
| badge_ausgelistet_en | true |
| Product Type | LED panel |
| badge_sale_en | false |
| eShop visible | yes |
| UGR | 19 |
| Dimmable | Yes |
| Control | Leading-edge dimmer |
| Motion Detector | No |
| Length | 620 mm |
| Width | 620 mm |
| Height | 10 mm |
| Rated Input Voltage | 220-240 V/AC |
| Frequency | 50 / 60 Hz |
| Rated Input | 40.0 W |
| Protection Class | Protection class II/protective insulation |
| IP Protection Class | IP 20 |
| IK Protection Class | IK08 |
| Light Source | LED |
| Luminous Efficiency | 82.5 lm/W |
| Light direction | Below |
| Colour Consistency | 6 SDCM |
| Life Time L70 / B50 | 30000 h |
| Switching Cycles | 15000 |
| Product weight | 3240 g |
| Connection Type | Clamp |
| Power Supply Unit incl. | Yes |
| Energieeffizenzklasse | G |
| Power Consumption | 40 kWh/1000h |
| Power Factor | 0.9 |
| Working Temperature | -20 to 40 °C |
| Storage Temperature | -20 to 40 °C |
| Mounting Type | Installation mounting |
| Mounting Location | Inside |
| Mounting Area | Ceiling installation |

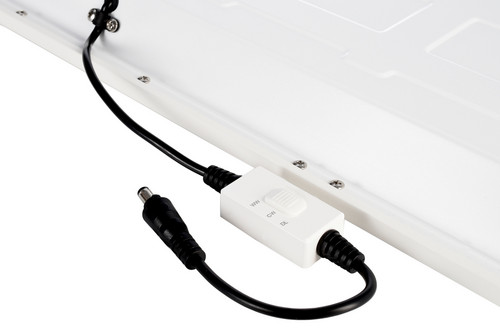

| Scope of Delivery | 1x colour selector switch |
Verkaufsdaten
| Mindestbestellmenge | 1 |
| Bestellschritt | 1 |
Abbildung ähnlich

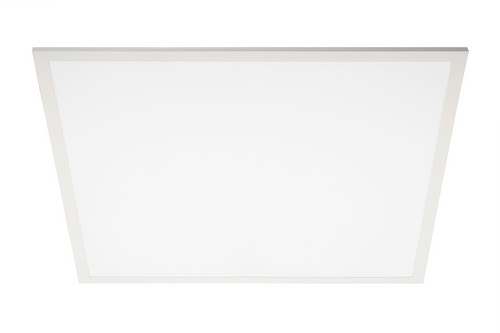

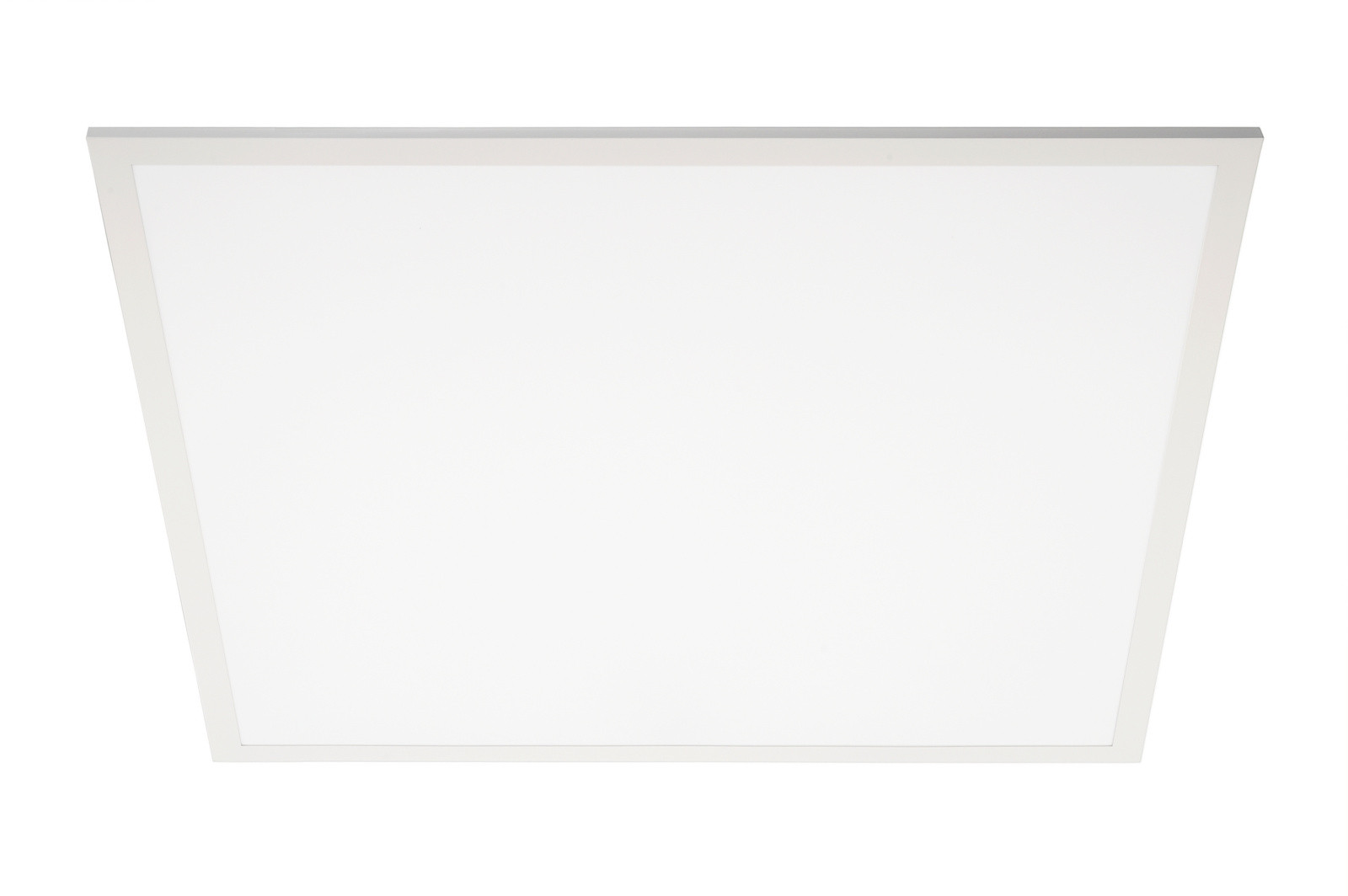

Einlegepanel - Basic Flex 625x625 mm, 32 W, 3000/4000/6000 K, Weiß
100142
4042943171825
38,95 EUR
(exkl. MwSt.)
je 1
Funktionen
Verkaufsdaten
| Mindestbestellmenge | 1 |
| Bestellschritt | 1 |
Merkmale
| Housing Material | Aluminium |
| Housing Color, Color System | Traffic white RAL 9016 |
| Housing Color | White |
| Lightcolor | Warm white/neutral white/cold white |
| Color Temperature | 3000/4000/6000 K |
| CRI (Ra) | 80 |
| Rated Luminous Flux | 4150/4300/4200 lm |
| Warranty (years) | 5 |
| Rated Angle of Reflection | 120 Degree |
| badge_neu_en | false |
| badge_ausgelistet_en | false |
| Product state | Stock Item |
| Product Type | LED panel |
| badge_sale_en | false |
| eShop visible | yes |
| Dimmable | No |
| Motion Detector | No |

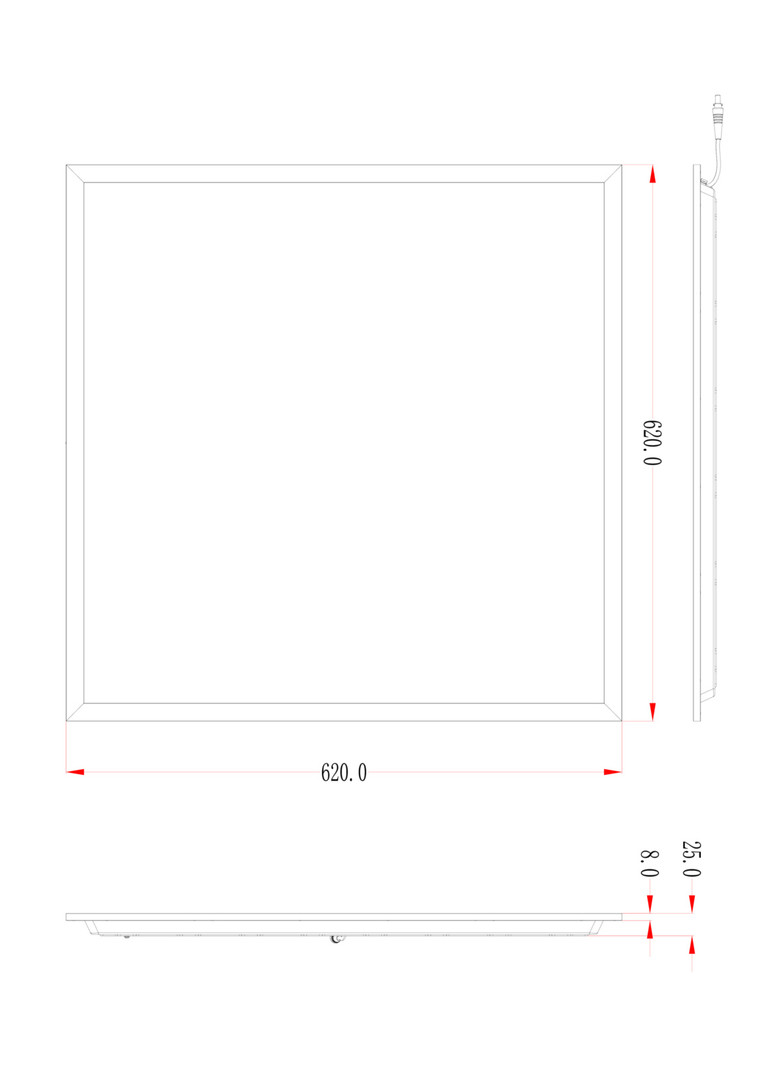

| Length | 620 mm |
| Width | 620 mm |
| Height | 25 mm |
| Rated Input Voltage | 200-264 V/AC |
| Frequency | 50 / 60 Hz |
| Voltage range DC | 176-280 V/DC |
| Voltage range emergency lighting | 176-280 V/DC |
| EOFI | 100 % |
| Power Selectable | 20.0 W |
| IP Protection Class | IP 50 |
| IK Protection Class | IK03 |
| Light Source | LED |
| Luminous Efficiency | 134.4 lm/W |
| Light direction | Below |
| Colour Consistency | 3 SDCM |
| Life Time L70 / B50 | 75000 h |
| Life Time L80 / B10 | 50000 h |
| Life Time L80 / B50 | 60000 h |
| Switching Cycles | 100000 PCS |
| Number of Channels | 1 |
| Number of Cable Entries | 2 PCS |
| Product weight | 1735 g |
| Connection Type | Clamp |
| Through Wiring possible | Yes |
| Power Supply Unit incl. | Yes |
| Power Supply Unit Changeable | Yes by technician |
| Power Consumption | 32 kWh/1000h |
| Rated Current Selectable in mA | 525 mA |
| Inrush Current max. | 19.2 A / 209 µs |
| Power Factor | 0.9 |
| Max. units per MCB B10 | 23 PCS |
| Max. units per MCB B16 | 38 PCS |
| Max. units per MCB C10 | 30 PCS |
| Max. units per MCB C16 | 48 PCS |
| Working Temperature | -10 to 40 °C |
| Storage Temperature | -20 to 50 °C |
| Mounting Type | Installation mounting |
| Mounting Location | Inside |
| Mounting Area | Ceiling installation |
| Functions | Emergency power capable |
| UGR | 22 |
| Energieeffizenzklasse | D |
