Housing Material	Aluminium
Housing Color, Color System	Traffic white RAL 9016
Housing Color	White
Lightcolor	Warm white/neutral white/cold white
Color Temperature	3000/4000/6000 K
CRI (Ra)	80
Rated Luminous Flux	4150/4300/4200 lm
Warranty (years)	5

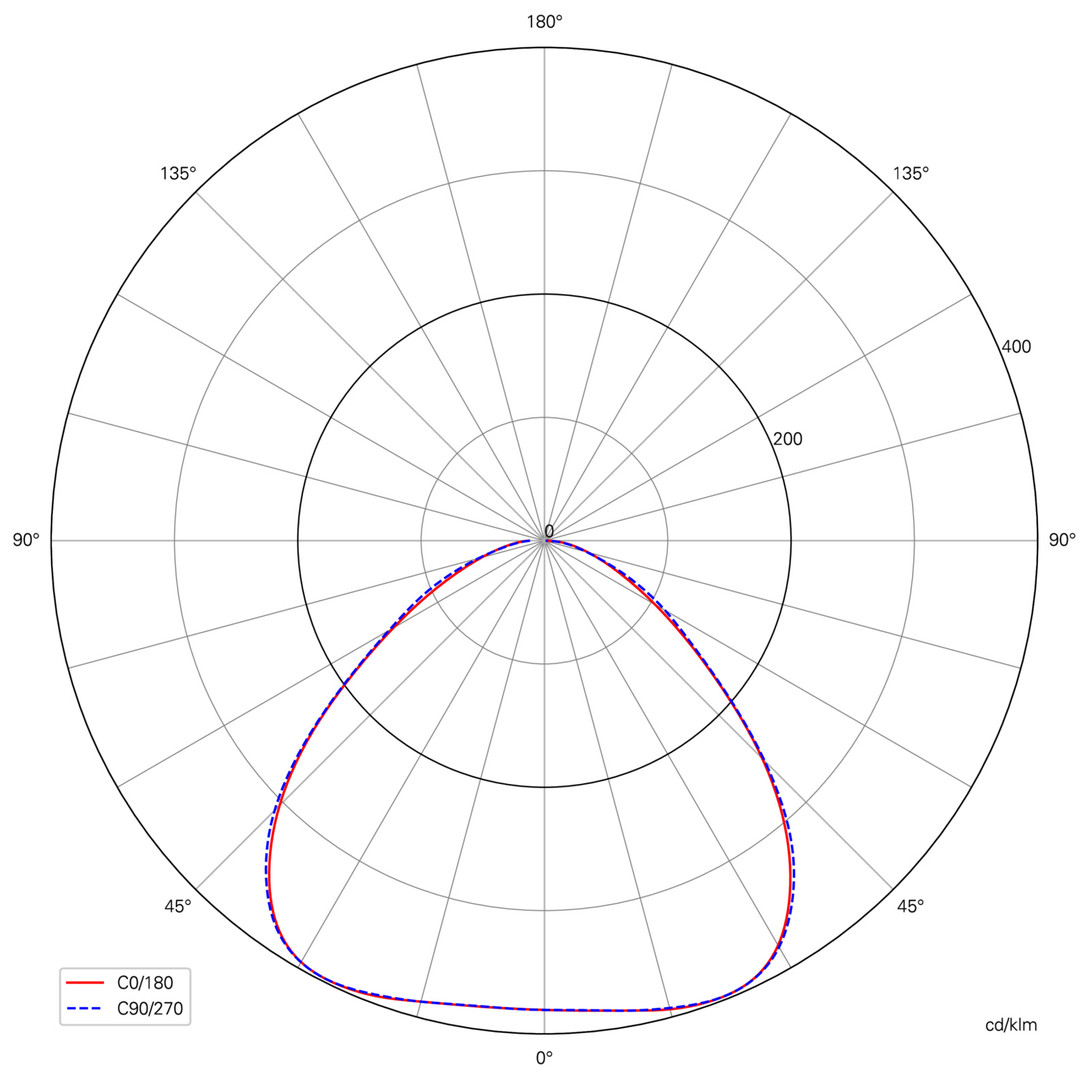

Rated Angle of Reflection	120 Degree
badge_neu_en	false
badge_ausgelistet_en	false
Product state	Stock Item
Product Type	LED panel
badge_sale_en	false
eShop visible	yes
UGR	22
Dimmable	No
Motion Detector	No
Length	620 mm
Width	620 mm
Height	25 mm
Rated Input Voltage	200-264 V/AC
Frequency	50 / 60 Hz
Voltage range DC	176-280 V/DC
Voltage range emergency lighting	176-280 V/DC
EOFI	100 %
Power Selectable	20.0 W
IP Protection Class	IP 50
IK Protection Class	IK03
Light Source	LED
Luminous Efficiency	134.4 lm/W
Light direction	Below
Colour Consistency	3 SDCM
Life Time L70 / B50	75000 h
Life Time L80 / B10	50000 h
Life Time L80 / B50	60000 h
Switching Cycles	100000 PCS
Number of Channels	1
Number of Cable Entries	2 PCS
Product weight	1735 g
Connection Type	Clamp
Through Wiring possible	Yes
Power Supply Unit incl.	Yes
Power Supply Unit Changeable	Yes by technician
Energieeffizenzklasse	D
Power Consumption	32 kWh/1000h
Rated Current Selectable in mA	525 mA
Inrush Current max.	19.2 A / 209 µs
Power Factor	0.9
Max. units per MCB B10	23 PCS
Max. units per MCB B16	38 PCS
Max. units per MCB C10	30 PCS
Max. units per MCB C16	48 PCS
Working Temperature	-10 to 40 °C
Storage Temperature	-20 to 50 °C
Mounting Type	Installation mounting
Mounting Location	Inside
Mounting Area	Ceiling installation
Functions	Emergency power capable

Mindestbestellmenge	1
Bestellschritt	1

Mindestbestellmenge	1
Bestellschritt	1

Einlegepanel - Basic Flex 625x625 mm, 32 W, 3000/4000/6000 K, Weiß Artikelnummer: 100142

Einlegepanel - LED Panel Flex 625x625 mm, 40 W, 3000/4000/5500 K, Weiß
