Zu diesem Artikel gibt es einen Nachfolger:
Merkmale
| Housing Material | Aluminium |
| Housing Color, Color System | Traffic white RAL 9016 |
| Housing Color | White |
| Lightcolor | Warm white/neutral white/cold white |
| Color Temperature | 3000/4000/6000 K |
| CRI (Ra) | 90 |
| Rated Luminous Flux | 5300/6000/5700 lm |
| Warranty (years) | 5 |
| Rated Angle of Reflection | 120 Degree |
| badge_neu_en | false |
| badge_ausgelistet_en | false |
| Product state | Stock Item |
| Product Type | LED panel |
| badge_sale_en | false |
| eShop visible | yes |
| UGR | 22 |
| Dimmable | Yes |
| Control | Dimmable via optional power supply unit |
| Motion Detector | No |
| Length | 1240 mm |
| Width | 620 mm |
| Height | 10 mm |
| Rated Input Voltage | 33-38 V/DC |
| Power Selectable | 58.0 W |
| Protection Class | Protection class III/safety extra-low voltage |
| IP Protection Class | IP 40 |
| IK Protection Class | IK03 |
| Light Source | LED |
| Luminous Efficiency | 110.7 lm/W |
| Light direction | Below |
| Colour Consistency | 6 SDCM |
| Life Time L70 / B50 | 75000 h |
| Life Time L80 / B10 | 50000 h |
| Life Time L80 / B50 | 60000 h |
| Switching Cycles | 100000 |
| Number of Channels | 1 |
| Product weight | 5260 g |
| Connection Type | Open cables |
| Power Supply Unit incl. | No |
| Operating Mode | Constant current |
| Energieeffizenzklasse | F |
| Power Consumption | 58 kWh/1000h |
| Rated Current in mA | 1500 mA |
| Working Temperature | -10 to 40 °C |
| Storage Temperature | -10 to 50 °C |
| Mounting Type | Installation mounting |
| Mounting Location | Inside |
| Mounting Area | Ceiling installation |
Verkaufsdaten
| Mindestbestellmenge | 1 |
| Bestellschritt | 1 |
Abbildung ähnlich

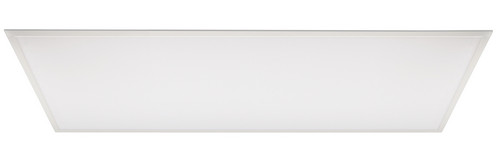

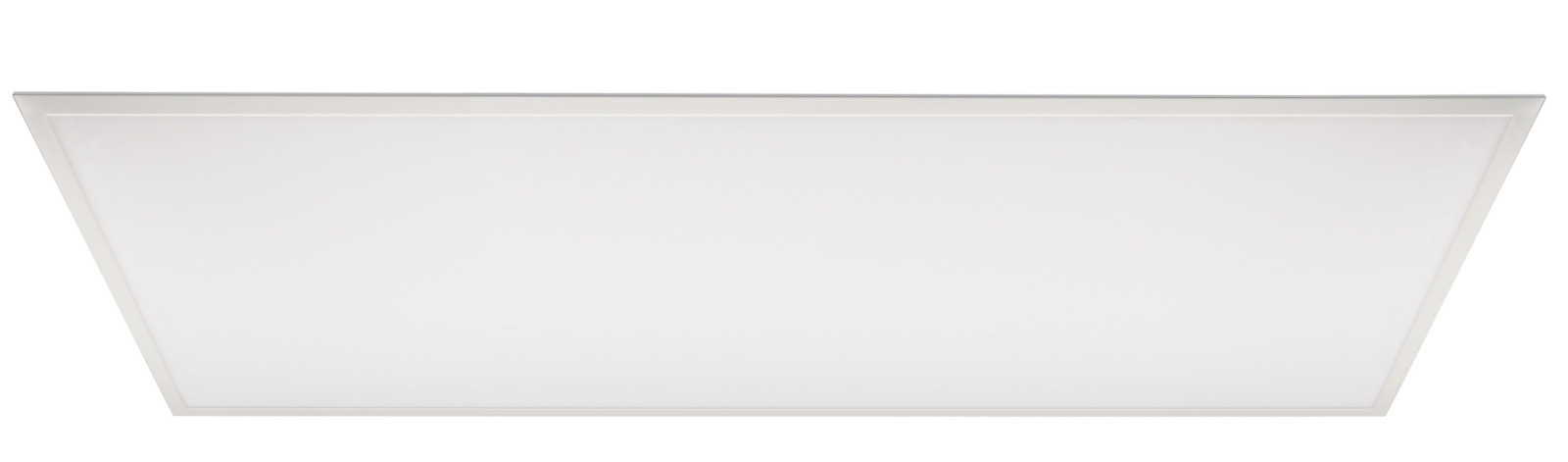

Einlegepanel - LED Panel PRO 625x1250 mm, 45 W, 4000 K, Weiß
100057
4042943156525
Auslaufartikel
191,95 EUR
(exkl. MwSt.)
je 1
Funktionen
Verkaufsdaten
| Mindestbestellmenge | 1 |
| Bestellschritt | 1 |
Merkmale
| Housing Material | Aluminium |
| Housing Color, Color System | Traffic white RAL 9016 |
| Housing Color | White |
| Lightcolor | Neutral white |
| Color Temperature | 4000 K |
| CRI (Ra) | 90 |
| Rated Luminous Flux | 4800 lm |
| Rated Angle of Reflection | 110 Degree |
| Pendulum Length max. | 1 mm |
| badge_neu_en | false |
| badge_ausgelistet_en | true |
| Product Type | LED panel |
| badge_sale_en | false |
| eShop visible | yes |
| Dimmable | Yes |
| Control | Dimmable via optional power supply unit |
| Motion Detector | No |

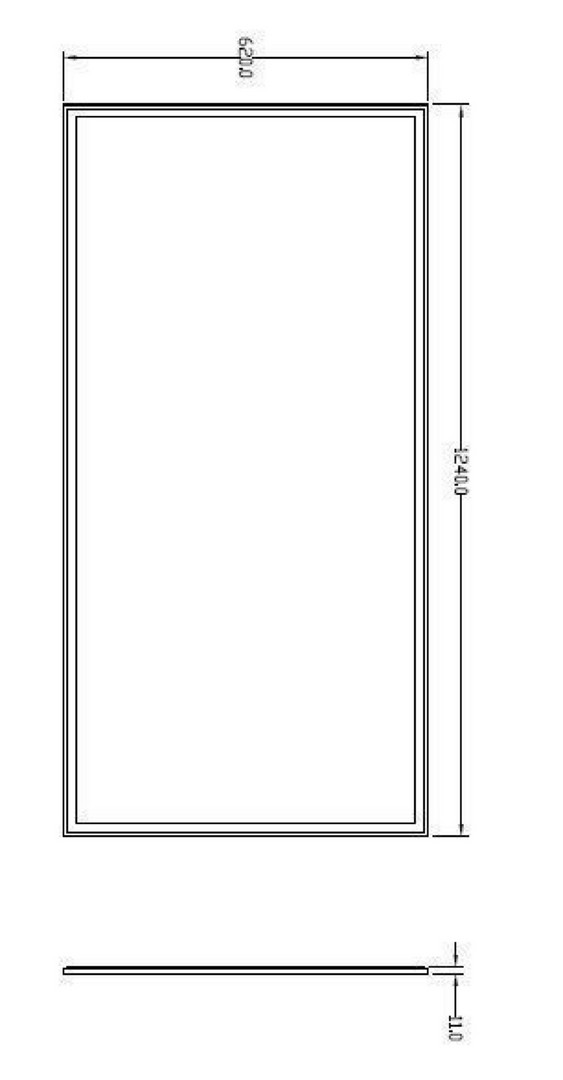

| Length | 1240 mm |
| Width | 620 mm |
| Height | 11 mm |
| Rated Input Voltage | 35 V/DC |
| Rated Input | 45.0 W |
| Protection Class | Protection class III/safety extra-low voltage |
| IP Protection Class | IP 20 |
| Light Source | LED |
| Luminous Efficiency | 106.7 lm/W |
| Light Distribution | Symmetric |
| Light direction | Below |
| Colour Consistency | 6 SDCM |
| Life Time L70 / B50 | 30000 h |
| Switching Cycles | 100000 |
| Product weight | 7400 g |
| Secondary Connection | Open cables |
| Power Supply Unit incl. | No |
| Operating Mode | Constant current |
| Power Consumption | 45 kWh/1000h |
| Rated Current in mA | 1300 mA |
| Power Factor | 0.97 |
| Working Temperature | -5 to 40 °C |
| Storage Temperature | -10 to 40 °C |
| Mounting Type | Installation mounting |
| Mounting Location | Inside |
| Mounting Area | Ceiling installation |
| Scope of Delivery | 1x safety kit 1x cable suspension |

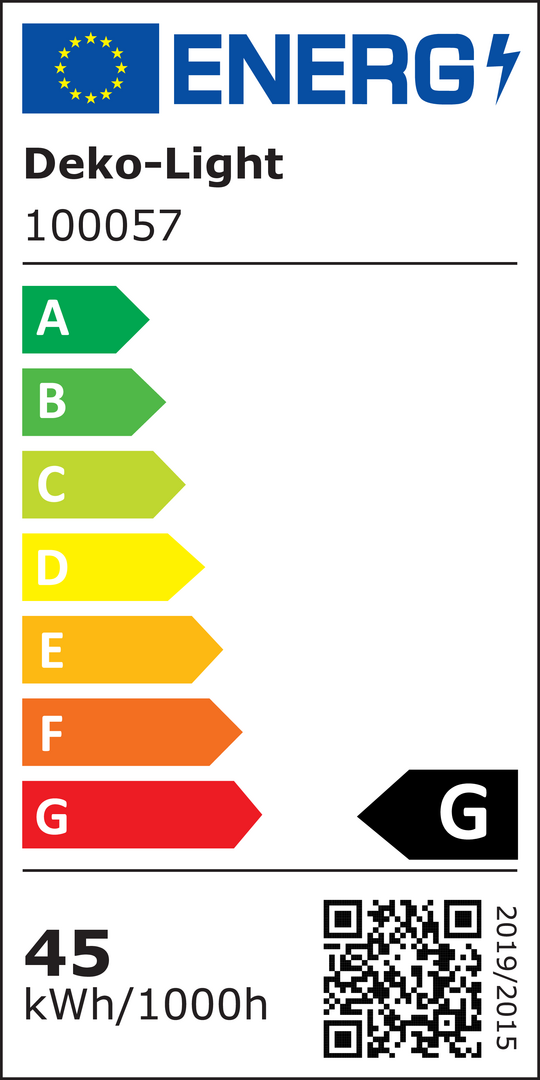

| Energieeffizenzklasse | G |
