Abbildung ähnlich

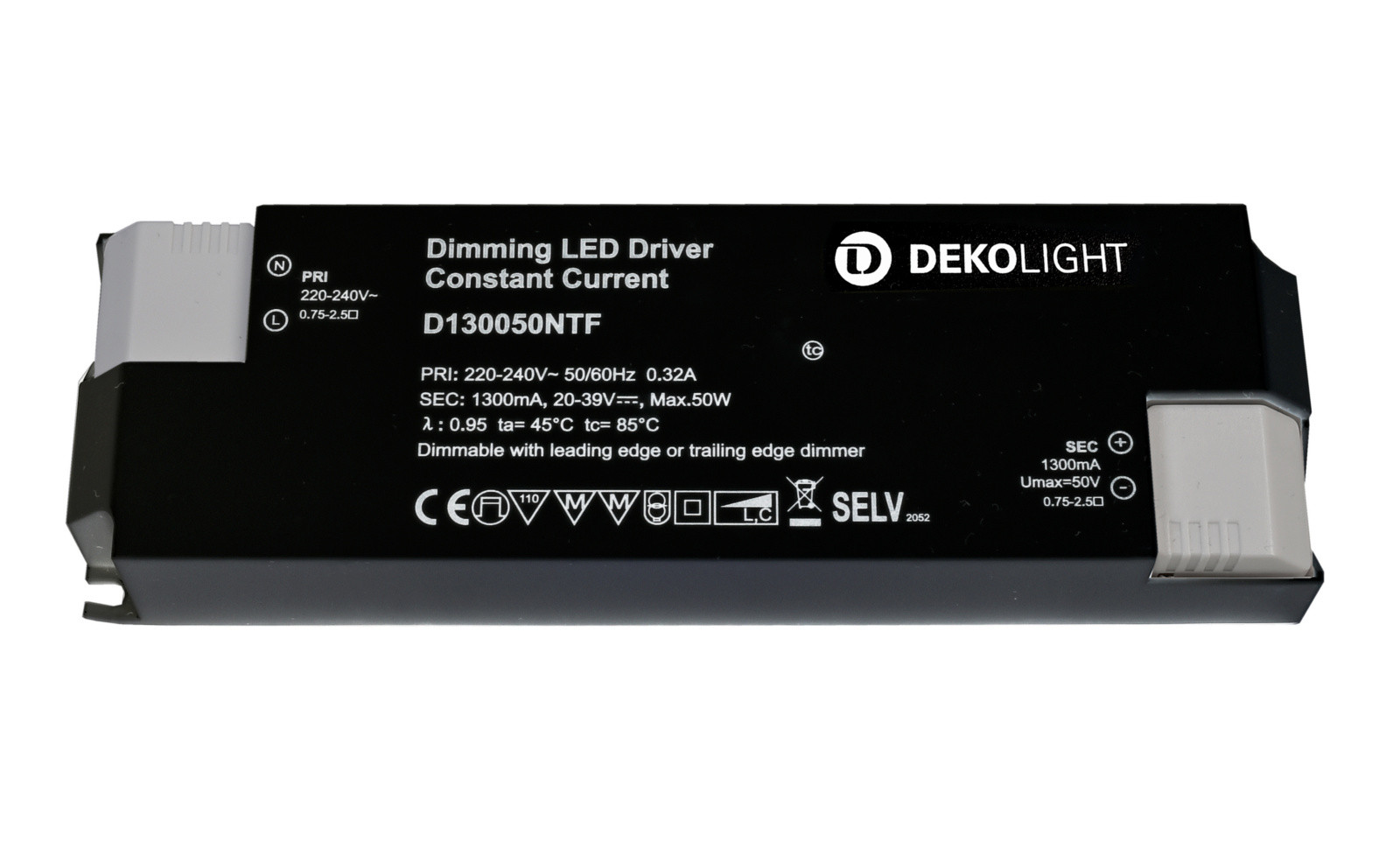

Netzgerät (CC, DC) dimmbar - BASIC, DIM, CC, D130050NTF/50W

Artikelnummer: 862211 EAN: 4042943168177

41,95 EUR (exkl. MwSt.)

je 1

Mindestbestellmenge	1
Bestellschritt	1

Rated Input Voltage	220-240 V/AC
Frequency	50 / 60 Hz
Operating Mode	Constant current
Output Voltage	20-39 V/DC
Output Current in mA	1300 mA
Warranty (years)	5
badge_neu_en	false
badge_ausgelistet_en	false
Product state	Stock Item
Product Type	Power supply unit (CC, DC) dimmable
badge_sale_en	false
eShop visible	yes
Number of Channels	1
Power	25.0-50.0 W
Power min.	25.0 W
Power max.	50.0 W
Dimmable	Yes
Control	Trailing-edge dimmer
Length	166 mm
Width	52 mm
Height	25 mm
Protection Class	Protection class II/protective insulation
IP Protection Class	IP 20
Housing Material	Plastic
Housing Color	Black
Inrush Current max.	5 A / 300 µs
Capacitive Load	35.58 nF
Power Factor	0.98
Max. units per MCB B10	31
Max. units per MCB B16	50
Max. units per MCB C10	31
Max. units per MCB C16	50
Connection Type	Clamp
Product weight	236 g
Working Temperature	-20 to 45 °C
Storage Temperature	-20 to 70 °C
Mounting Location	Inside
Functions	Short-circuit proof
Life Time	50000 h
