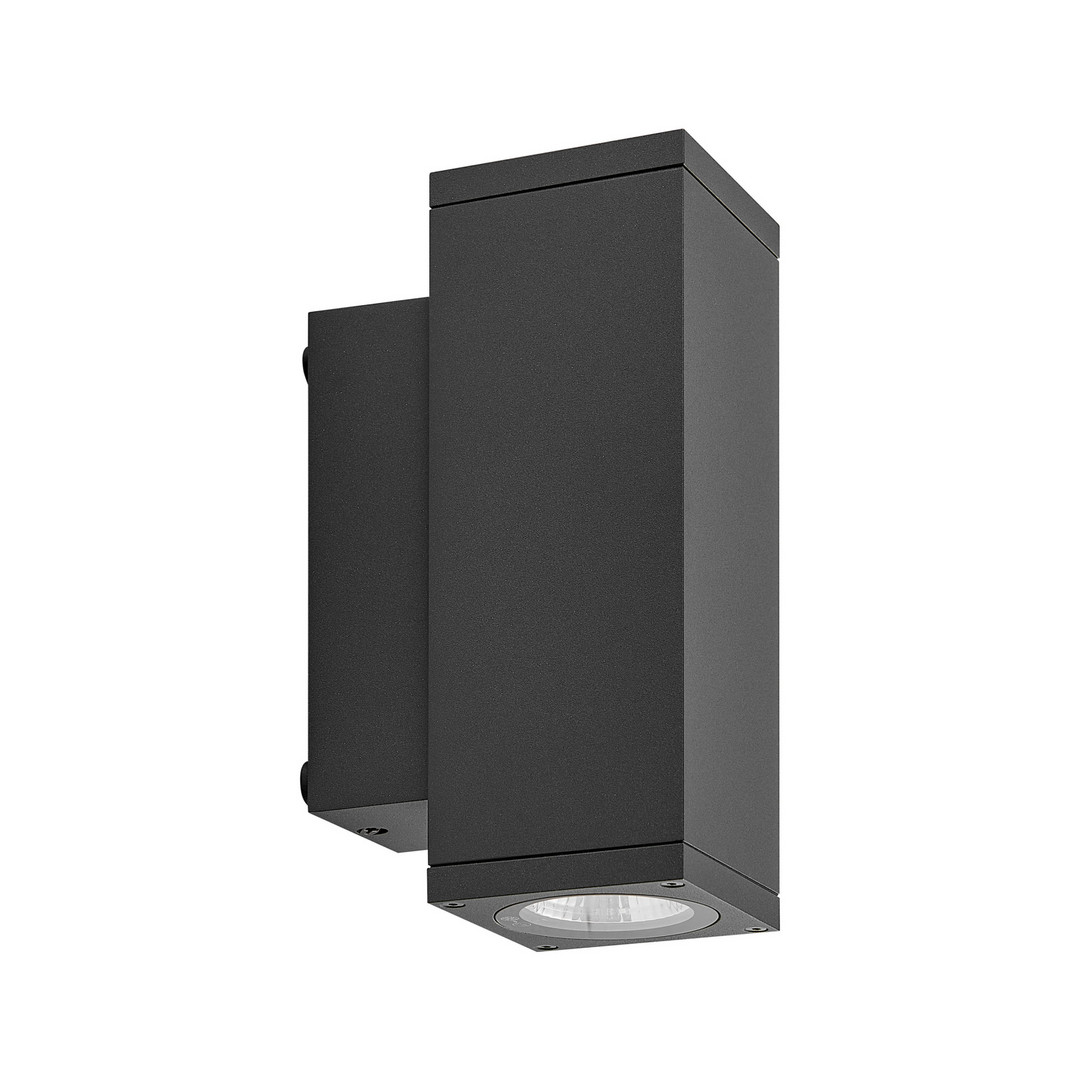

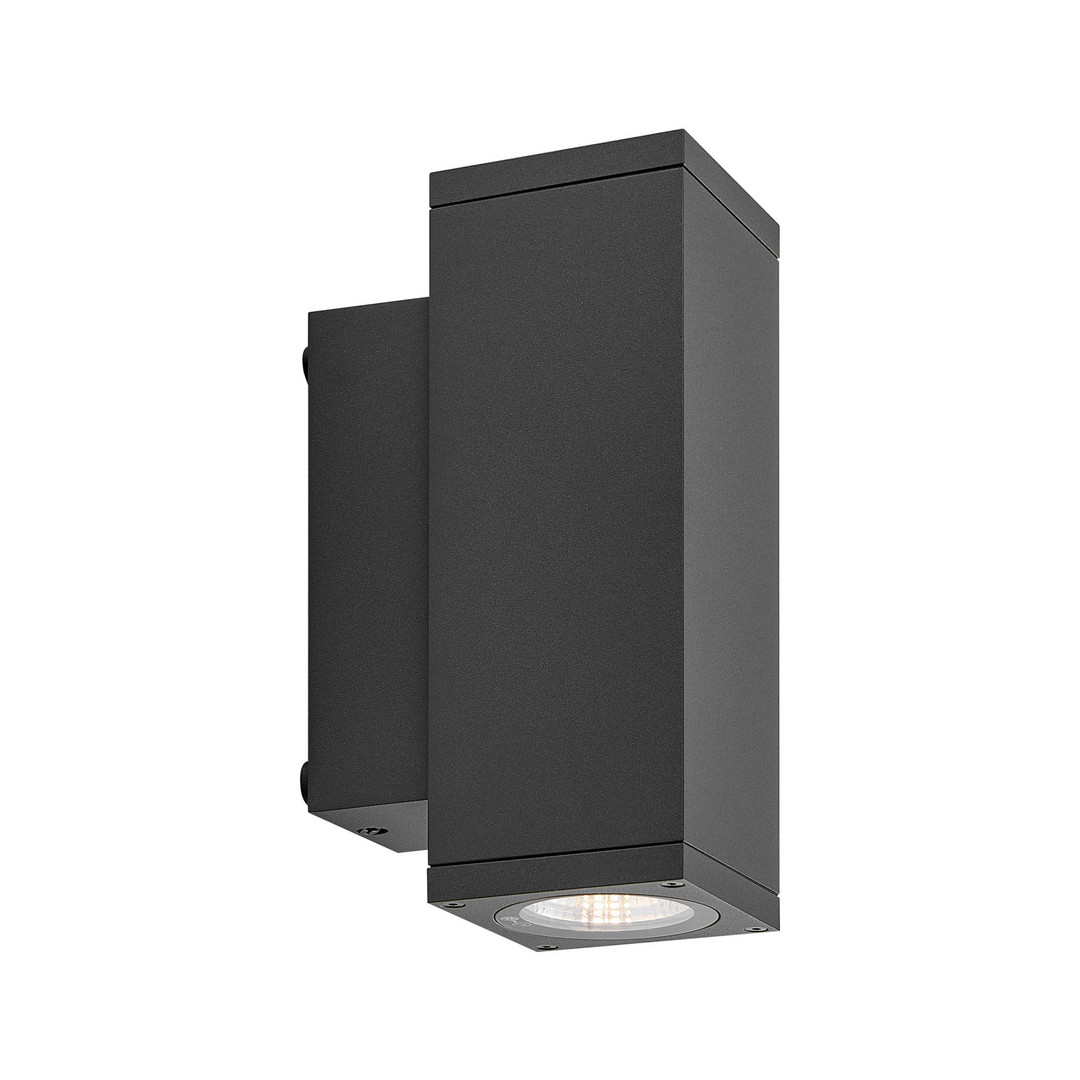

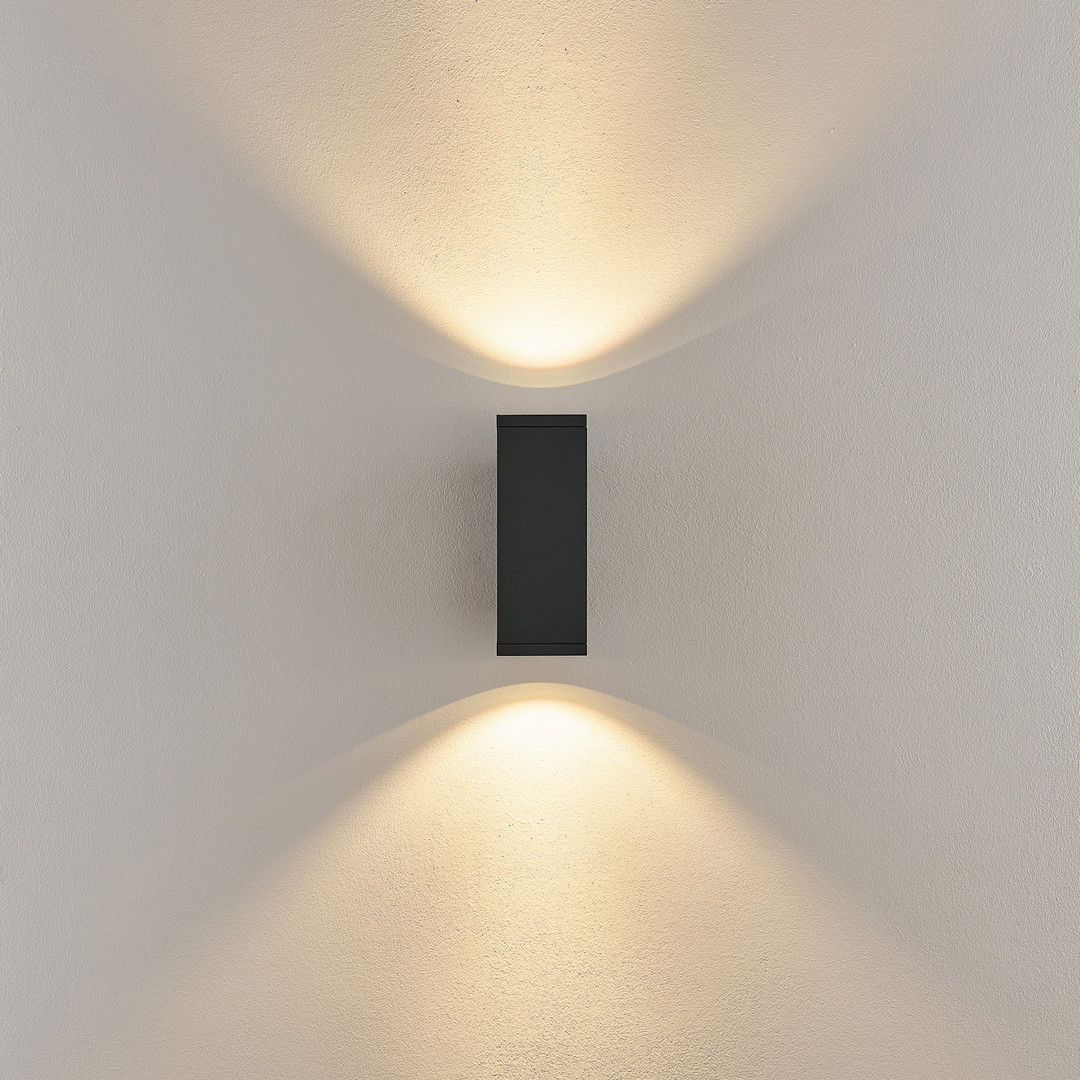

Wandaufbauleuchte - ShoreLine Pro Square Up+Down, 7,5 W, 3000/4000 K, DIM, Dunke

Artikelnummer: 731209 EAN: 4042943181466

167,95 EUR (exkl. MwSt.)

je 1

Mindestbestellmenge	1
Bestellschritt	1

Housing Material	Aluminium
Housing Color, Color System	Graphite grey RAL 7024
Housing Color	Dark grey
Lightcolor	Neutral white/warm white

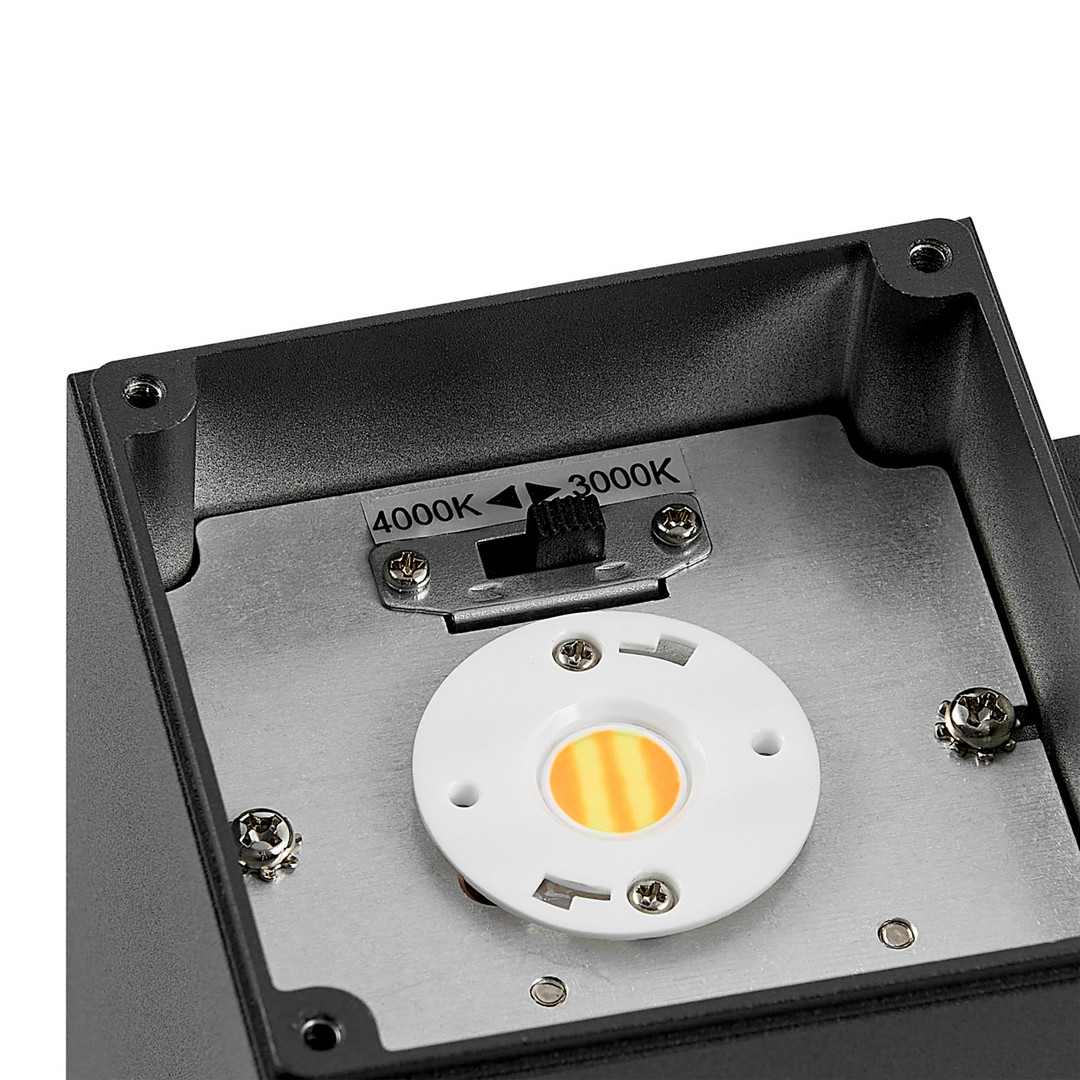

Color Temperature	3000/4000 K
CRI (Ra)	90
Rated Luminous Flux	700/780 lm
Warranty (years)	5
Inrush Current max.	5 A / 300 µs
Rated Angle of Reflection	30 Degree
badge_neu_en	false
badge_ausgelistet_en	false
Product state	Stock Item
Product Type	Surface-mounted wall light
badge_sale_en	false
eShop visible	yes
UV resistance	Yes
Dimmable	Yes
Control	Trailing-edge dimmer
Motion Detector	No
Length	70 mm
Width	70 mm
Height	186 mm
Base length	43 mm
Base width	55 mm
Base height	130 mm
Rated Input Voltage	220-240 V/AC
Frequency	50 / 60 Hz
Rated Input	7.5 W
Voltage range DC	176-250 V/DC
Protection Class	Protection class I/protective grounding
IP Protection Class	IP 65
IK Protection Class	IK08
Light Source	LED
Light direction	Top
Colour Consistency	3 SDCM
Life Time L70 / B50	50000 h
Switching Cycles	100000

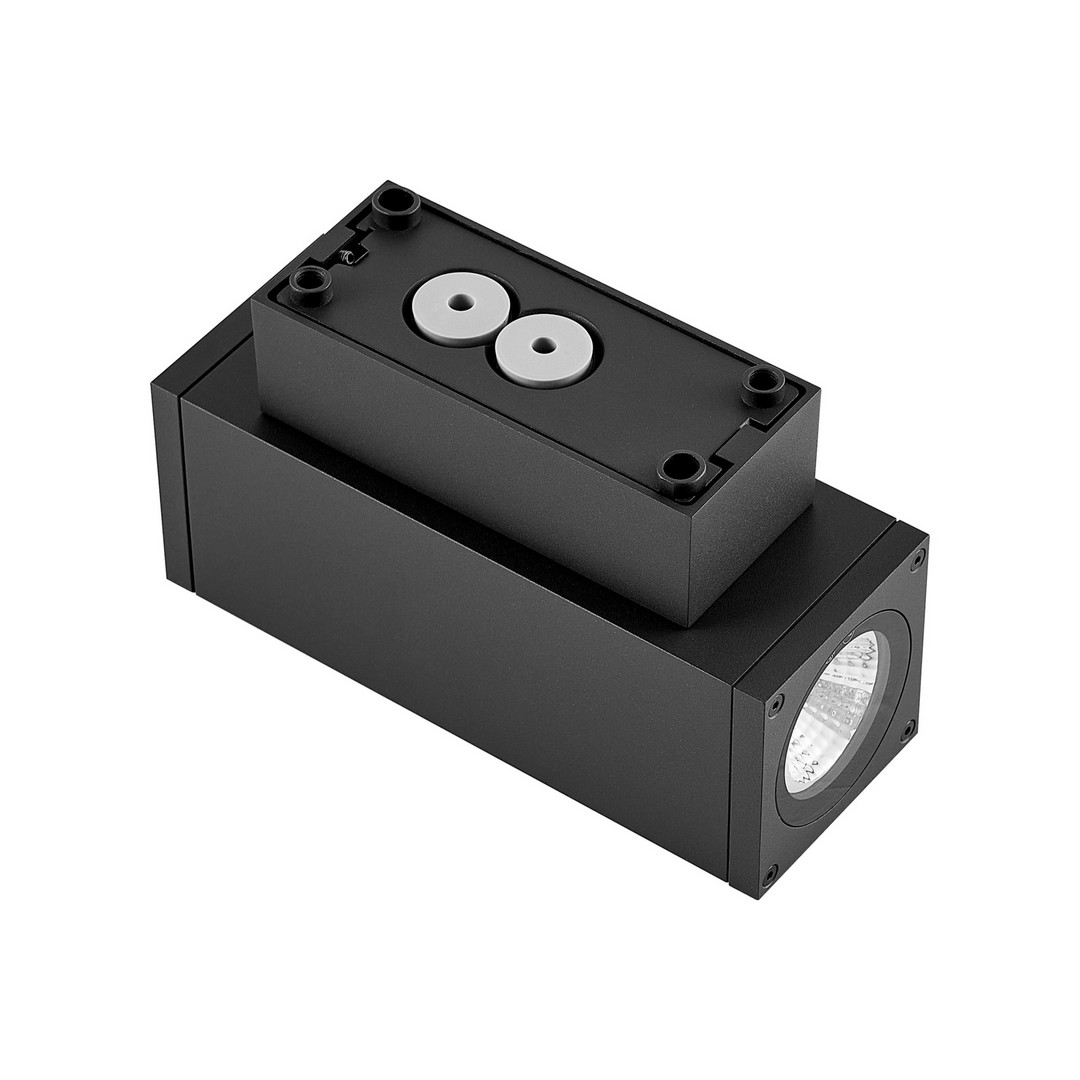

Number of Cable Entries	2 PCS
Product weight	1113 g

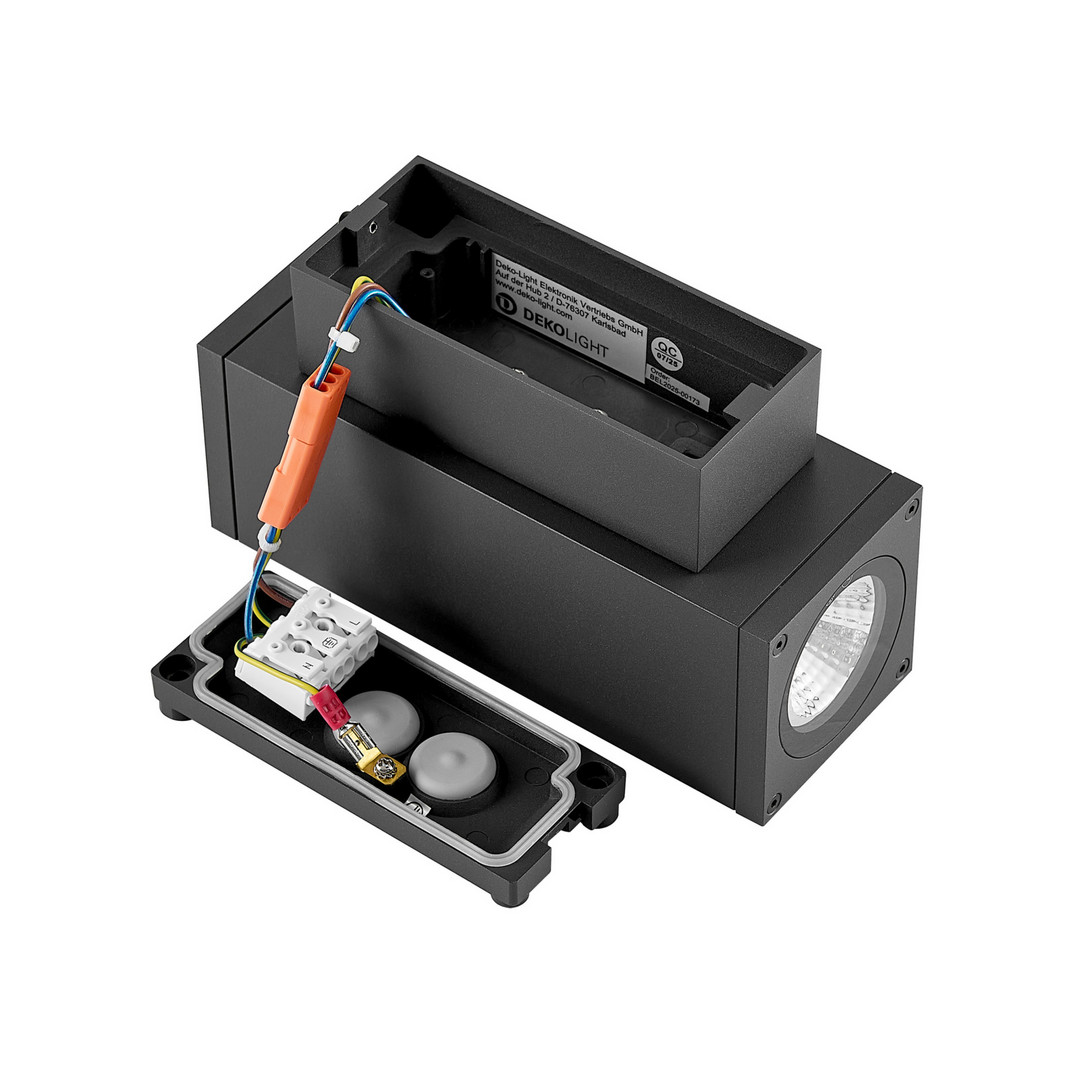

Connection Type	Clamp
Through Wiring possible	Yes
Power Supply Unit incl.	Yes
Power Supply Unit Changeable	Yes by technician
Power Consumption	8 kWh/1000h
Power Factor	0.9
Max. units per MCB B10	35
Max. units per MCB B16	56
Max. units per MCB C10	74
Max. units per MCB C16	118
Working Temperature	-20 to 45 °C
Surface Temperature max.	36 °C
Storage Temperature	-20 to 60 °C
Mounting Type	Top mounting

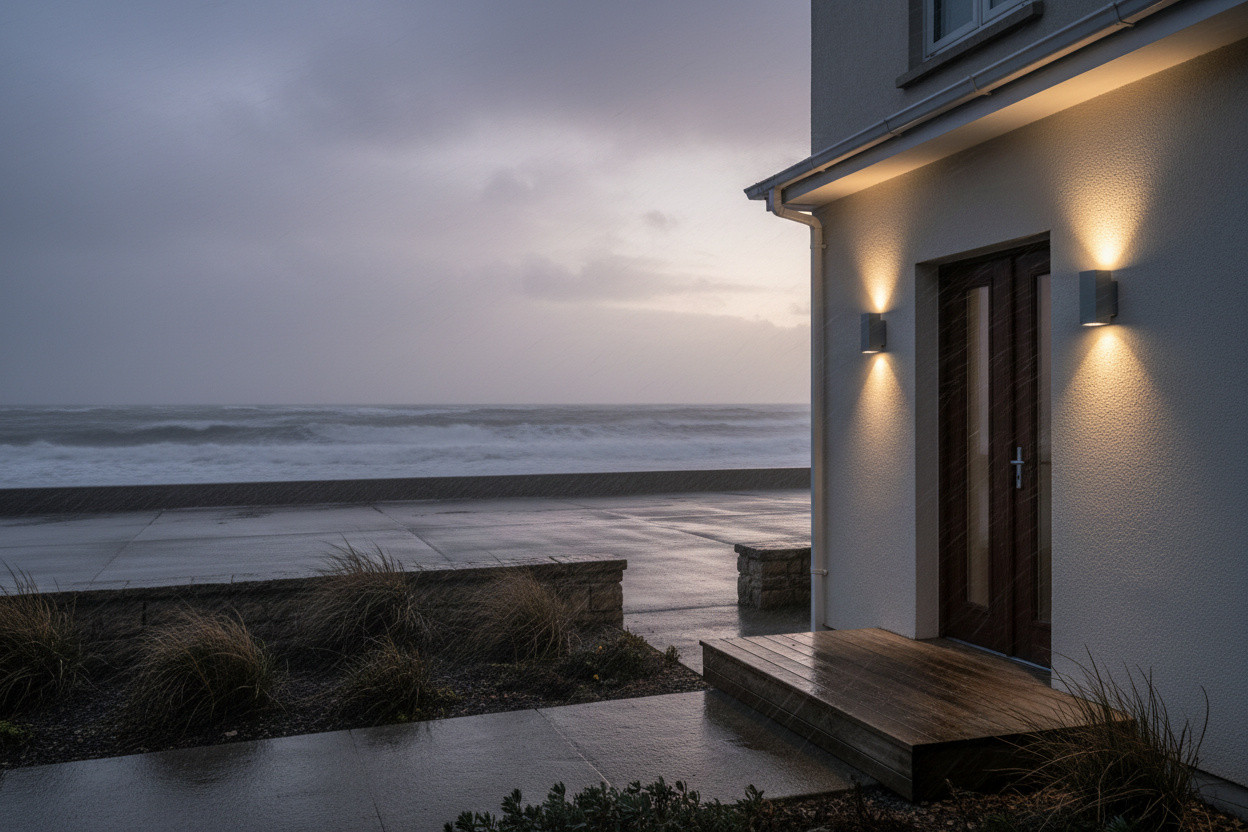

Mounting Location	Outside
Mounting Area	Wall installation
Functions	Seawater resistant
Scope of Delivery	1x installation material
UGR	19
