Housing Material	Aluminium
Housing Color, Color System	Signal white RAL 9003
Housing Color	White
Lightcolor	Neutral white/warm white

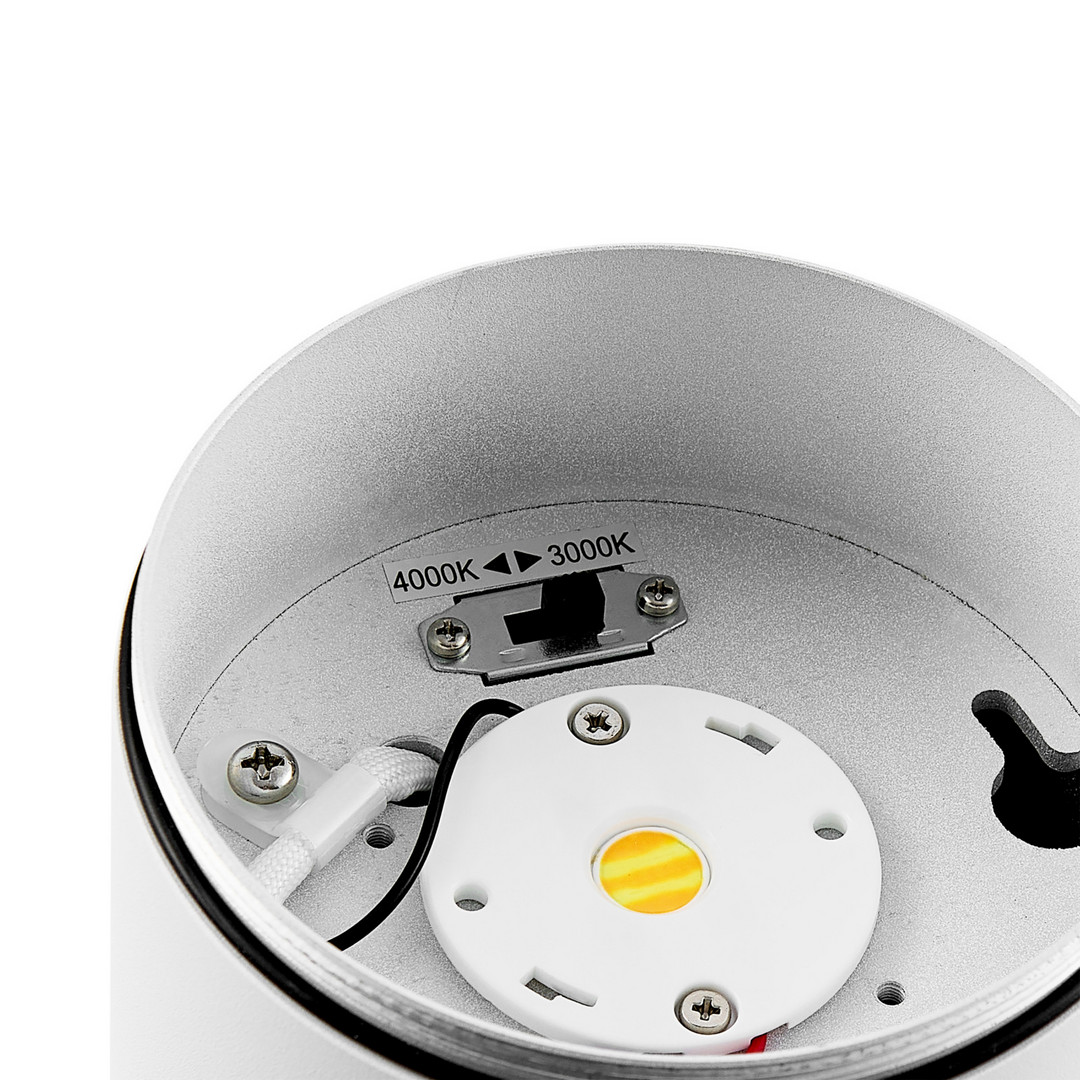

Color Temperature	3000/4000 K
CRI (Ra)	92
Rated Luminous Flux	900/1000 lm
Warranty (years)	5
Inrush Current max.	5 A / 100 µs

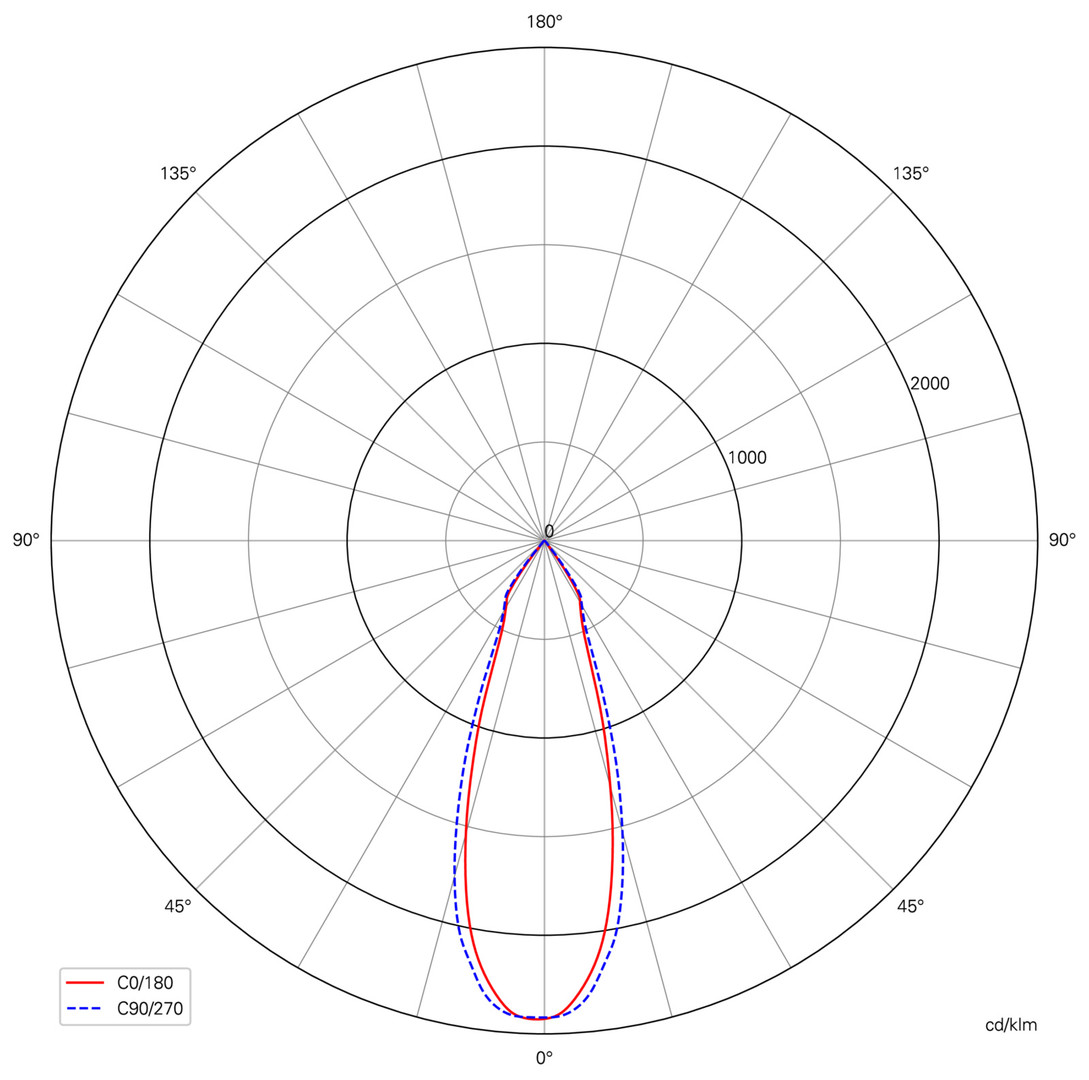

Rated Angle of Reflection	36 Degree
badge_neu_en	false
badge_ausgelistet_en	false
Product state	Stock Item

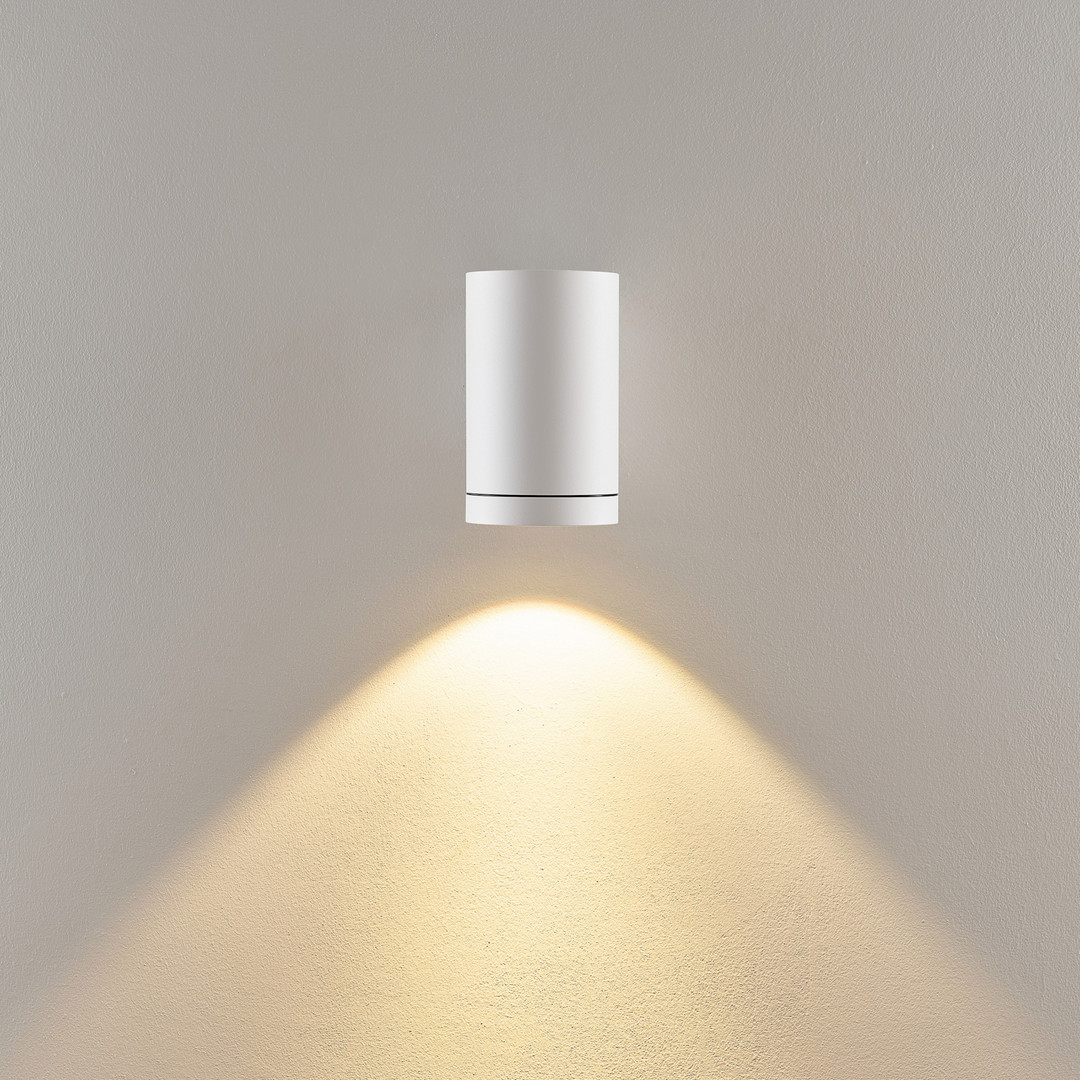

Product Type	Surface-mounted wall light
badge_sale_en	false
eShop visible	yes
UV resistance	Yes
Dimmable	Yes
Control	Leading-edge dimmer
Motion Detector	No
Height	163 mm
Diameter	100 mm
Base length	40 mm
Base width	80 mm
Base height	130 mm
Rated Input Voltage	220-240 V/AC
Frequency	50 / 60 Hz
Rated Input	12.0 W
Voltage range DC	176-250 V/DC
Protection Class	Protection class I/protective grounding
IP Protection Class	IP 65
IK Protection Class	IK08
Light Source	LED

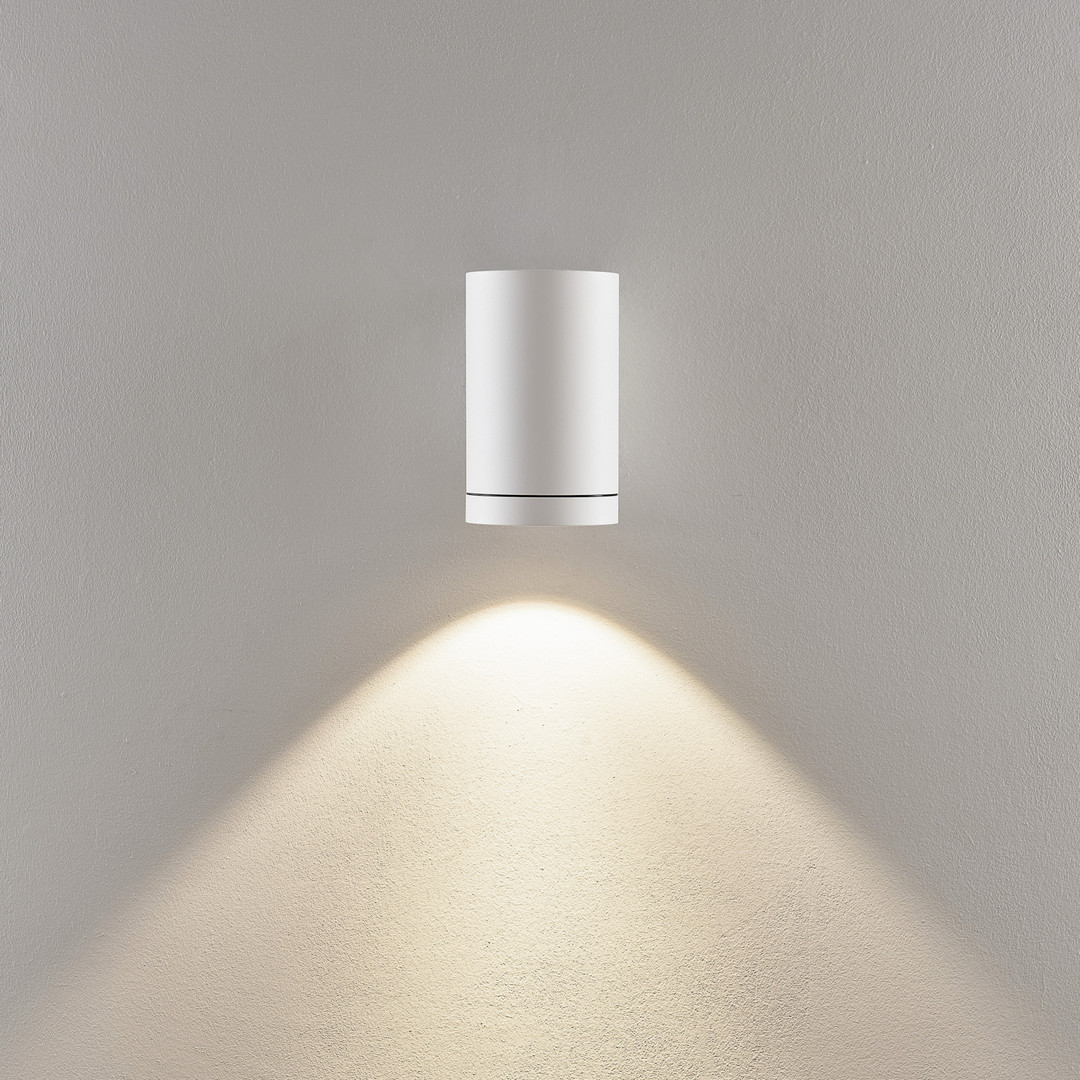

Light direction	Below
Colour Consistency	3 SDCM
Life Time L70 / B50	50000 h
Switching Cycles	100000

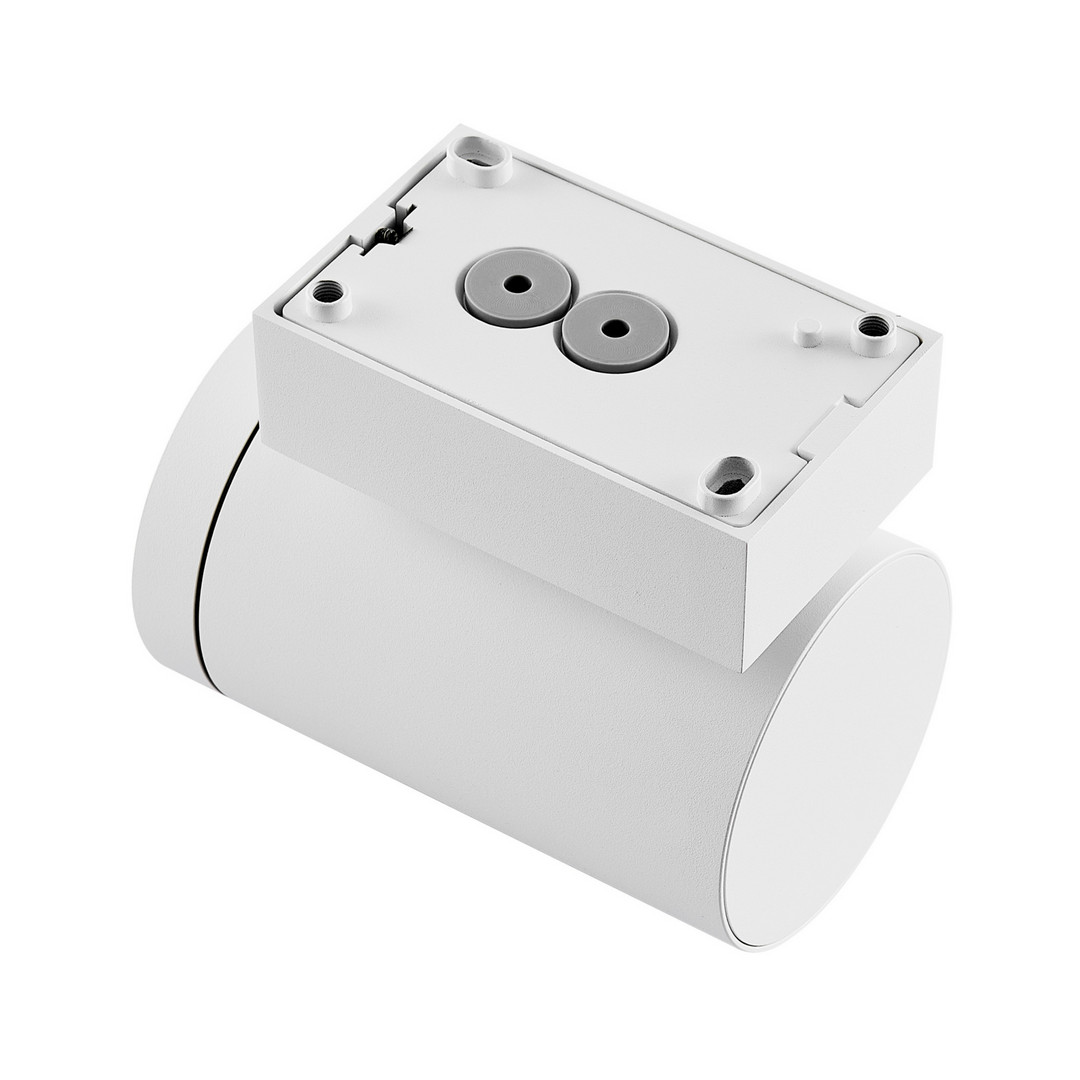

Number of Cable Entries	2 PCS
Product weight	1431 g

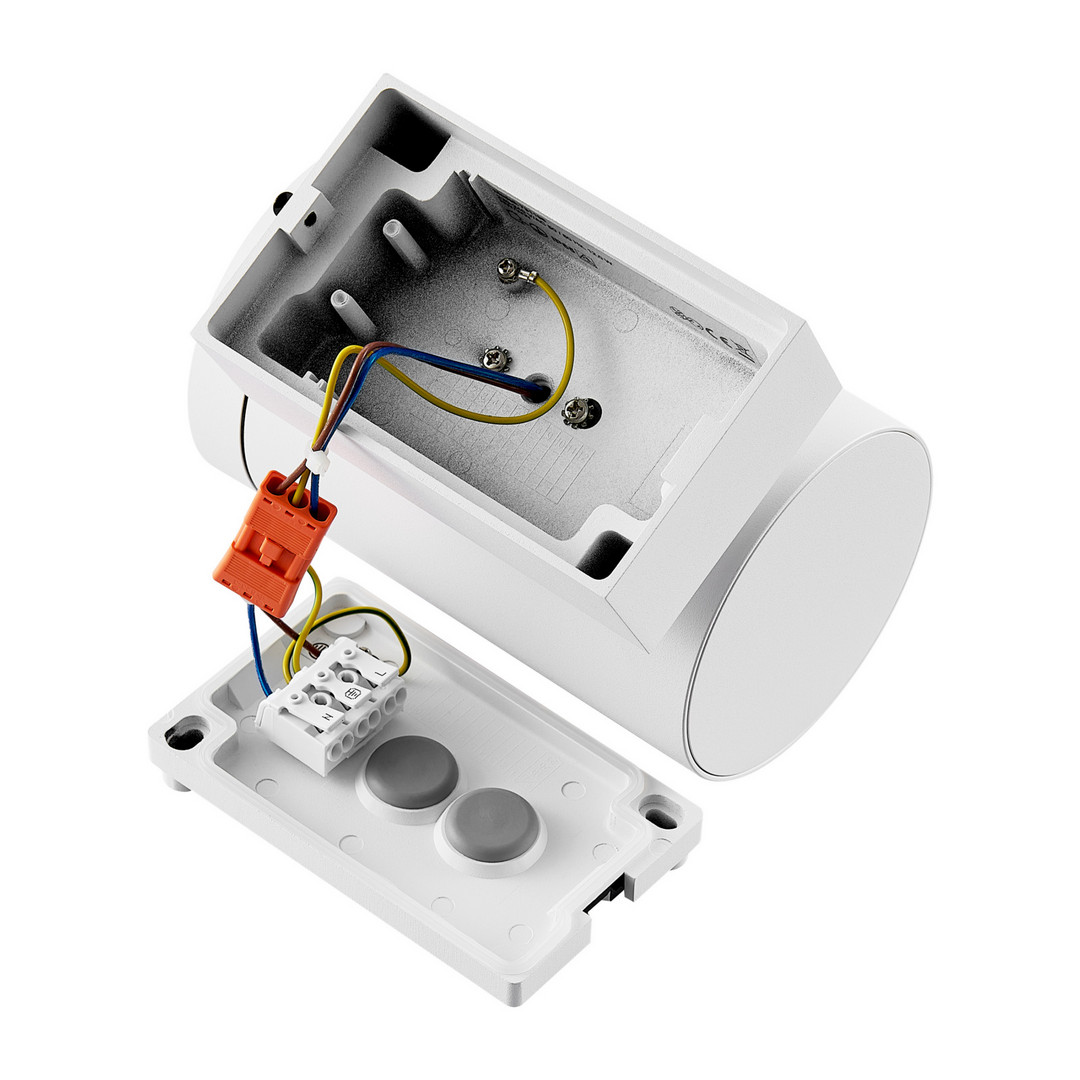

Connection Type	Clamp
Through Wiring possible	Yes
Power Supply Unit incl.	Yes
Power Supply Unit Changeable	Yes by technician
Power Consumption	12 kWh/1000h
Power Factor	0.95
Max. units per MCB B10	140
Max. units per MCB B16	224
Max. units per MCB C10	142
Max. units per MCB C16	228
Working Temperature	-20 to 45 °C
Surface Temperature max.	39.2 °C
Storage Temperature	-20 to 45 °C
Mounting Type	Top mounting
Mounting Location	Outside
Mounting Area	Wall installation
Functions	Nightsaver
Scope of Delivery	1x installation material
UGR	21

Mindestbestellmenge	1
Bestellschritt	1

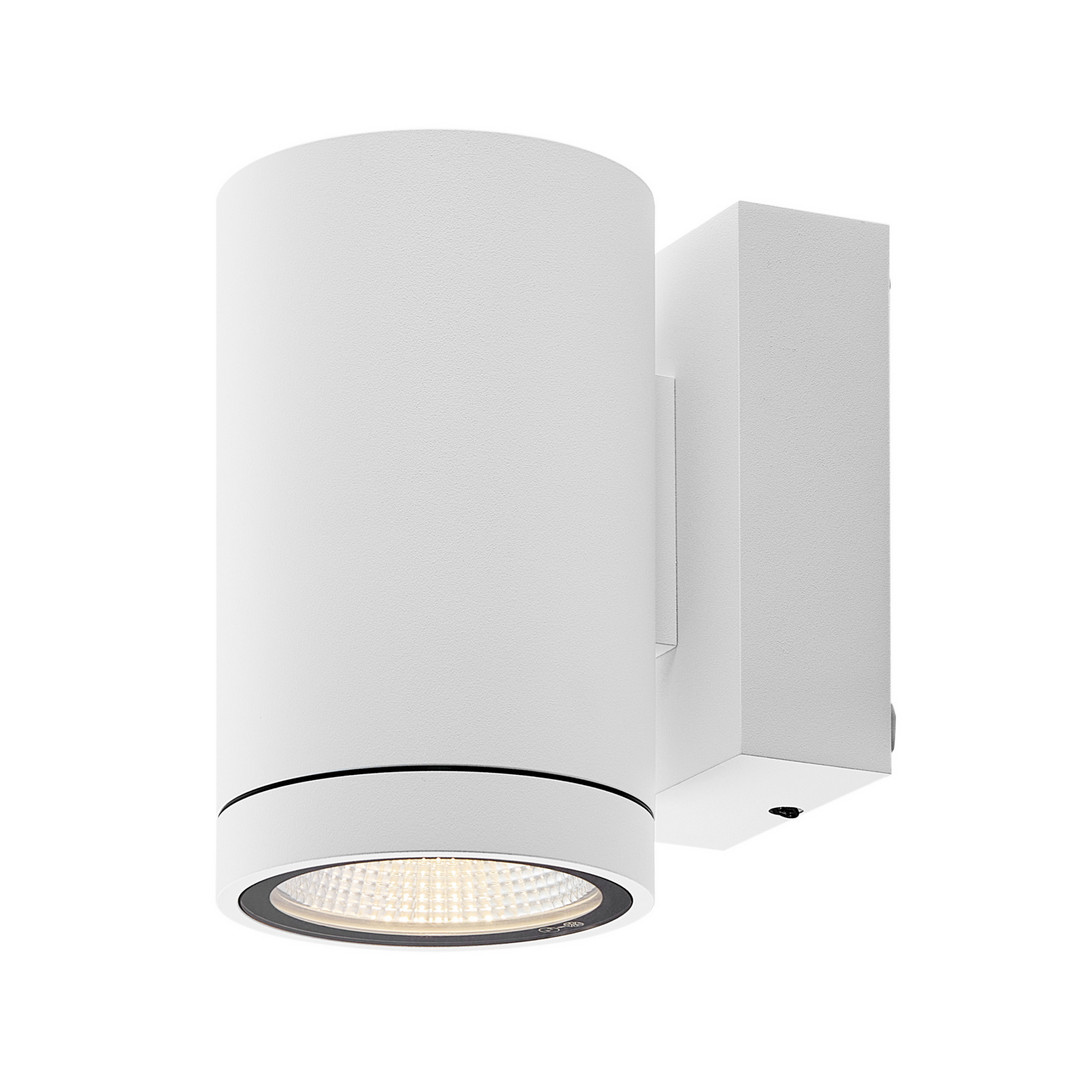

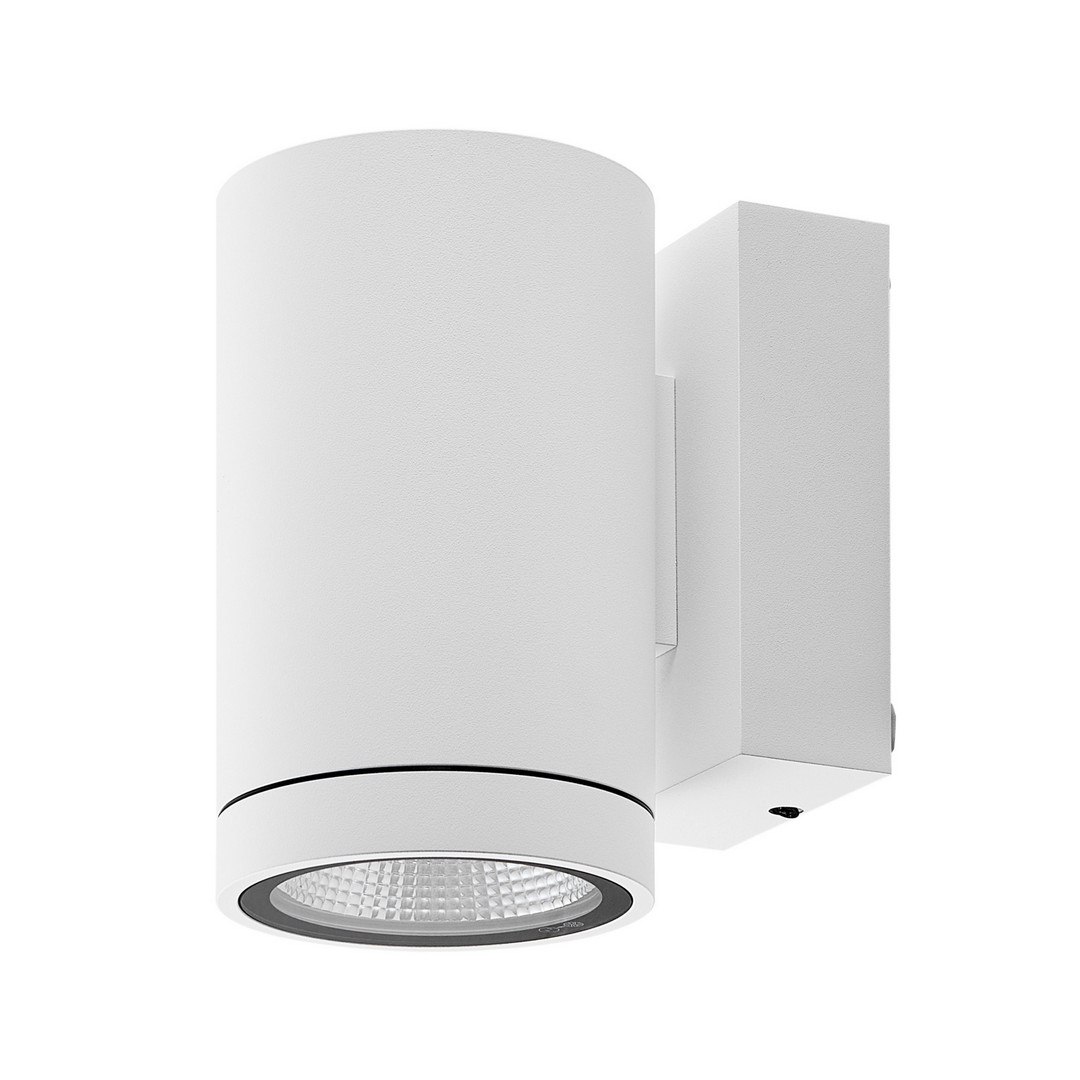

Wandaufbauleuchte - ShoreLine Pro Round, 12 W, DIM, 3000/4000 K, weiß
