Housing Material	Aluminium
Housing Color, Color System	Basalt grey RAL 7012
Housing Color	Dark grey
Lightcolor	Warm white (WW)
Color Temperature	3000 K
CRI (Ra)	80
Rated Luminous Flux	1230 lm
Warranty (years)	5
Rated Angle of Reflection	100 Degree
badge_neu_en	false
badge_ausgelistet_en	false
Product state	Stock Item
Product Type	Surface-mounted wall light
badge_sale_en	false
eShop visible	yes
UV resistance	Yes
Dimmable	No
Motion Detector	No

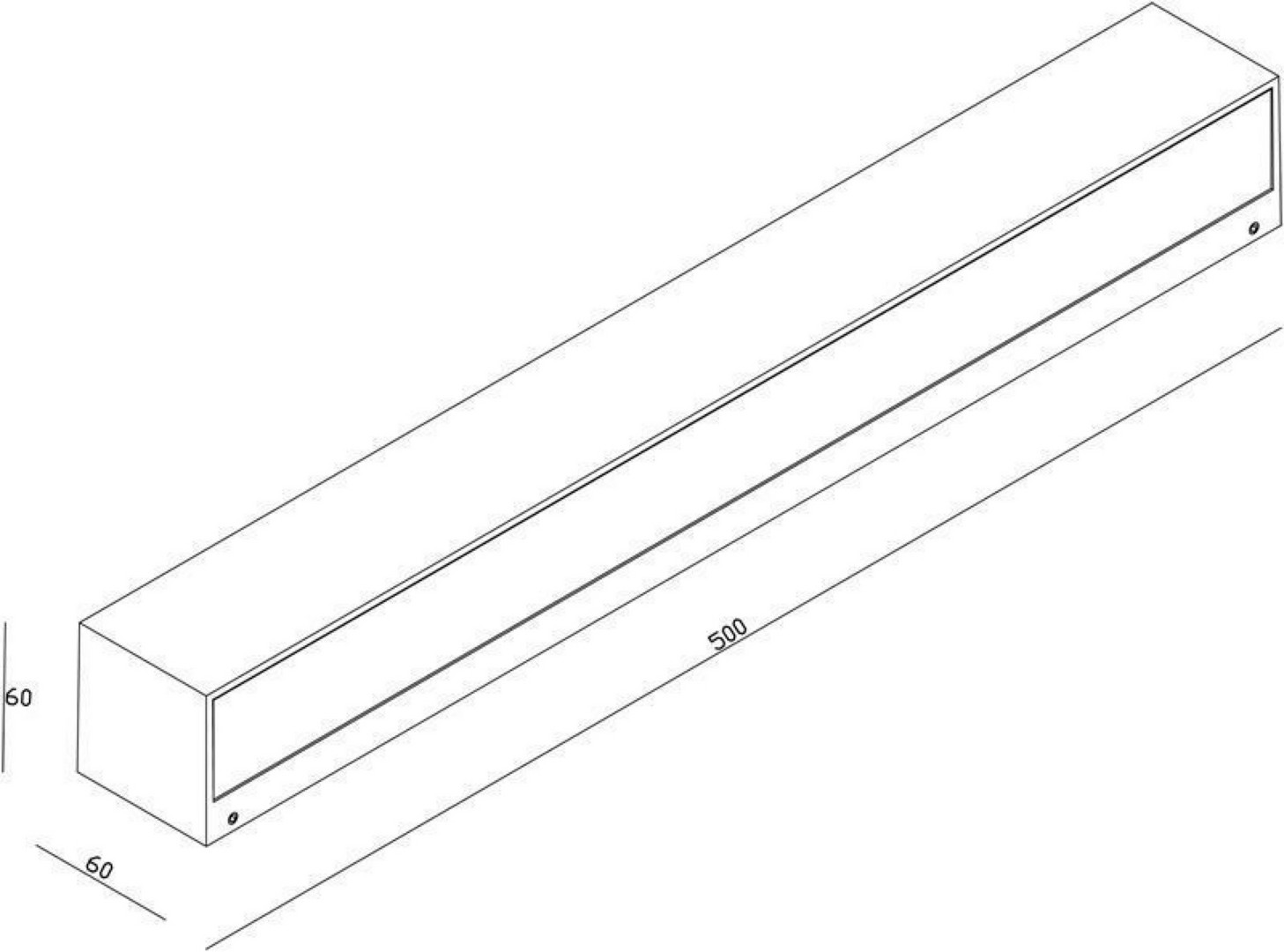

Length	500 mm
Width	60 mm
Height	60 mm
Base length	493 mm
Base width	53 mm
Base height	15 mm
Rated Input Voltage	220-240 V/AC
Frequency	50 / 60 Hz
Rated Input	14.0 W
Protection Class	Protection class I/protective grounding
IP Protection Class	IP 65
IK Protection Class	IK05
Light Source	LED
Luminous Efficiency	87.9 lm/W
Light direction	Below
Colour Consistency	6 SDCM
Life Time L70 / B50	30000 h
Switching Cycles	10000
Product weight	2010 g
Connection Type	Clamp
Power Supply Unit incl.	Yes
Power Supply Unit Changeable	Yes by technician
Power Consumption	14 kWh/1000h
Power Factor	0.90
Max. units per MCB B10	31 PCS
Max. units per MCB B16	50 PCS
Max. units per MCB C10	50 PCS
Max. units per MCB C16	80 PCS
Working Temperature	-20 to 40 °C
Storage Temperature	-10 to 60 °C
Mounting Type	Top mounting
Mounting Location	Outside
Mounting Area	Wall installation
Functions	Nightsaver
Scope of Delivery	1x installation material
Energieeffizenzklasse	F

Mindestbestellmenge	1
Bestellschritt	1

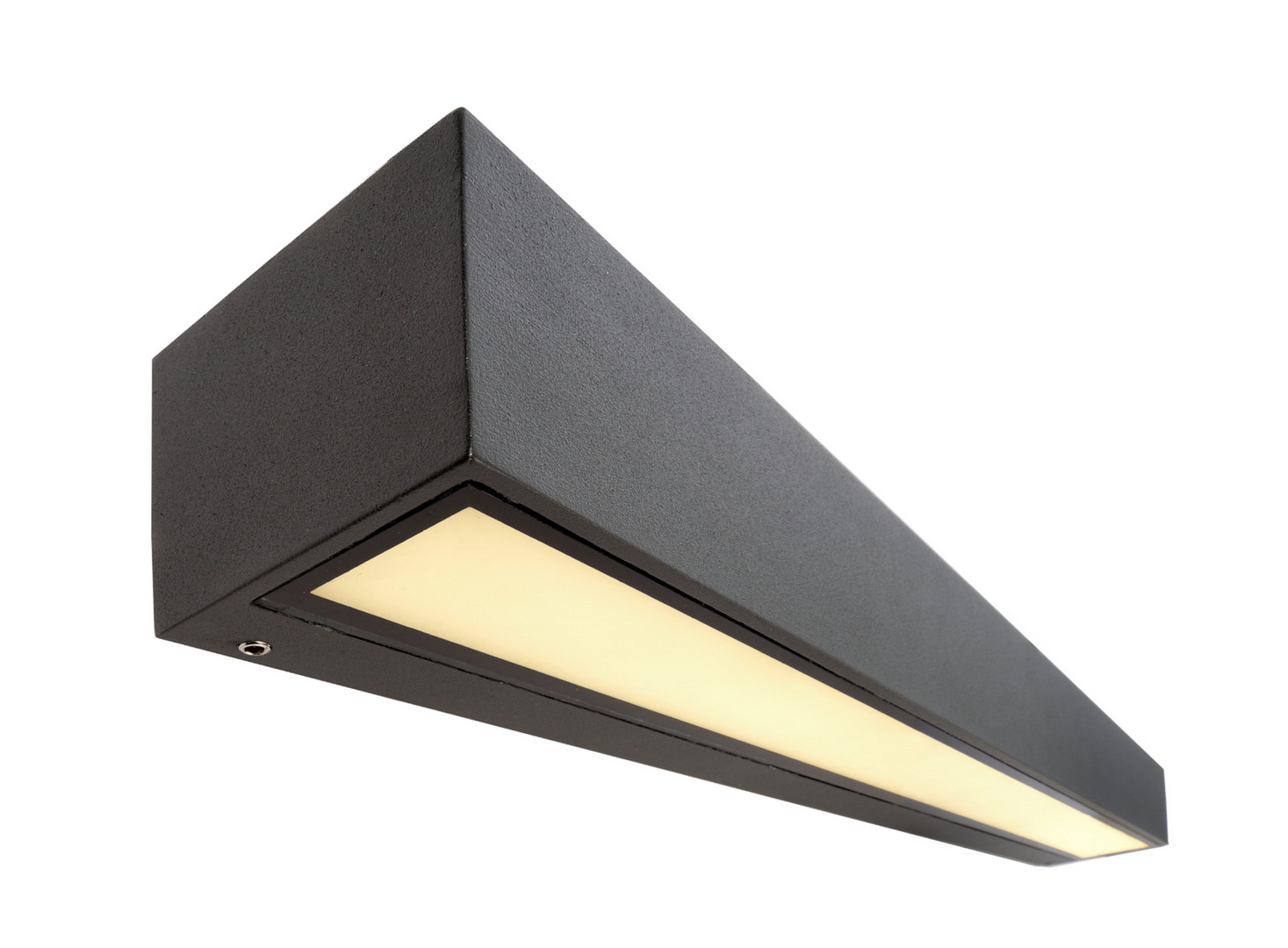

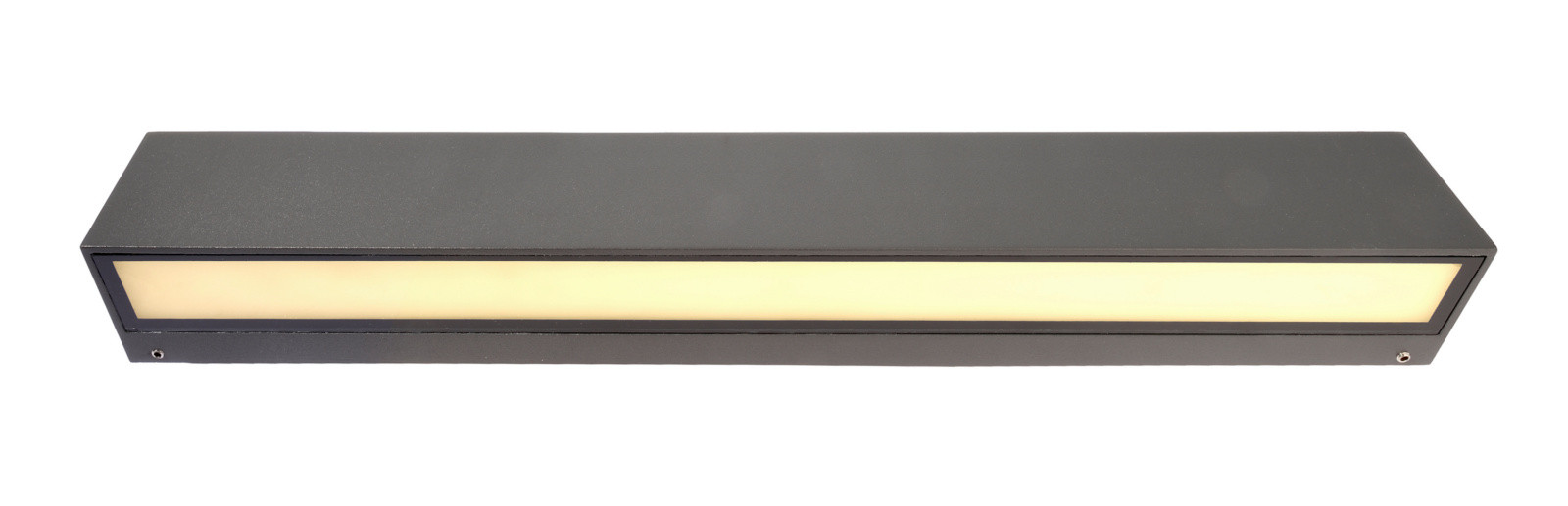

Wandaufbauleuchte - Linear I Single 500 mm, 14 W, 3000 K, Dunkelgrau
