Housing Material	Aluminium
Housing Color, Color System	Graphite grey RAL 7024
Housing Color	Dark grey
Lightcolor	Warm white (WW)
Color Temperature	3000 K
CRI (Ra)	80
Rated Luminous Flux	600 lm
Warranty (years)	5
Rated Angle of Reflection	19 Degree
badge_neu_en	false
badge_ausgelistet_en	false
Product state	Stock Item
Product Type	Surface-mounted wall light
badge_sale_en	false
eShop visible	yes
UV resistance	Yes
Dimmable	No
Motion Detector	No
Length	108 mm
Width	108 mm
Height	115 mm
Rated Input Voltage	220-240 V/AC
Frequency	50 / 60 Hz
Rated Input	8.5 W
Protection Class	Protection class I/protective grounding
IP Protection Class	IP 54
IK Protection Class	IK04
Light Source	LED
Luminous Efficiency	70.6 lm/W
Light direction	Below
Colour Consistency	6 SDCM
Life Time L70 / B50	30000 h
Switching Cycles	100000
Product weight	1229 g
Connection Type	Clamp
Power Supply Unit incl.	Yes
Power Supply Unit Changeable	Yes by technician
Power Consumption	9 kWh/1000h
Power Factor	0.89
Max. units per MCB B10	32 PCS
Max. units per MCB B16	51 PCS
Max. units per MCB C10	51 PCS
Max. units per MCB C16	81 PCS
Working Temperature	-20 to 40 °C
Storage Temperature	-10 to 60 °C
Mounting Type	Top mounting
Mounting Location	Outside
Mounting Area	Wall installation
Functions	Nightsaver
Scope of Delivery	1x dimming cap
Energieeffizenzklasse	G

Mindestbestellmenge	1
Bestellschritt	1

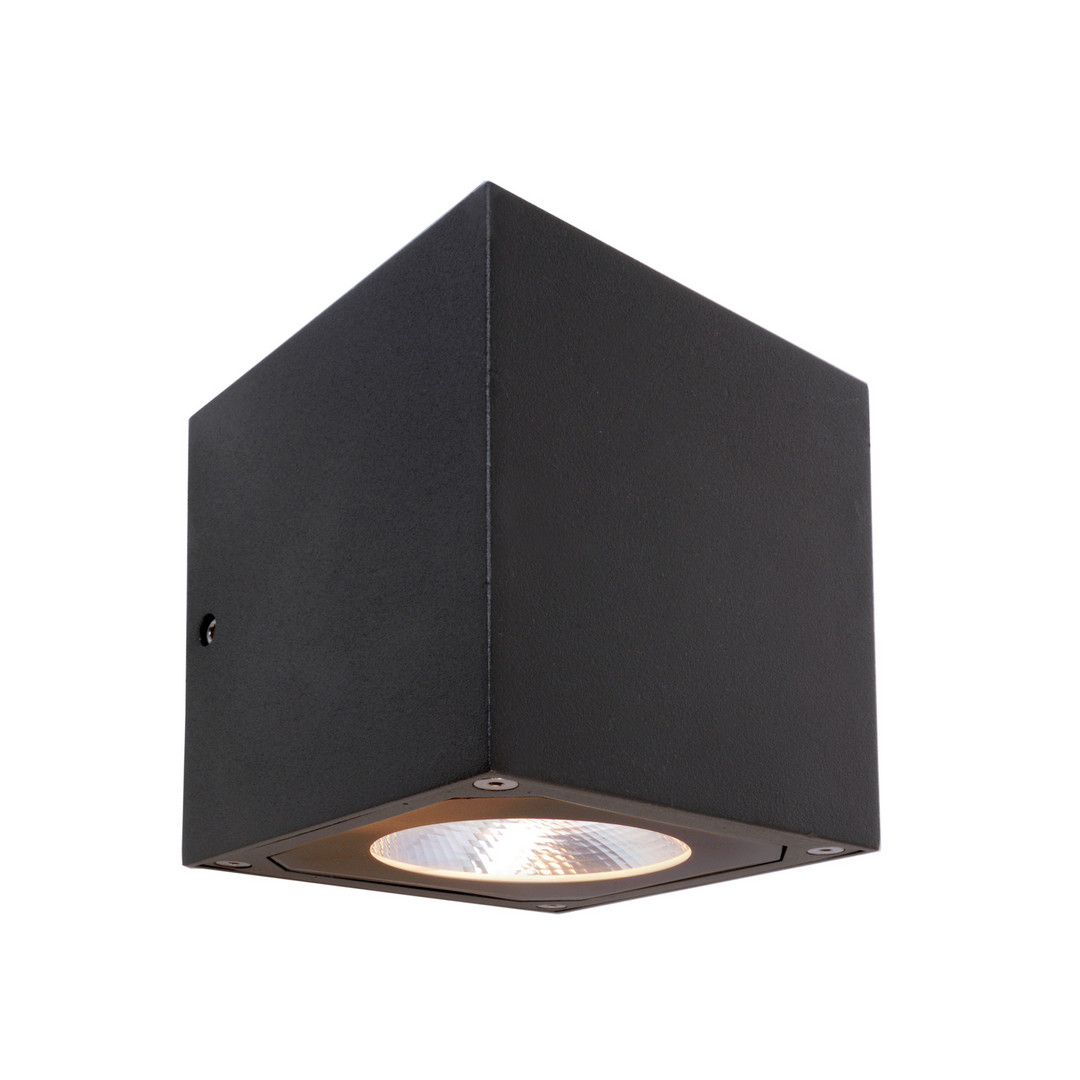

Wandaufbauleuchte - Cubodo 2 Single, 8,5 W, 3000 K, Dunkelgrau
