Housing Material	Aluminium
Housing Color, Color System	Signal white RAL 9003
Housing Color	White
Lightcolor	Warm white (WW)
Color Temperature	3000 K
CRI (Ra)	80
Rated Luminous Flux	1300 lm
Warranty (years)	5

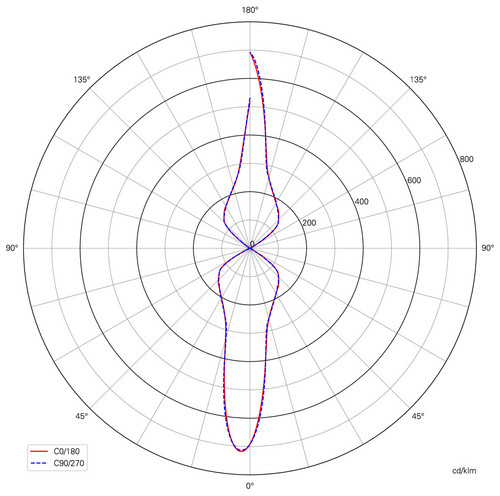

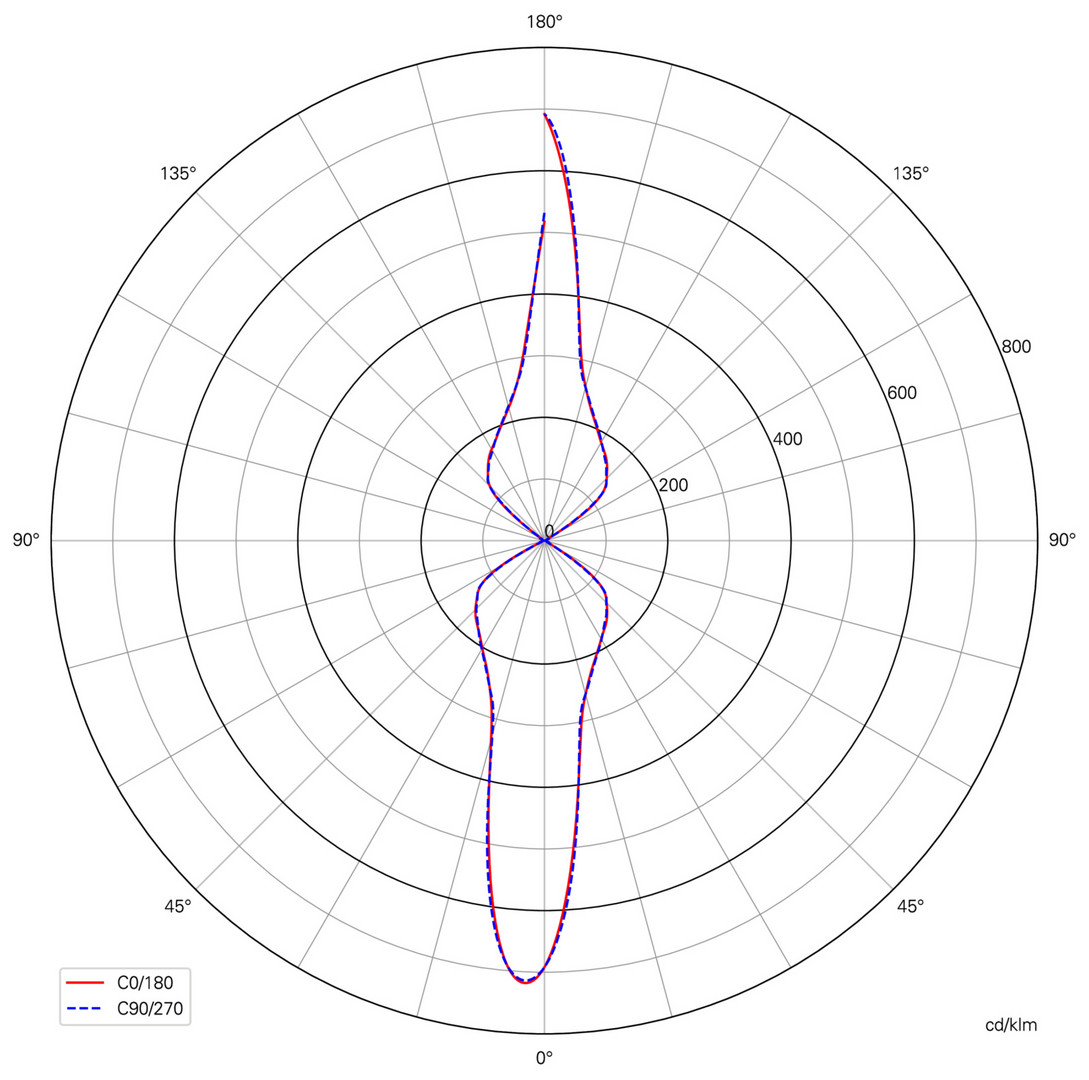

Rated Angle of Reflection	19 Degree
Rated Angle of Reflection 2	19 Degree
badge_neu_en	false
badge_ausgelistet_en	false
Product state	Stock Item
Product Type	Surface-mounted wall light
badge_sale_en	false
eShop visible	yes
UV resistance	Yes
Dimmable	No
Motion Detector	No
Length	108 mm
Width	108 mm
Height	115 mm
Rated Input Voltage	220-240 V/AC
Frequency	50 / 60 Hz
Rated Input	16.0 W
Protection Class	Protection class I/protective grounding
IP Protection Class	IP 54
IK Protection Class	IK04
Light Source	LED
Luminous Efficiency	80.3 lm/W
Light direction	Top
Colour Consistency	6 SDCM
Life Time L70 / B50	30000 h
Switching Cycles	100000
Product weight	1500 g
Connection Type	Clamp
Power Supply Unit incl.	Yes
Power Supply Unit Changeable	Yes by technician
Power Consumption	16 kWh/1000h
Power Factor	0.90
Max. units per MCB B10	22 PCS
Max. units per MCB B16	36 PCS
Max. units per MCB C10	37 PCS
Max. units per MCB C16	60 PCS
Working Temperature	-20 to 40 °C
Storage Temperature	-10 to 60 °C
Mounting Type	Top mounting
Mounting Location	Outside
Mounting Area	Wall installation
Scope of Delivery	2x dimming caps
Energieeffizenzklasse	G

Mindestbestellmenge	1
Bestellschritt	1

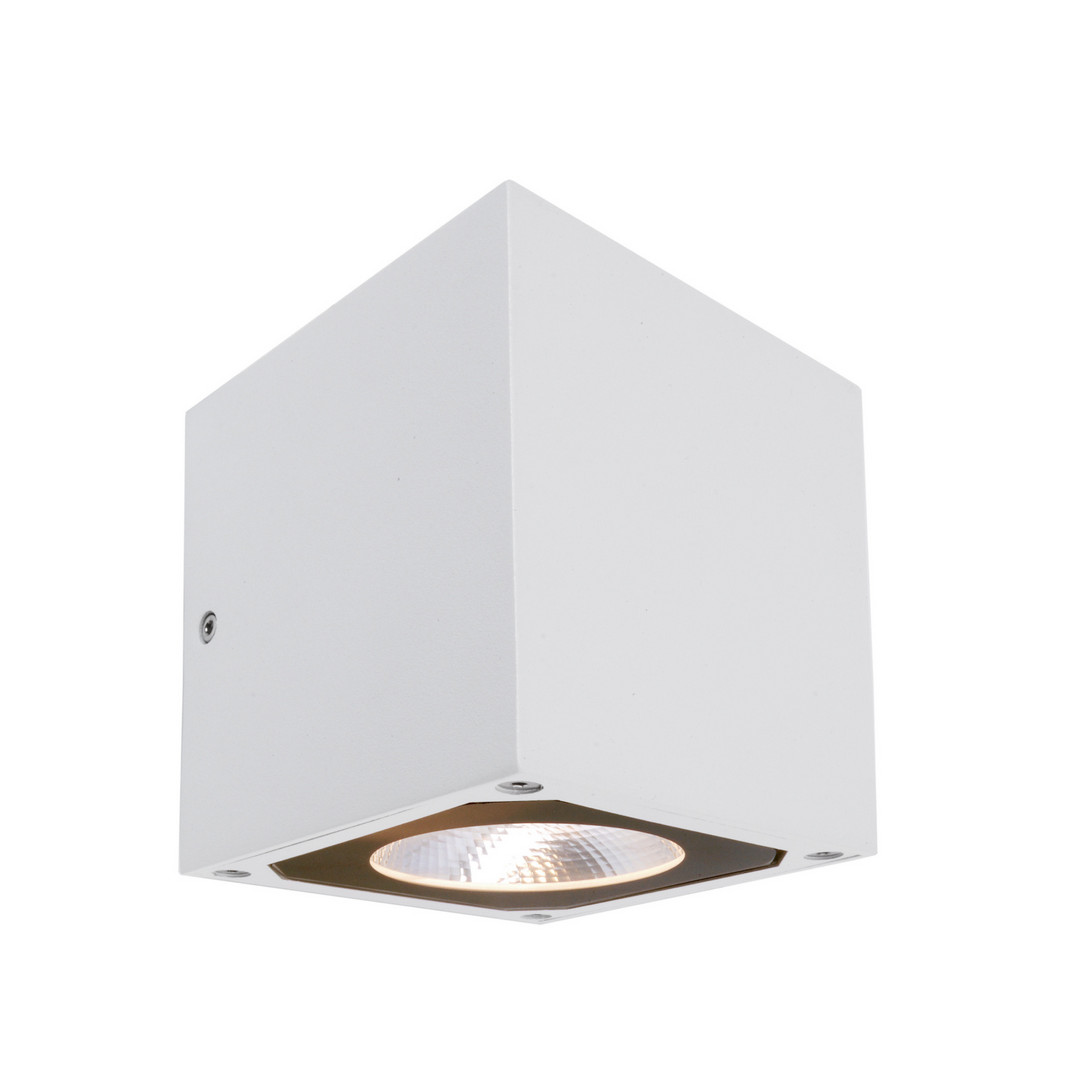

Wandaufbauleuchte - Cubodo 2 Double, 16 W, 3000 K, Weiß
