RRP incl. VAT	224.95 EUR
BEG Eligible	Yes
Housing Material	Aluminium
Housing Color	White
Housing Color, Color System	Signal white RAL 9003
Halogen free	Yes
CRI (Ra)	80
Inrush Current max.	19 A / 280 µs
Voltage range DC	168-275 V/DC
Voltage range emergency lighting	186-250 V/DC
EOFI	100 %

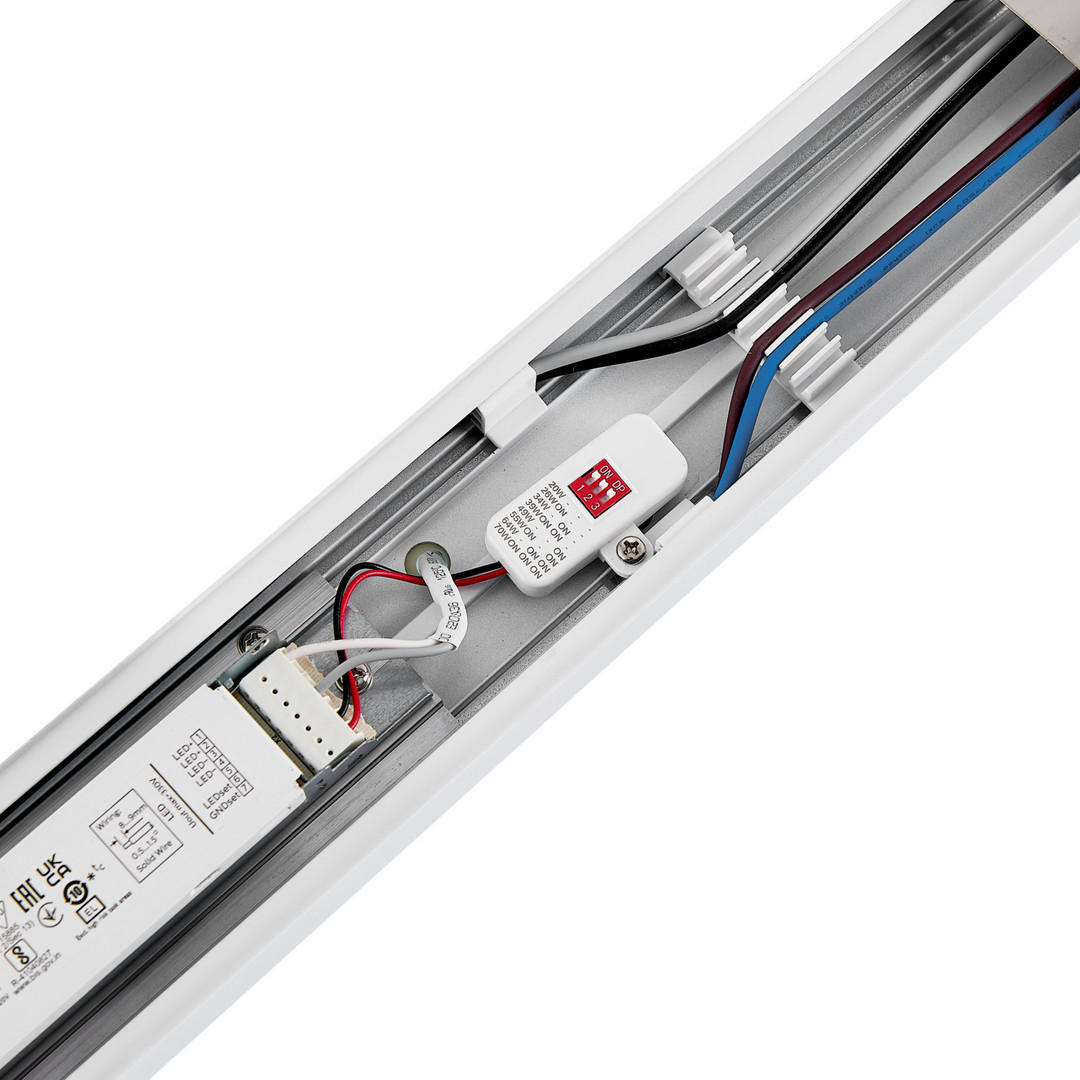

Power Selectable	20.0 W W
Power Selectable	26.0 W W
Power Selectable	34.0 W W
Power Selectable	39.0 W W
Power Selectable	49.0 W W
Power Selectable	55.0 W W
Power Selectable	64.0 W W
Power Selectable	70.0 W W
Light Source	Light source changeable TC

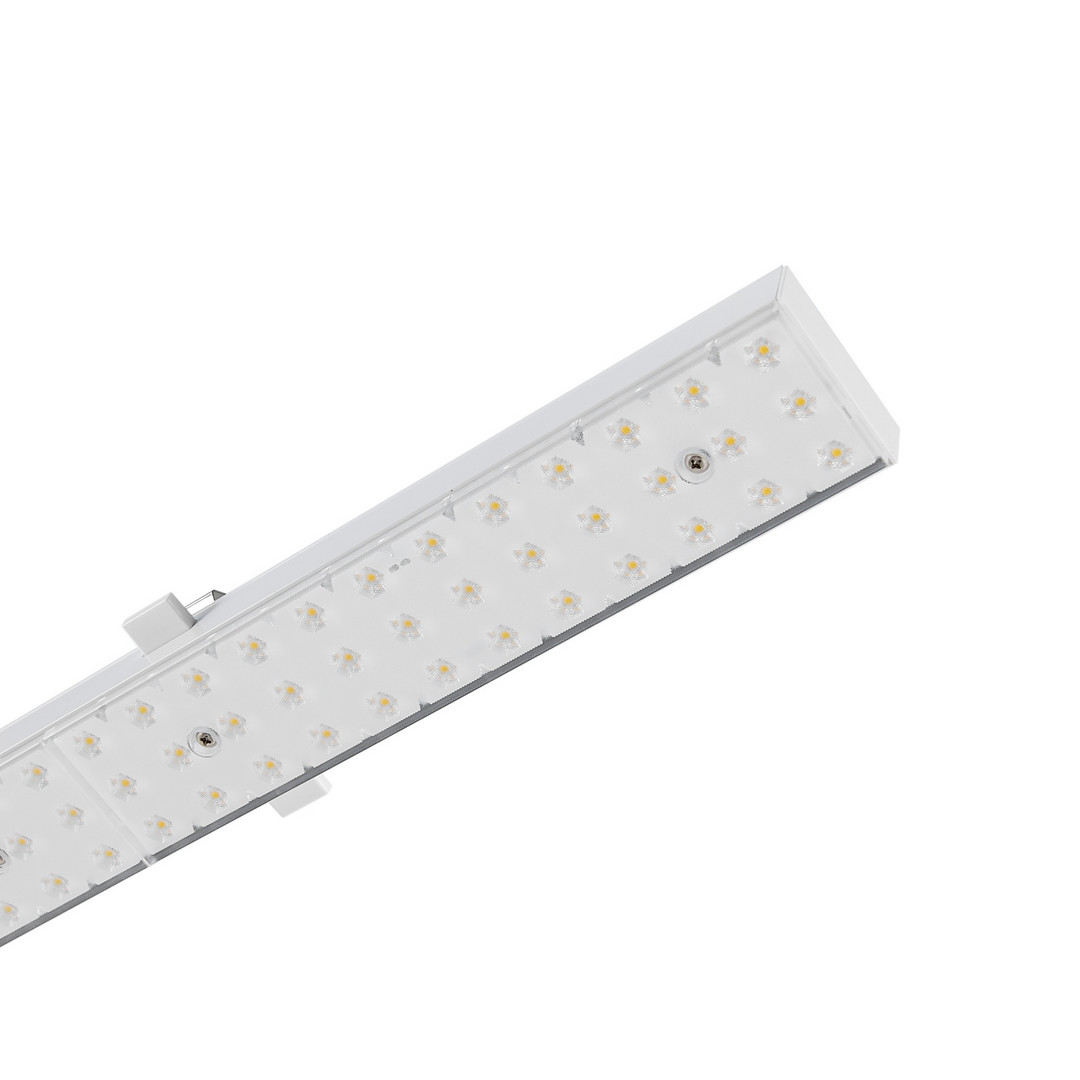

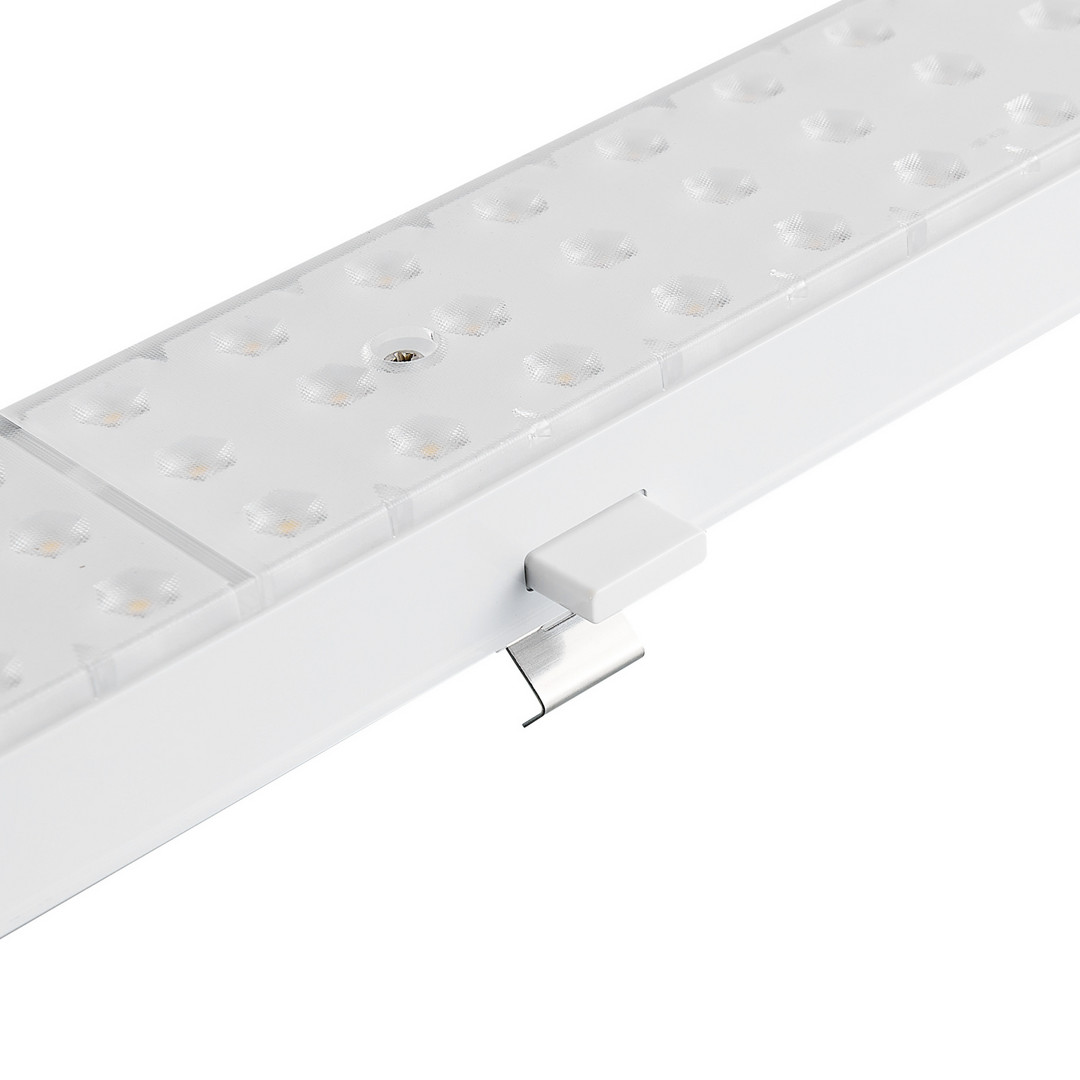

Light Source	LED
Number of Light Sources	2
Luminous Efficiency	165 lm/W
Colour Consistency	3 SDCM
Switching Cycles	50000
Product weight	1863 g
Power Consumption	70 kWh/1000h
Power Factor	0.95
Max. units per MCB B10	15
Max. units per MCB B16	24
Max. units per MCB C10	24
Max. units per MCB C16	40
Working Temperature	-25 to 50 °C
Surface Temperature max.	65 °C
Storage Temperature	-25 to 85 °C

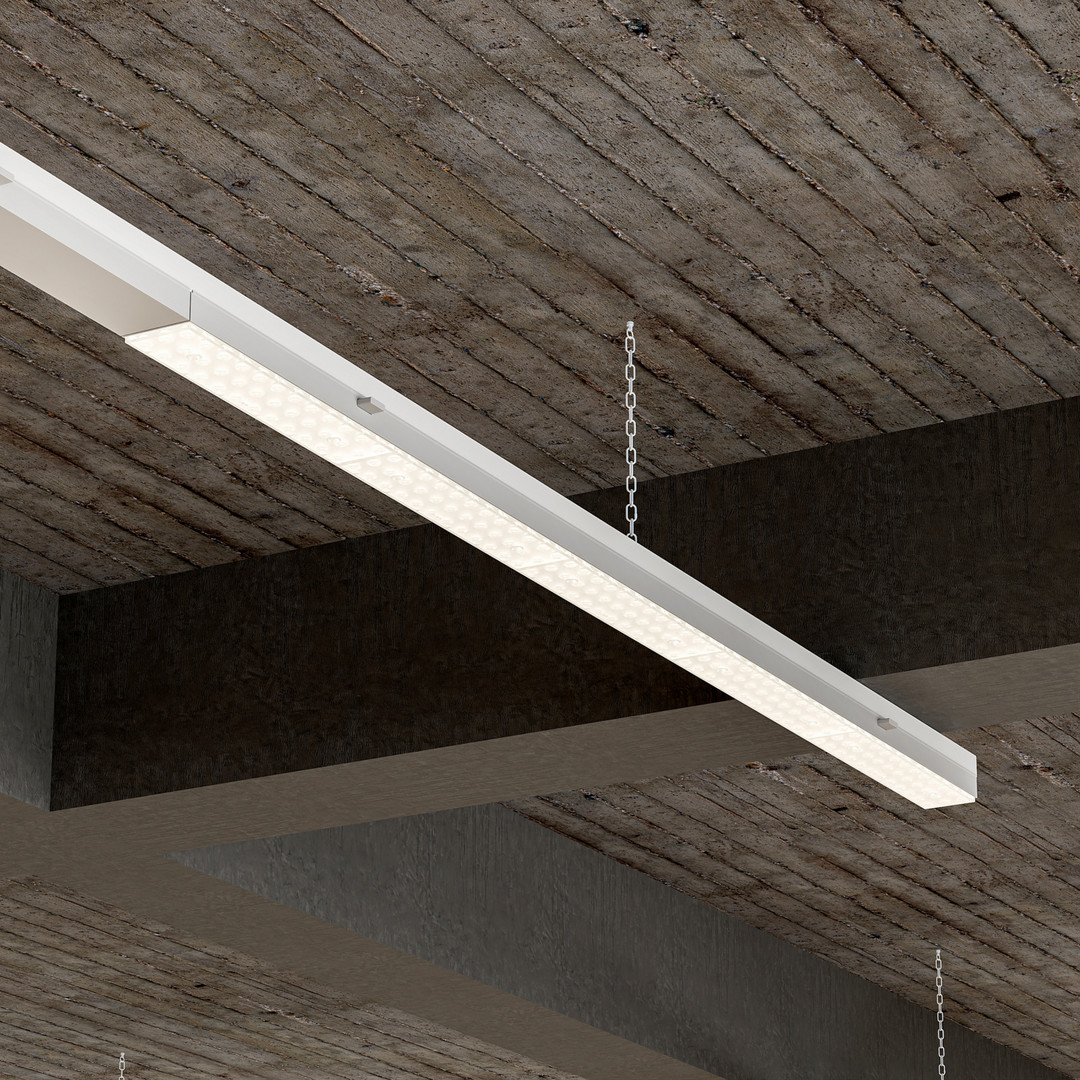

Mounting Type	Top mounting
Mounting Location	Inside
Mounting Area	Ceiling installation

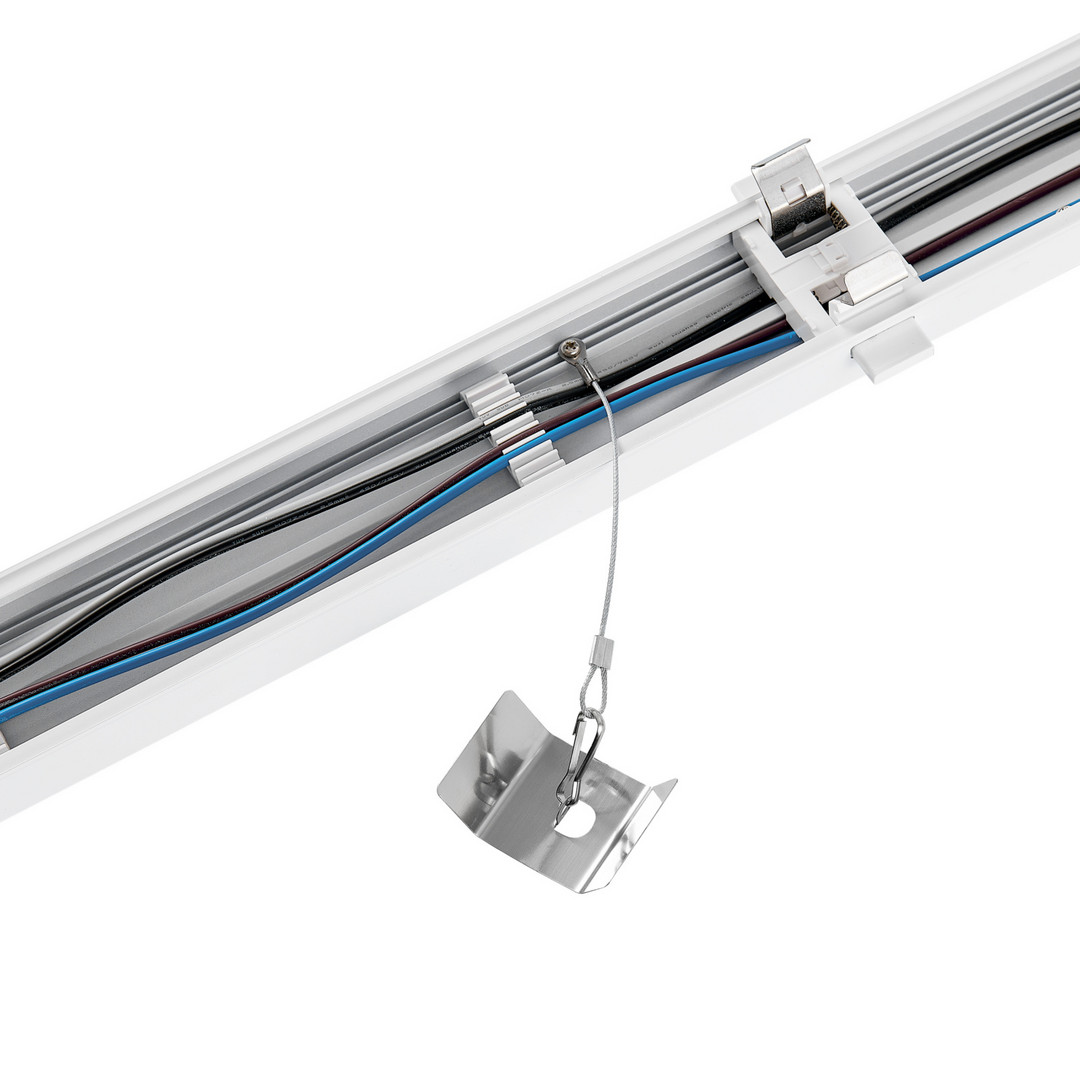

Scope of Delivery	2x safety rope (pre-mounted)
Rated Input Voltage	198-264 V/AC
Dimmable	No
Number of Cable Entries	2 PCS

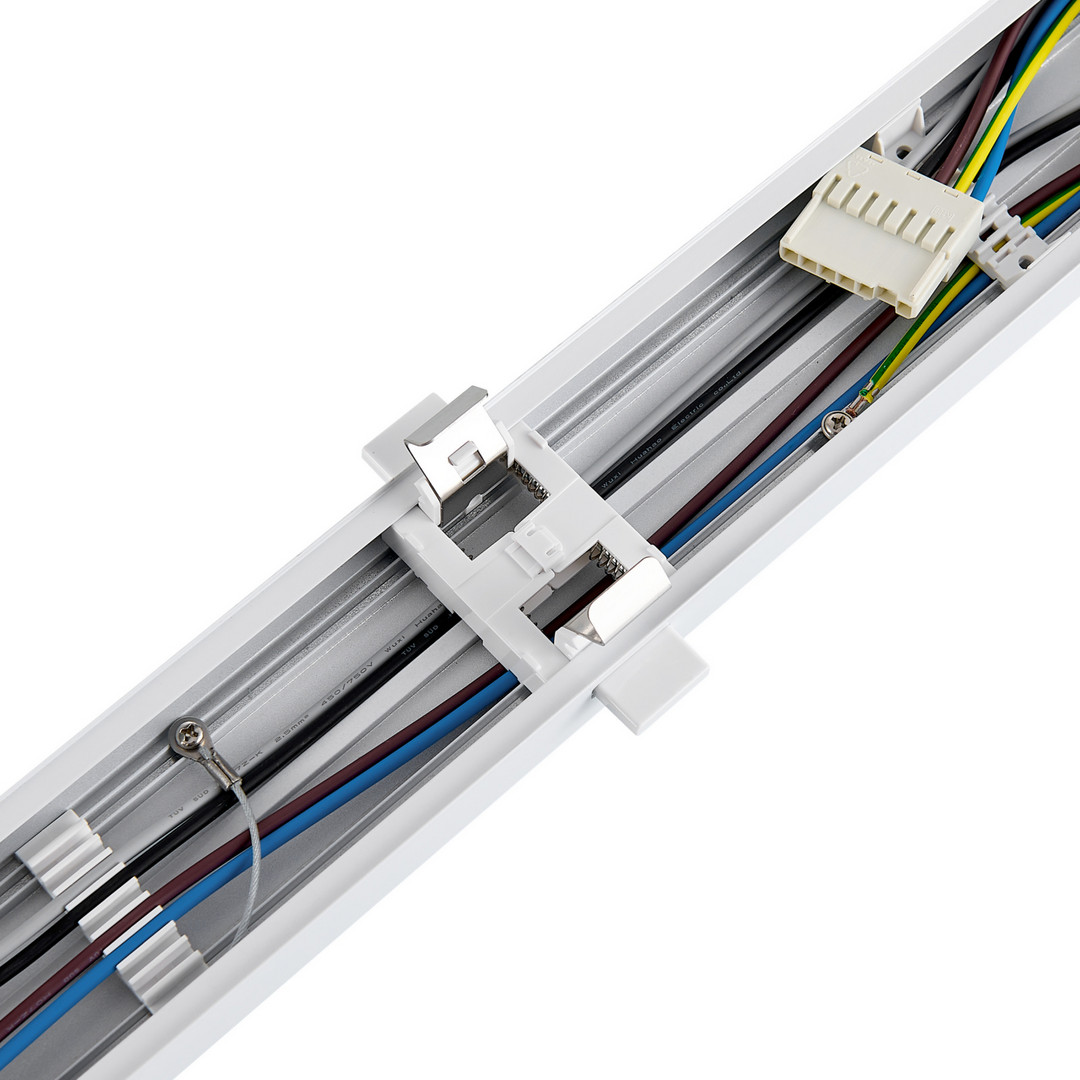

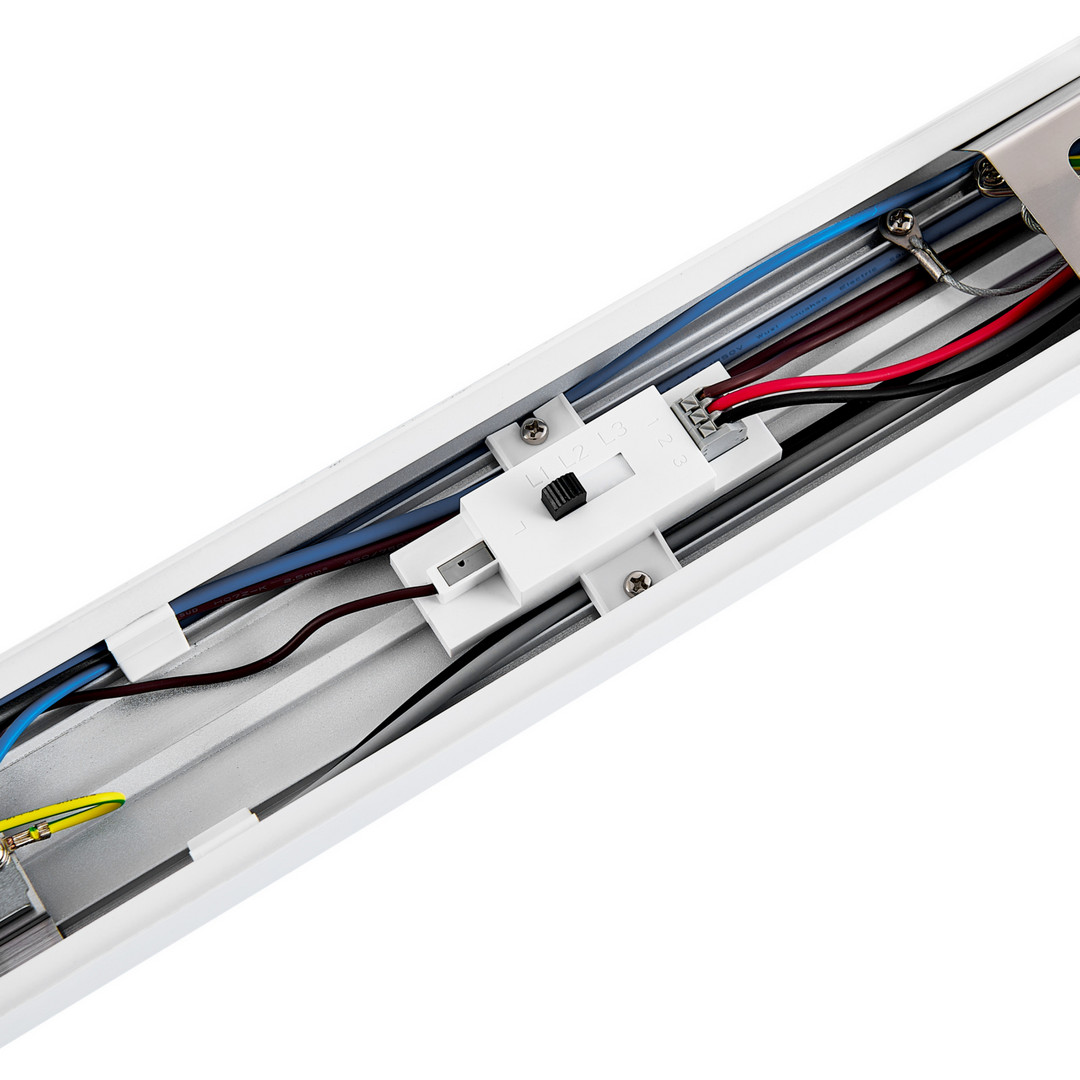

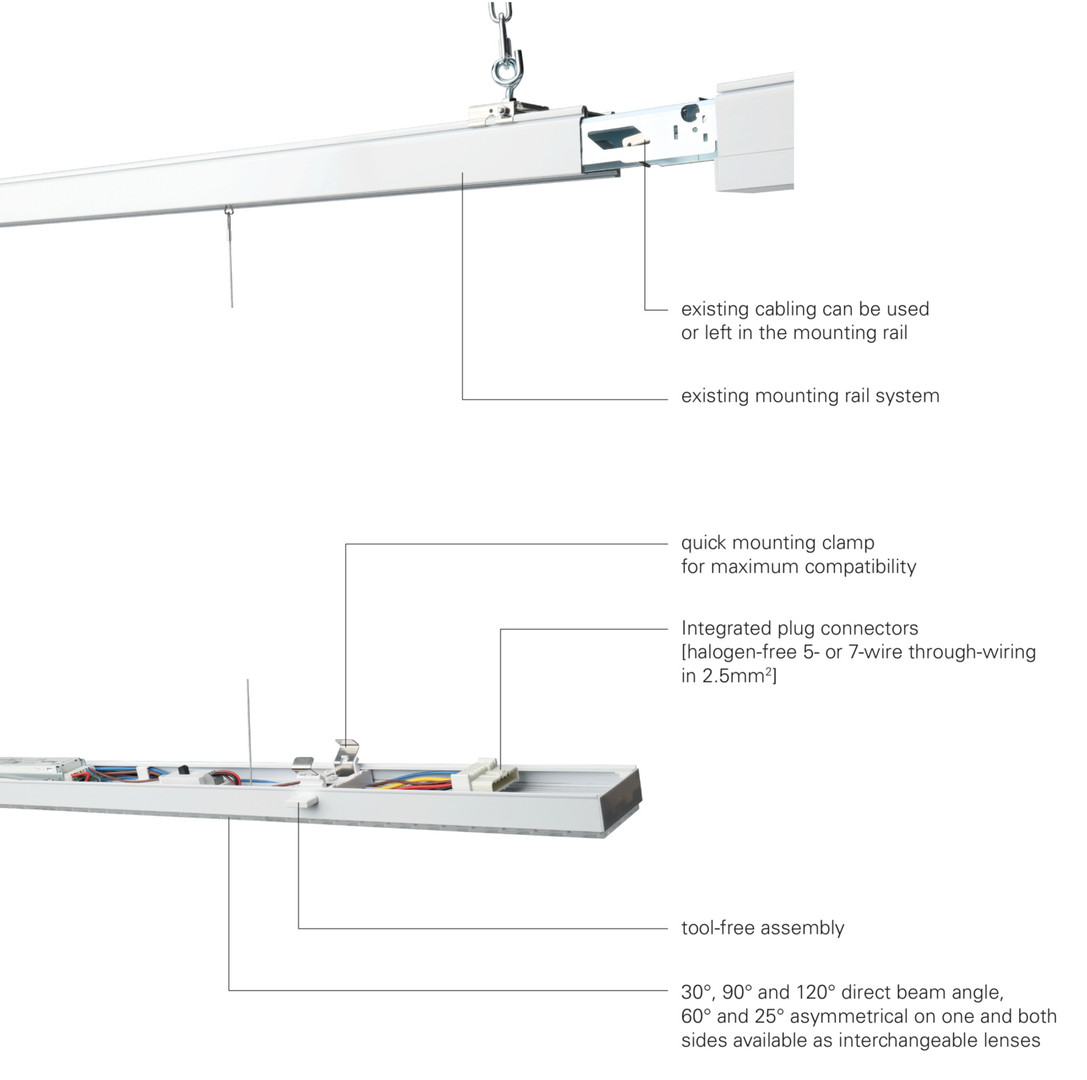

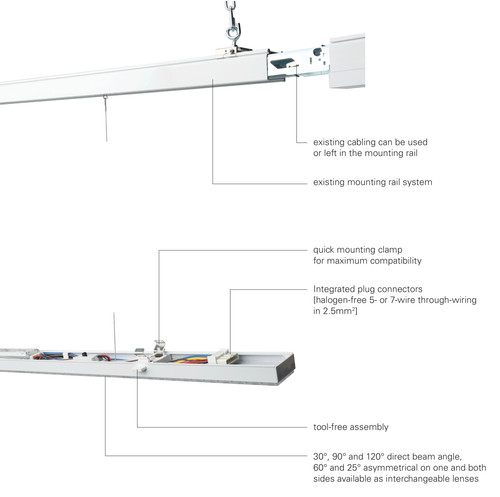

Through Wiring possible	Yes
Power Supply Unit Changeable	Yes by technician
Protection Class	Protection class I/protective grounding
UGR	25
Lightcolor	Neutral white
Color Temperature	4000 K
Rated Luminous Flux	12200 lm
Light direction	Below

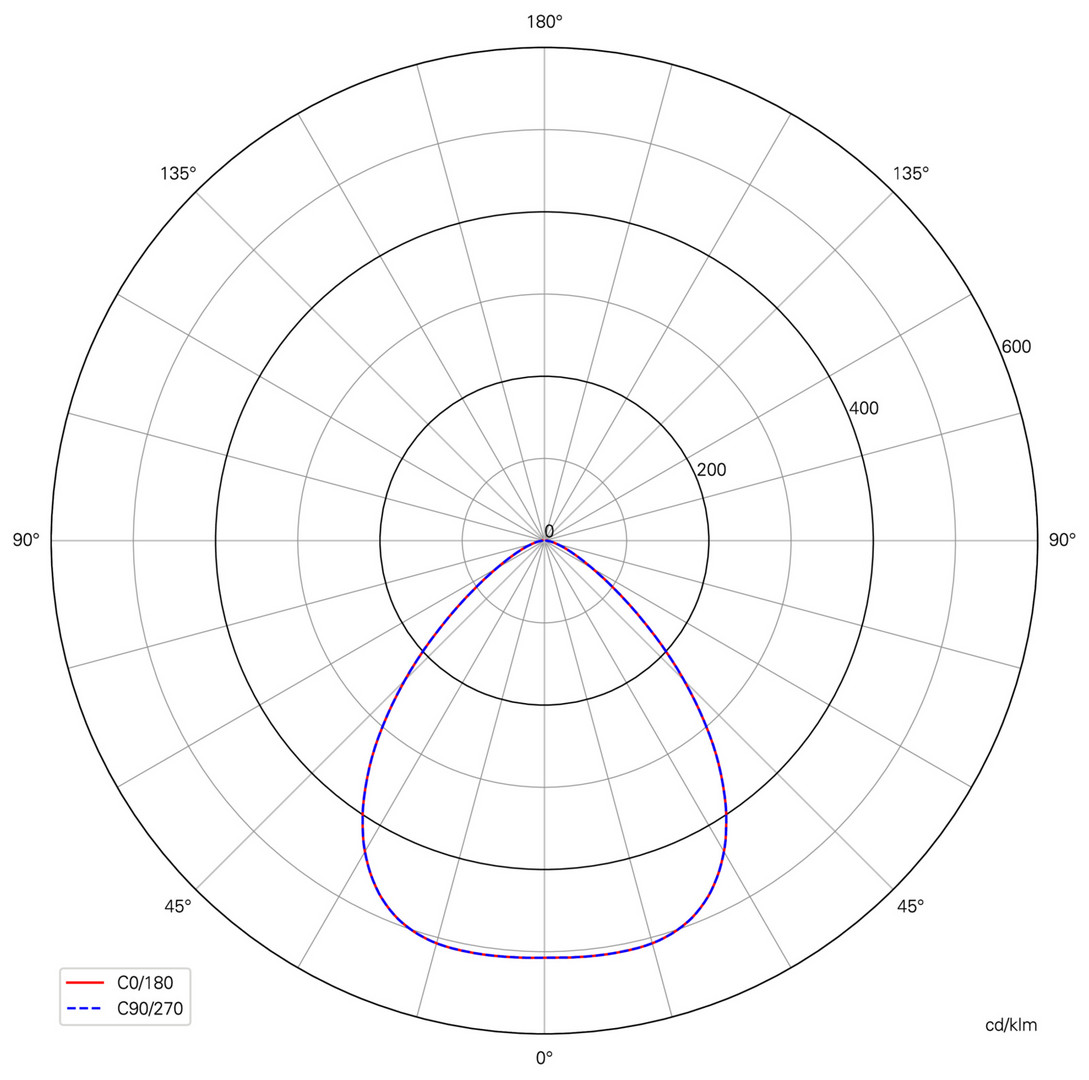

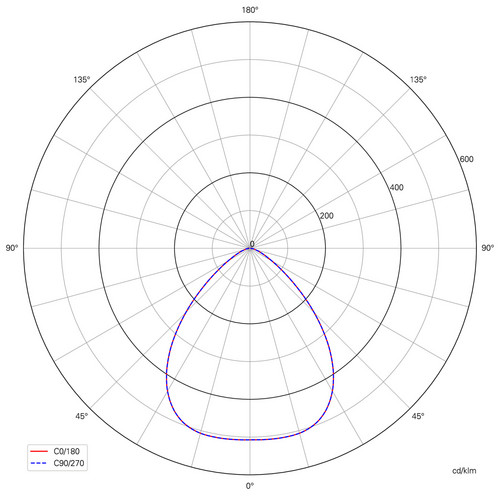

Rated Angle of Reflection	90 Degree

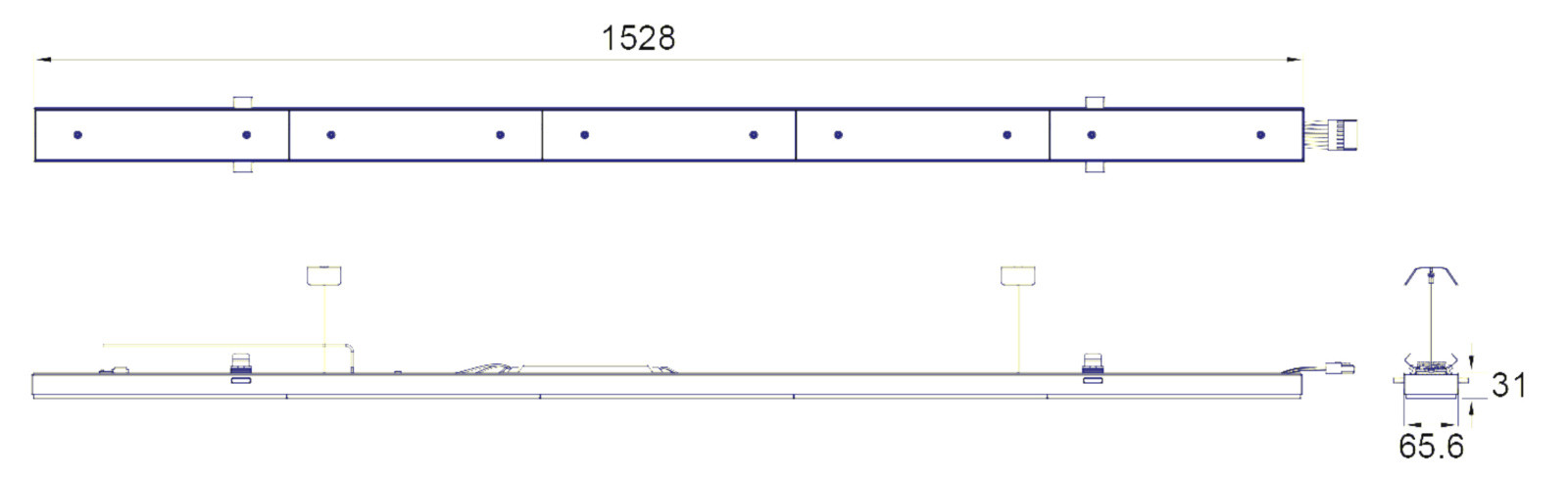

Length	1528 mm
Width	65.6 mm
Height	31 mm
IP Protection Class	IP 40
IK Protection Class	IK04
Functions	Phase switch
Functions	Emergency power capable
Life Time L70 / B50	130000 h
Life Time L80 / B10	72000 h
Life Time L80 / B50	85000 h

Mindestbestellmenge	1
Bestellschritt	1

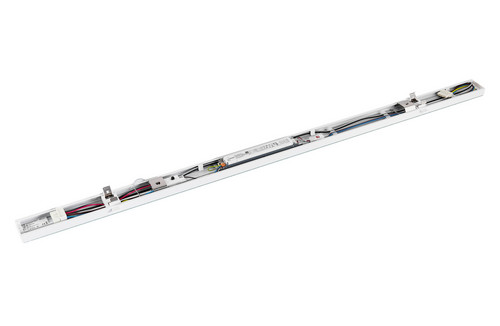

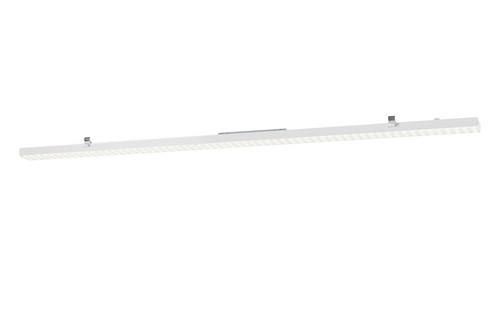

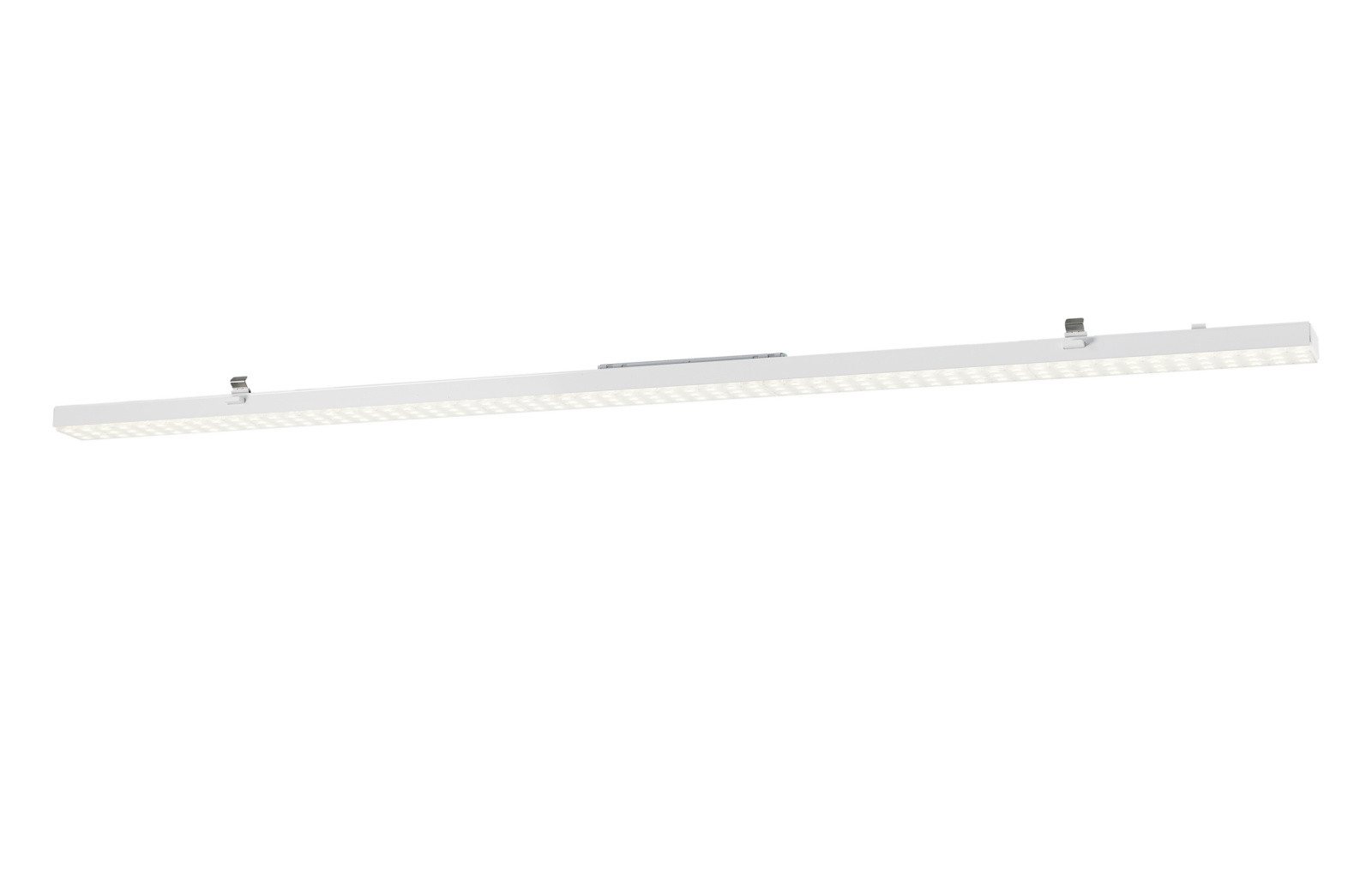

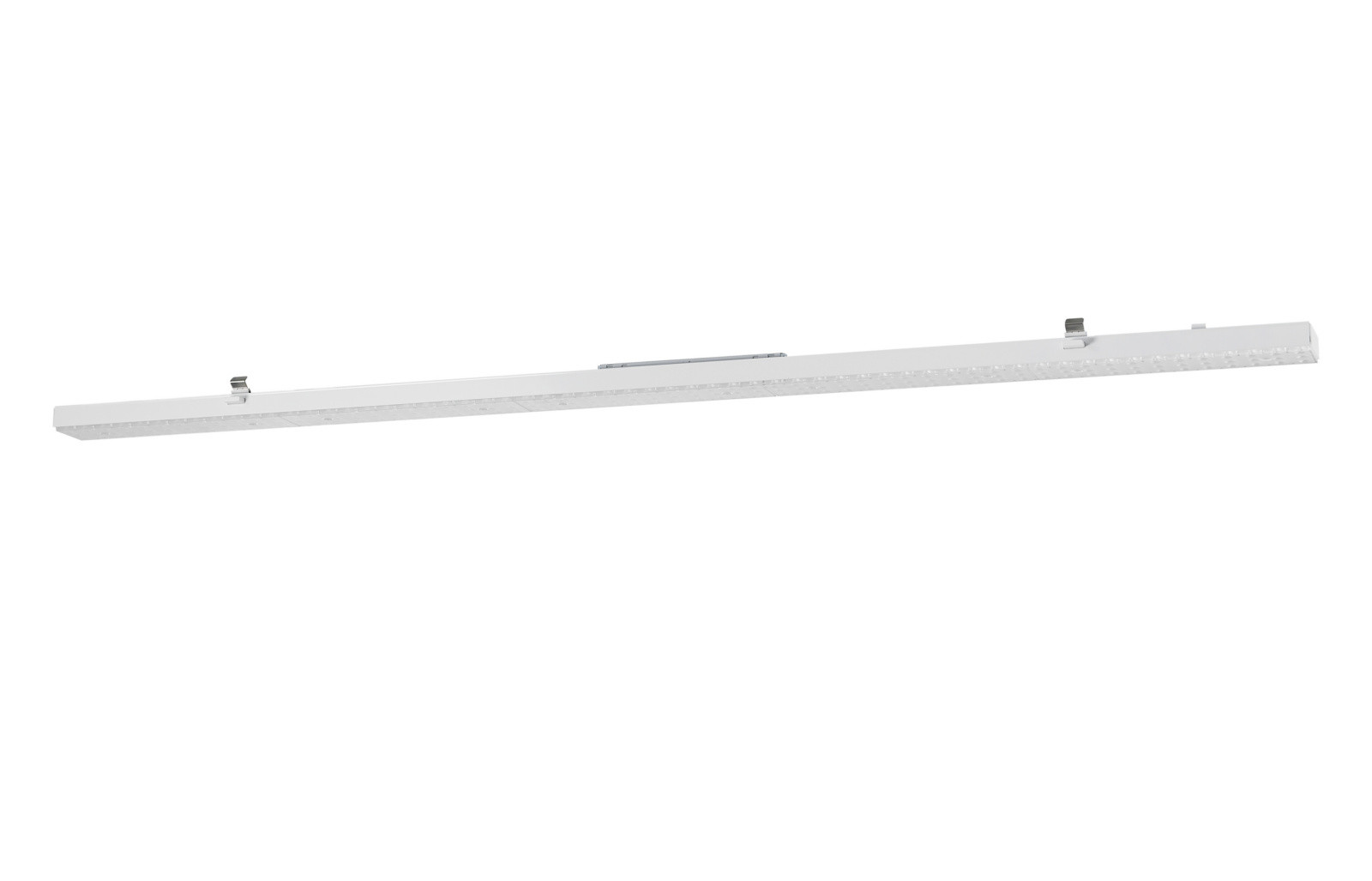

Trunking system - Sanotrunk Universal 90 degree, 70 W, On/Off, 4000 K, White
