RRP incl. VAT	274.95 EUR
BEG Eligible	Yes
Housing Material	Aluminium
Housing Color	White
Housing Color, Color System	Signal white RAL 9003
Halogen free	Yes
CRI (Ra)	80
Inrush Current max.	25 A / 230 µs
Voltage range DC	168-275 V/DC
Voltage range emergency lighting	186-250 V/DC
EOFI	15 %
Light Source	Light source changeable TC

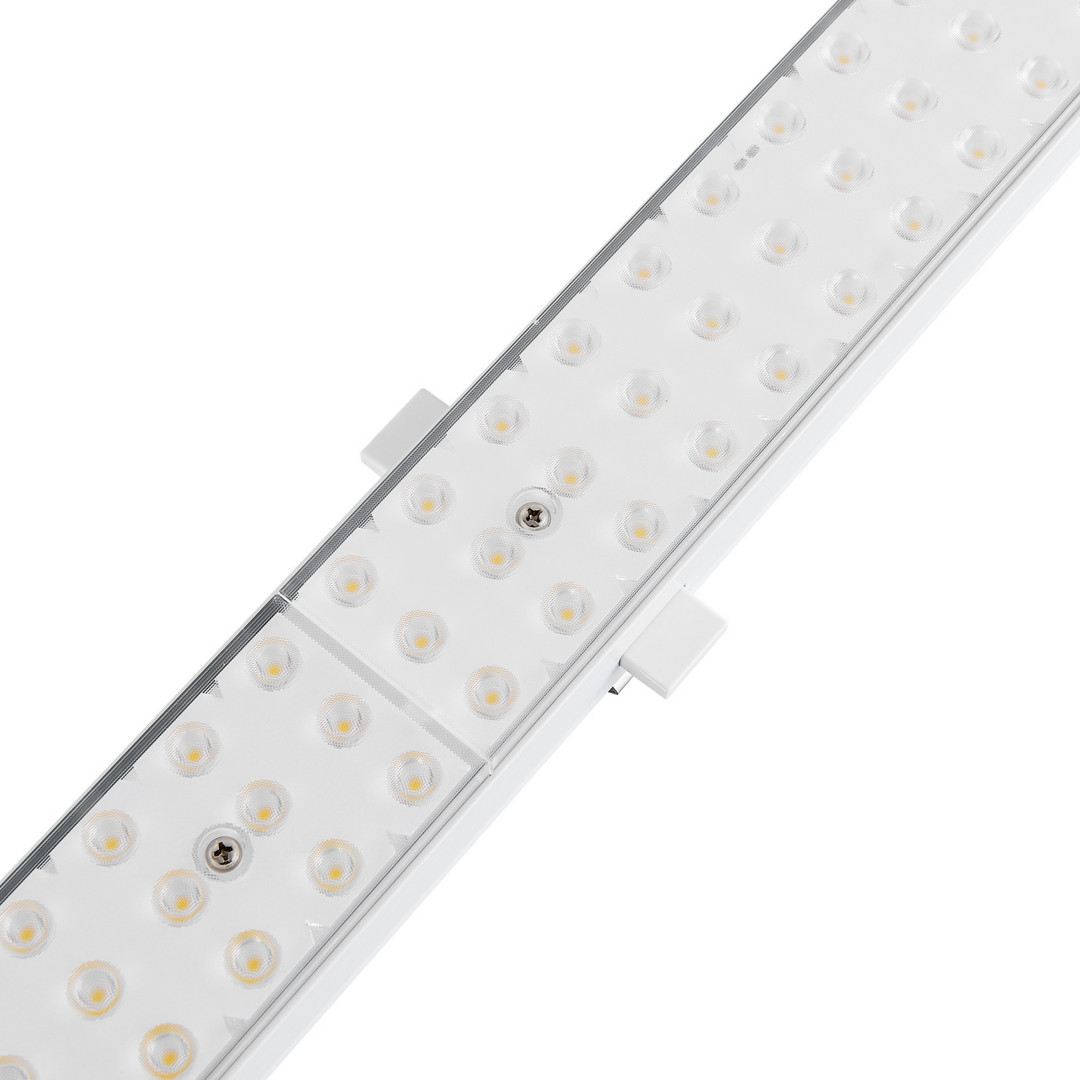

Light Source	LED
Number of Light Sources	2
Luminous Efficiency	177 lm/W
Colour Consistency	3 SDCM
Switching Cycles	50000
Product weight	2059 g
Power Consumption	70 kWh/1000h
Power Factor	0.95
Max. units per MCB B10	12
Max. units per MCB B16	20
Max. units per MCB C10	20
Max. units per MCB C16	34
Working Temperature	-25 to 50 °C
Surface Temperature max.	65 °C
Storage Temperature	-25 to 85 °C
Mounting Type	Top mounting
Mounting Location	Inside
Mounting Area	Ceiling installation

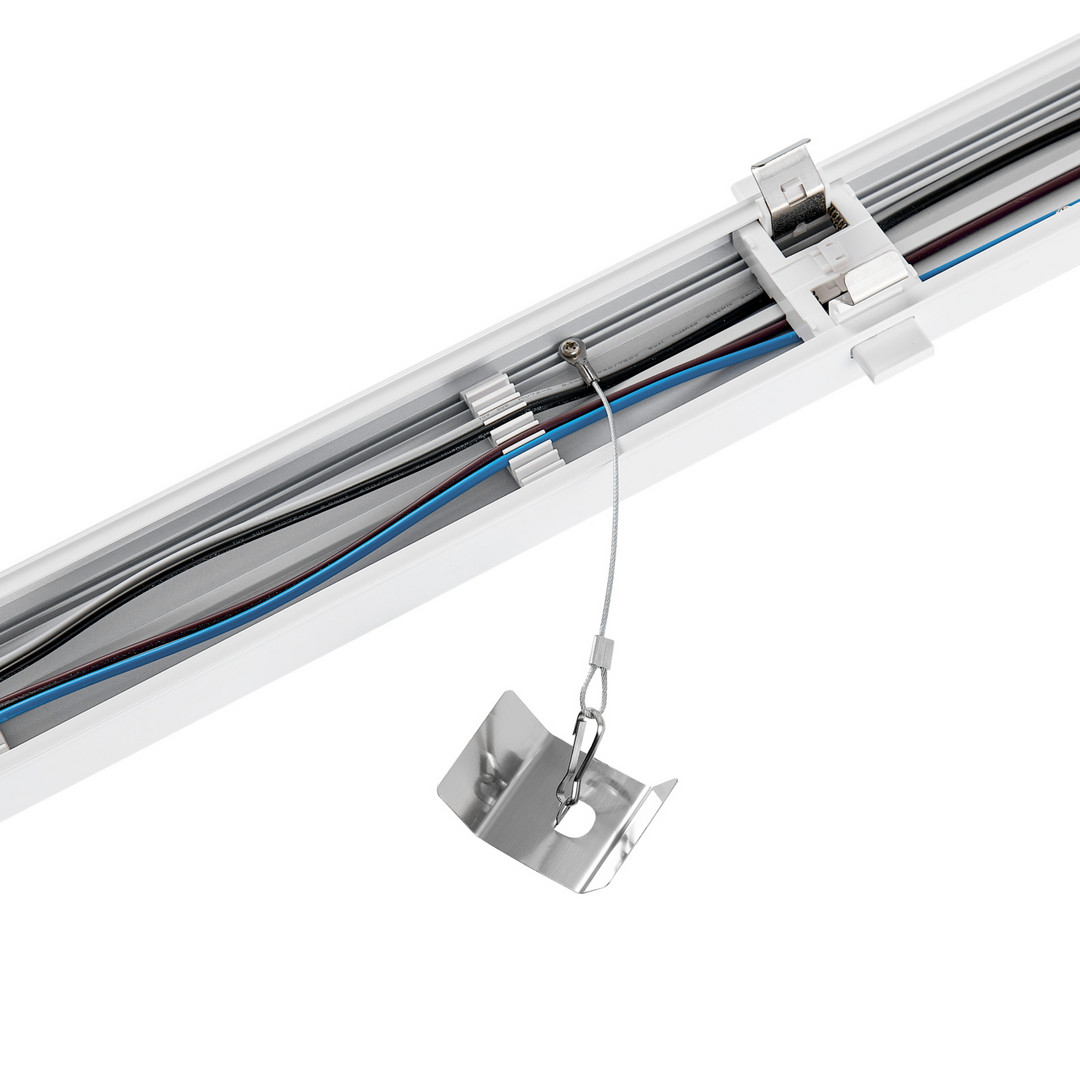

Scope of Delivery	2x safety rope (pre-mounted)
Rated Input Voltage	198-264 V/AC
Rated Input	70.0 W
Control	Push-Dim
Control	DALI 2.0 / DT6
Dimmable	Yes
Number of Cable Entries	2 PCS

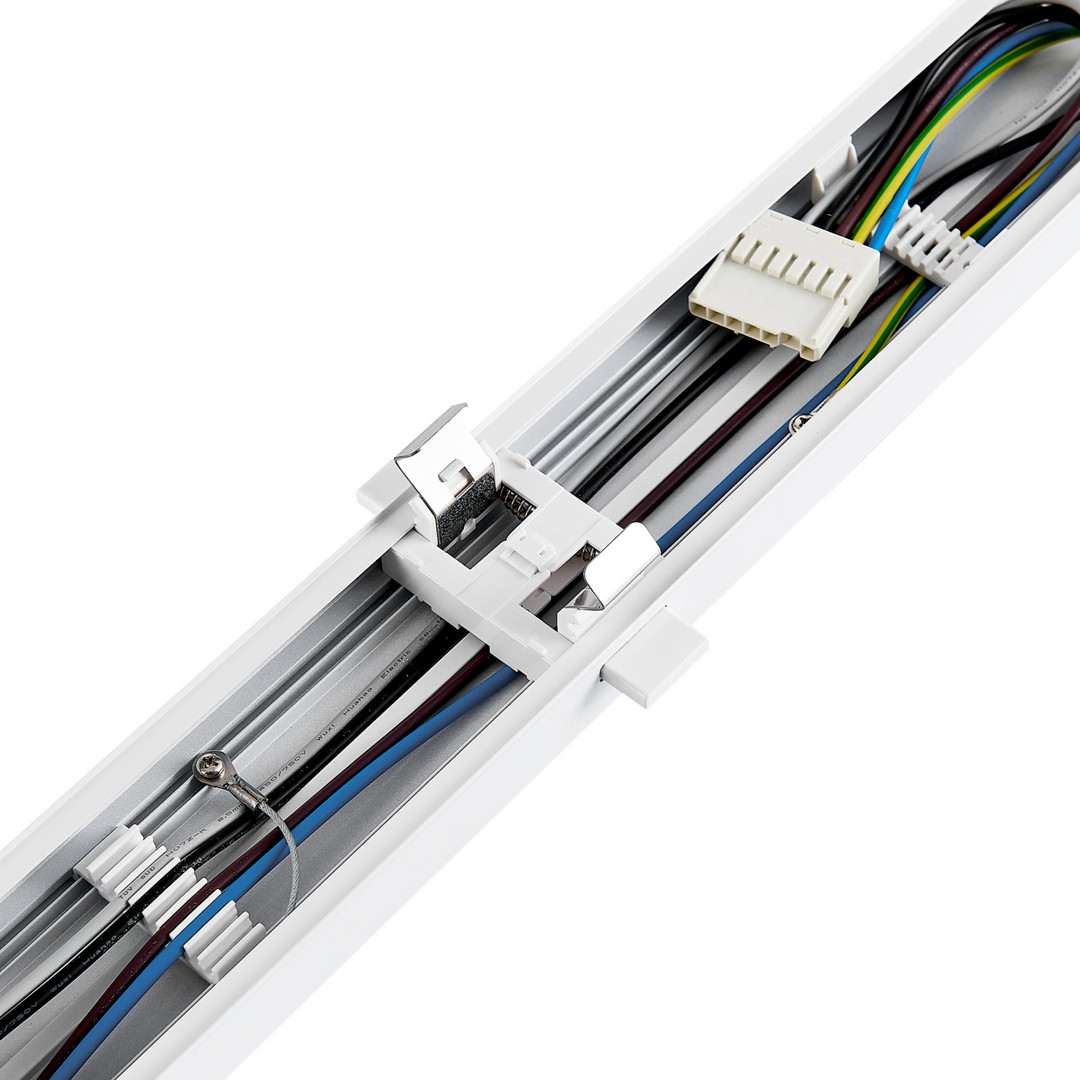

Through Wiring possible	Yes

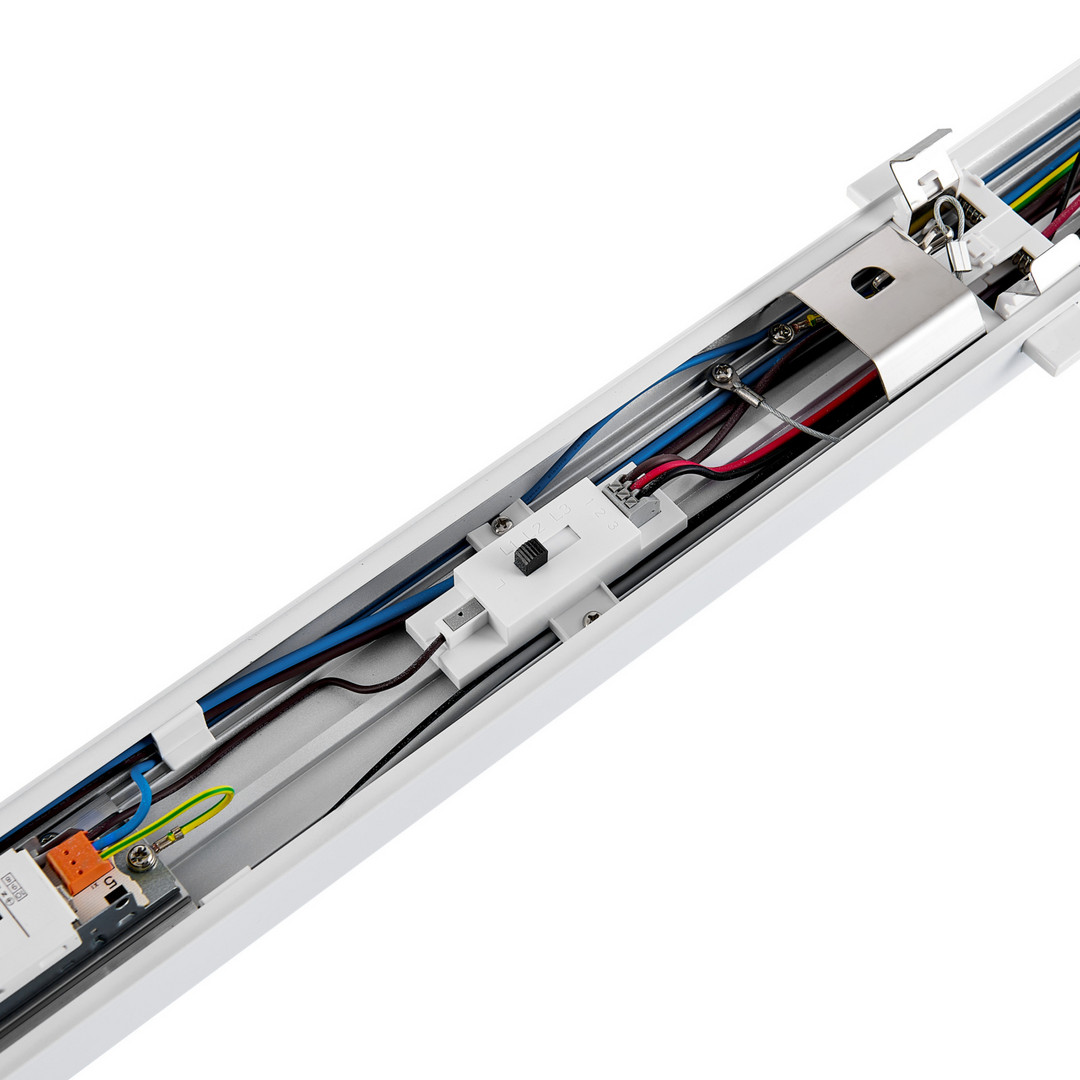

Power Supply Unit Changeable	Yes by technician
Protection Class	Protection class I/protective grounding
UGR	22
Lightcolor	Neutral white
Color Temperature	4000 K
Rated Luminous Flux	12400 lm
Light direction	Below

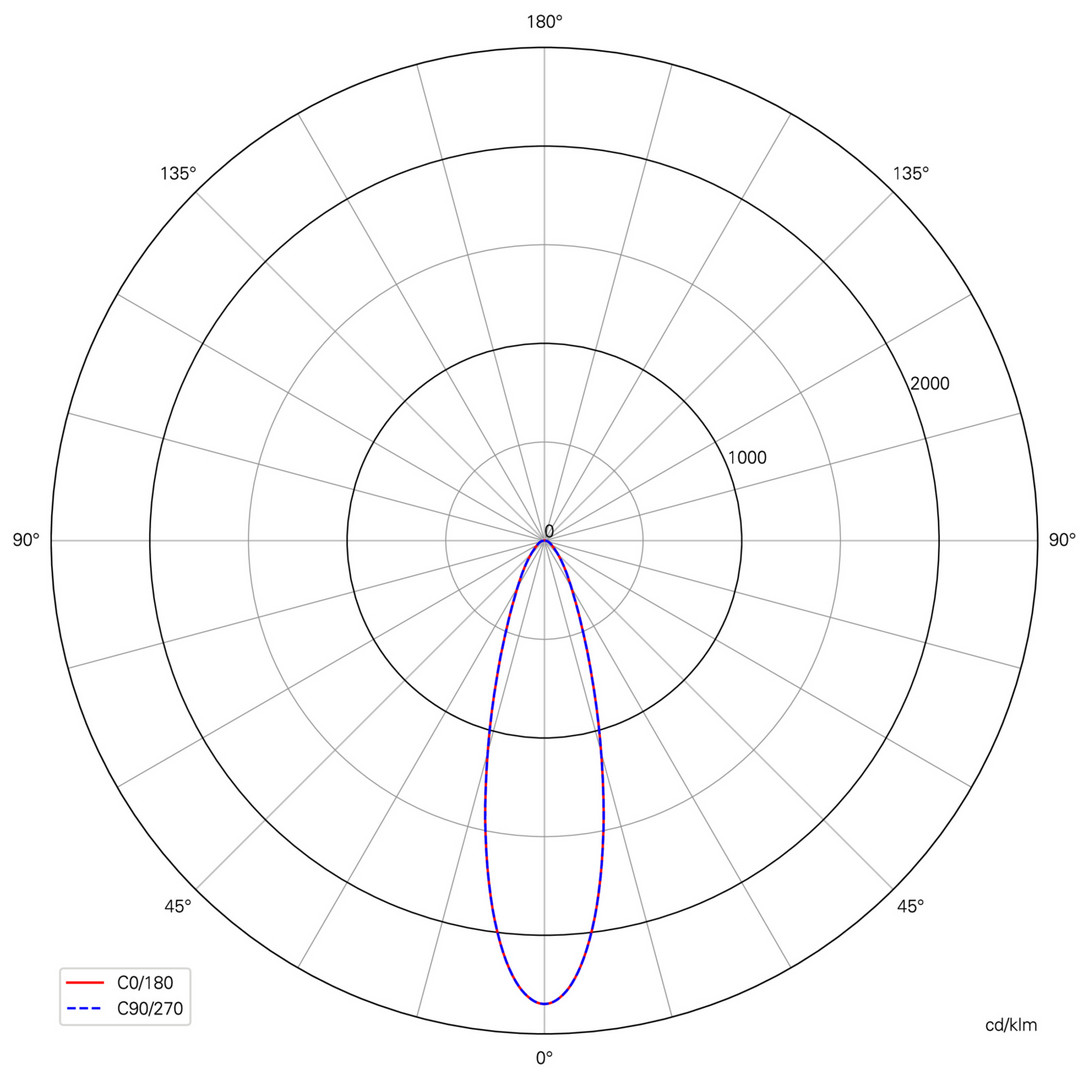

Rated Angle of Reflection	30 Degree
Length	1528 mm
Width	65.6 mm
Height	31 mm
IP Protection Class	IP 40
IK Protection Class	IK04
Functions	Phase switch
Functions	Corridor function DALI
Functions	Emergency power capable
Life Time L70 / B50	130000 h
Life Time L80 / B10	72000 h
Life Time L80 / B50	85000 h

Mindestbestellmenge	1
Bestellschritt	1

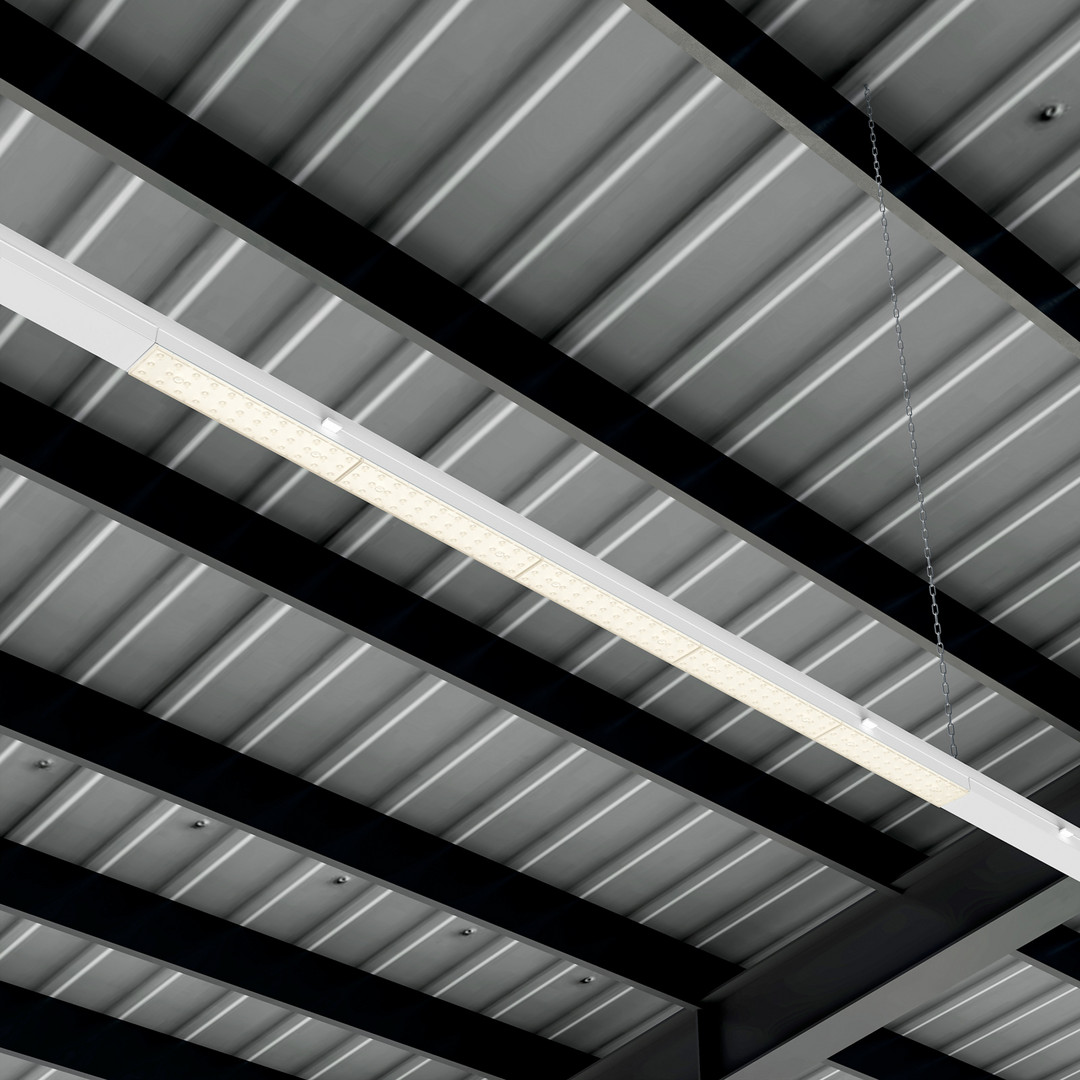

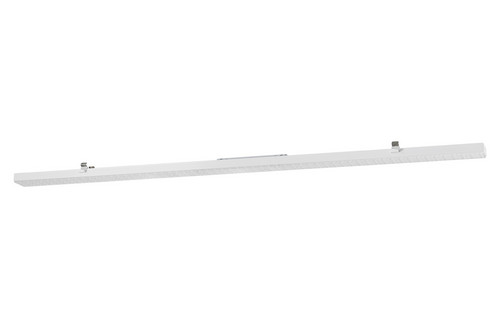

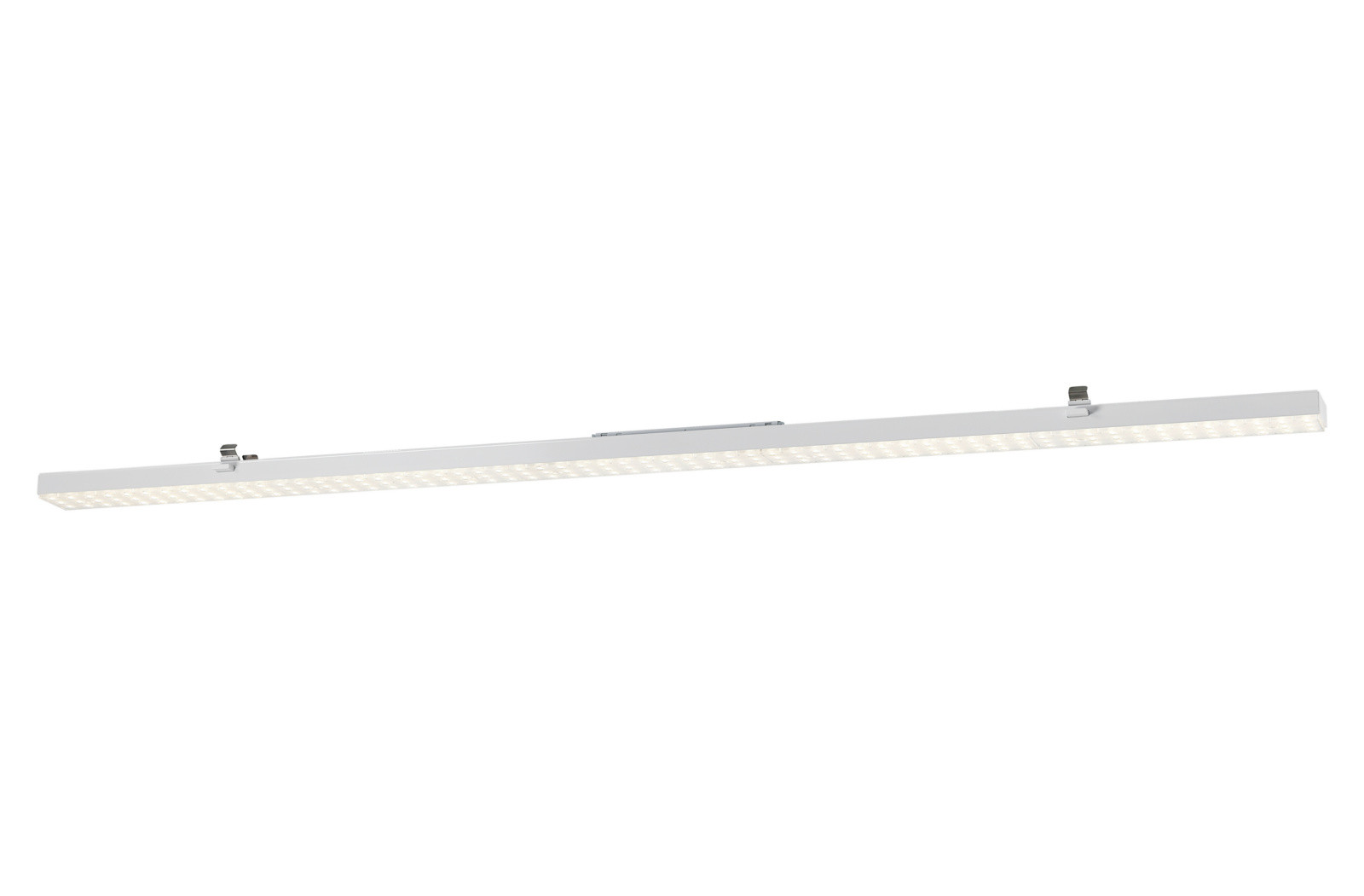

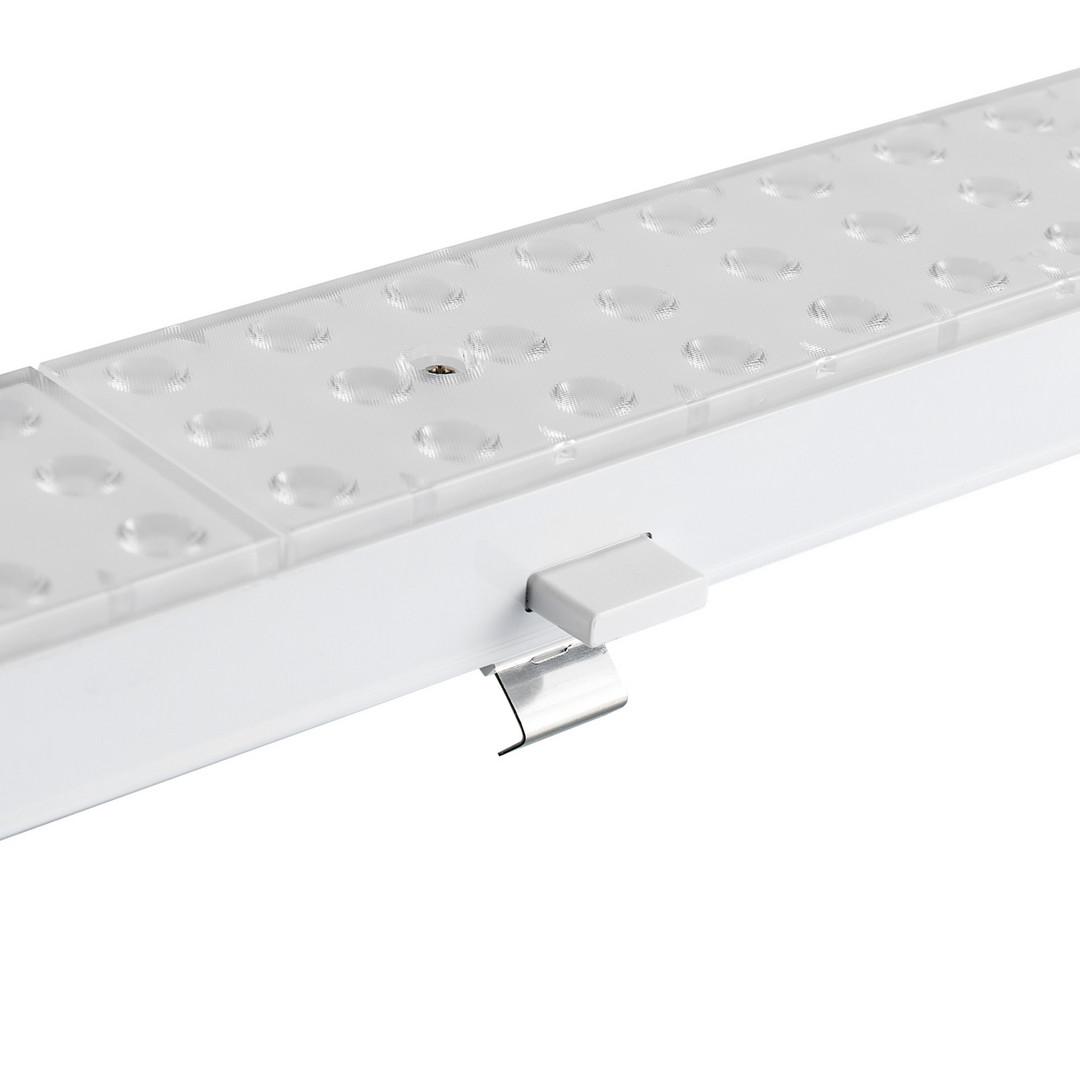

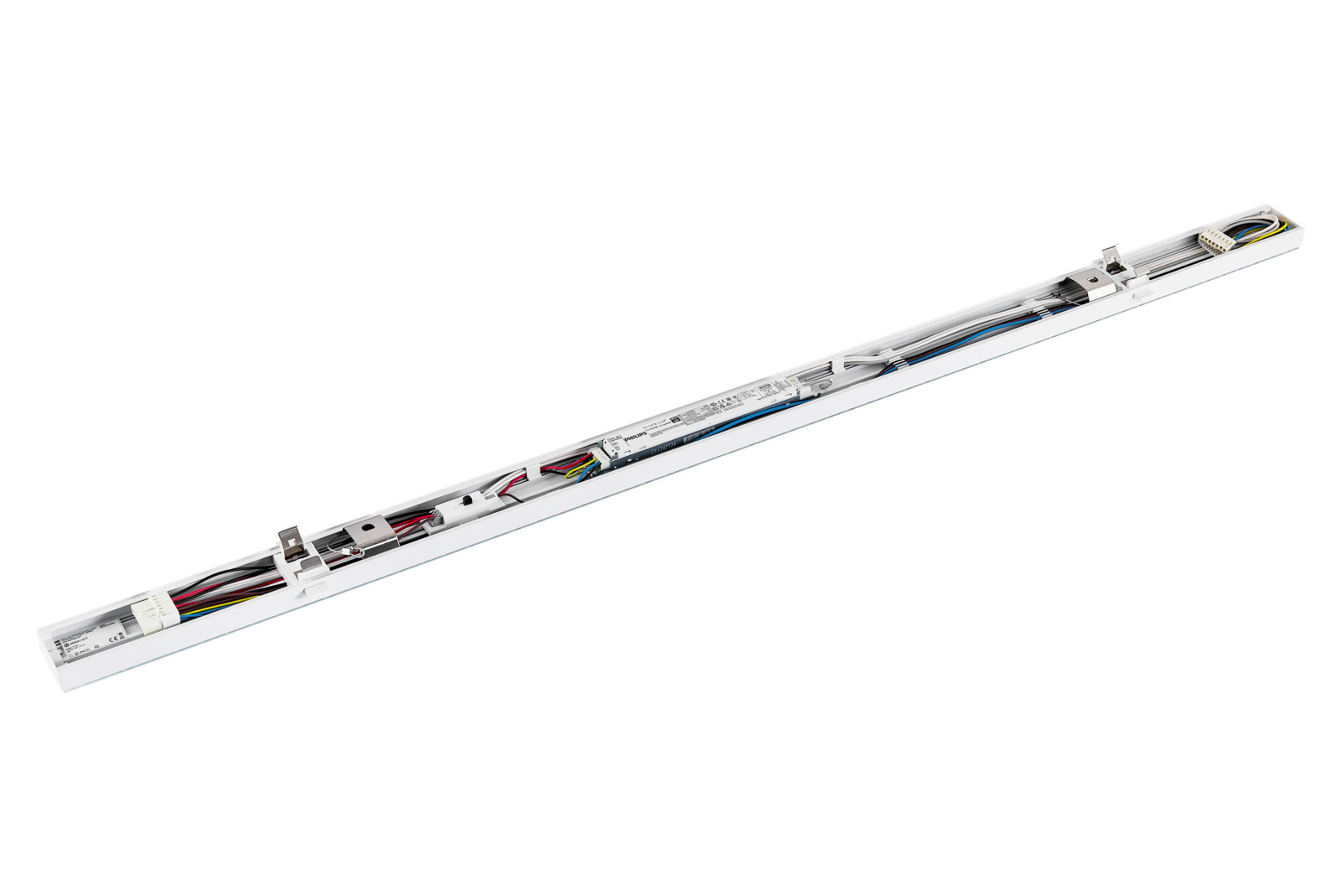

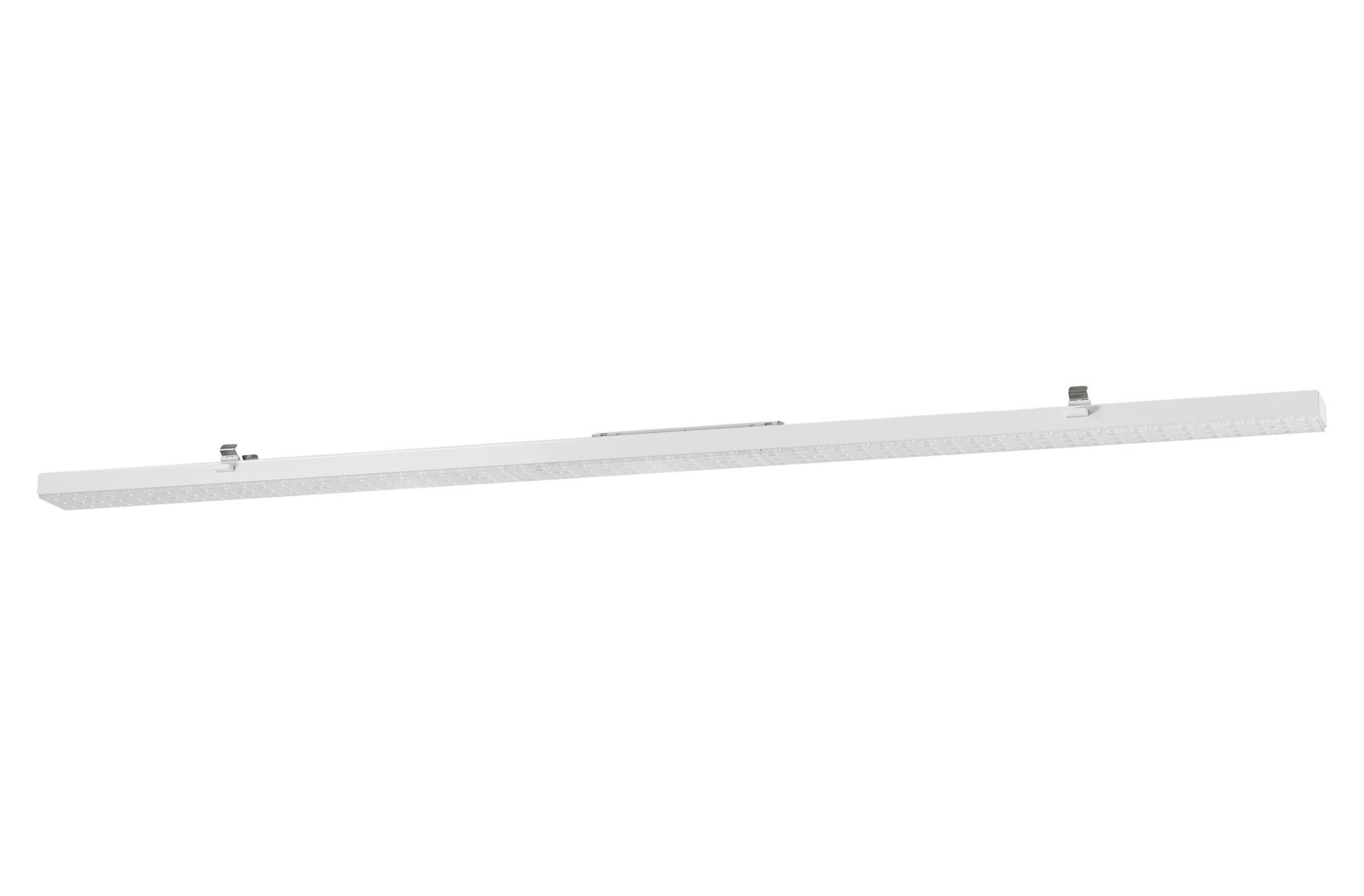

Trunking system - Sanotrunk Universal 30 degree, 70 W, DALI, 4000 K, White
