Zu diesem Artikel gibt es einen Nachfolger:
Merkmale
| Housing Material | Aluminium |
| Housing Color, Color System | Traffic white RAL 9016 |
| Housing Color | White |
| Surface structure | Matt |
| Lightcolor | Neutral white |
| Color Temperature | 4000 K |
| CRI (Ra) | 95 |
| Rated Luminous Flux | 10900 lm |
| Warranty (years) | 5 |
| Inrush Current max. | 34.4 A / 160 µs |
| Rated Angle of Reflection | 115 Degree |
| Rated Angle of Reflection 2 | 50 Degree |
| badge_neu_en | true |
| badge_ausgelistet_en | false |
| Product state | NEW |
| Product Type | Pendant lamp |
| badge_sale_en | false |
| eShop visible | yes |
| UGR | 6 |
| Suitable for Computer Workstations | Yes |
| Dimmable | Yes |
| Control | DALI 2.0 / DT6 D4i |
| Motion Detector | No |
| Length | 1391 mm |
| Width | 64 mm |
| Height | 35 mm |
| Base length | 603 mm |
| Base width | 52 mm |
| Base height | 35 mm |
| Pendulum Length max. | 2500 mm |
| Rated Input Voltage | 220-240 V/AC |
| Frequency | 50 / 60 Hz |
| Rated Input | 77.0 W |
| Voltage range DC | 176-280 V/DC |
| Voltage range emergency lighting | 200-264 V/DC |
| Protection Class | Protection class I/protective grounding |
| IP Protection Class | IP 20 |
| IK Protection Class | IK03 |
| Light Source | LED |
| Number of Light Sources | 2 PCS |
| Luminous Efficiency | 141.5 lm/W |
| Light direction | Top |
| Colour Consistency | 3 SDCM |
| Life Time L70 / B50 | 72000 h |
| Life Time L80 / B10 | 50000 h |
| Life Time L80 / B50 | 51000 h |
| Switching Cycles | 100000 PCS |
| Product weight | 4800 g |
| Connection Type | Clamp |
| Power Supply Unit incl. | Yes |
| Power Supply Unit Changeable | Yes by technician |
| Power Consumption | 77 kWh/1000h |
| Power Factor | 0.95 |
| Max. units per MCB B10 | 12 PCS |
| Max. units per MCB B16 | 19 PCS |
| Max. units per MCB C10 | 16 PCS |
| Max. units per MCB C16 | 25 PCS |
| Working Temperature | -20 to 45 °C |
| Surface Temperature max. | 45 °C |
| Storage Temperature | -40 to 80 °C |
| Mounting Type | Top mounting |
| Mounting Location | Inside |
| Mounting Area | Ceiling installation |
| Functions | Corridor function DALI |
Verkaufsdaten
| Mindestbestellmenge | 1 |
| Bestellschritt | 1 |
Abbildung ähnlich

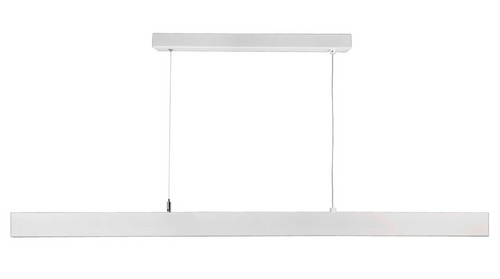

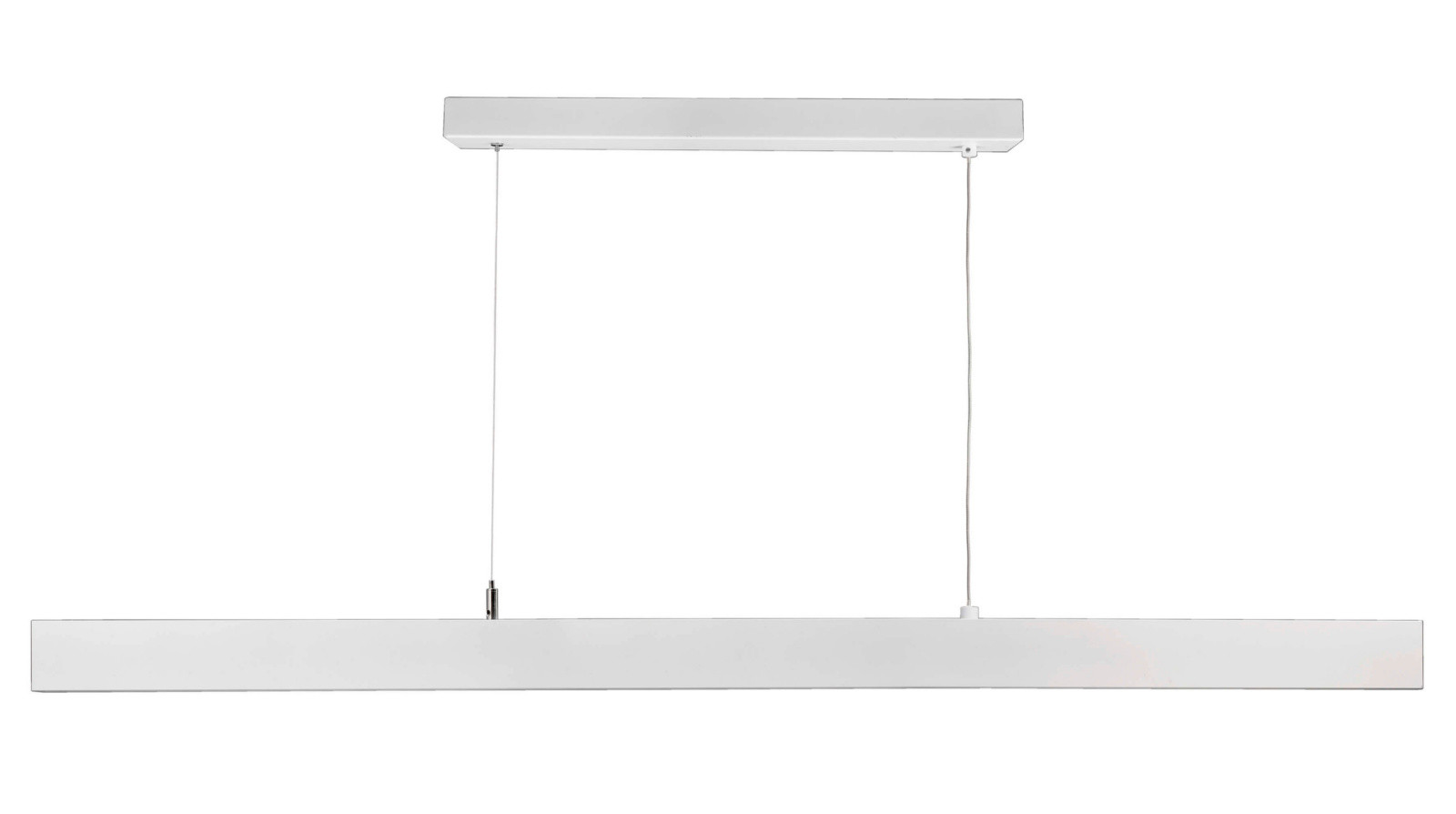

Pendelleuchte - Set, D Profession Up and Down, 60 W, DALI, 4000 K, Weiß
620117
4042943170811
Sale
173,30 EUR
(exkl. MwSt.)
je 1
Funktionen
Verkaufsdaten
| Mindestbestellmenge | 1 |
| Bestellschritt | 1 |
Merkmale
| Housing Material | Aluminium |
| Housing Color, Color System | Traffic white RAL 9016 |
| Housing Color | White |
| Lightcolor | Neutral white |
| Color Temperature | 4000 K |
| CRI (Ra) | 80 |
| Rated Luminous Flux | 7180 lm |
| Warranty (years) | 5 |
| Rated Angle of Reflection | 110 Degree |
| Rated Angle of Reflection 2 | 24 Degree |
| badge_neu_en | false |
| badge_ausgelistet_en | false |
| Product state | SALE |
| Product Type | Pendant lamp |
| badge_sale_en | true |
| eShop visible | yes |
| Dimmable | Yes |
| Control | DALI 1.0 / DT6 |
| Motion Detector | No |

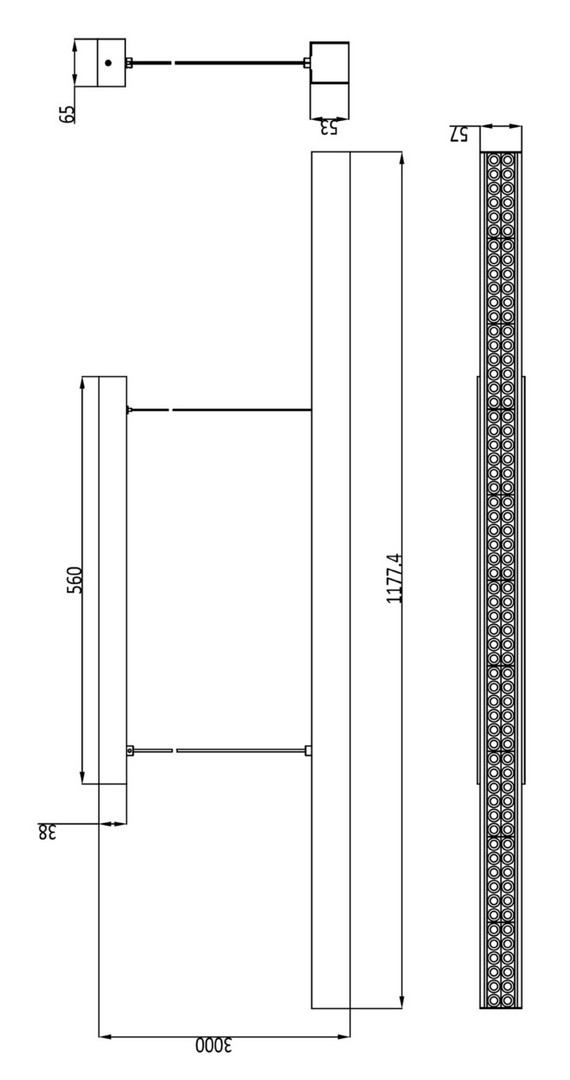

| Length | 1177.4 mm |
| Width | 53 mm |
| Height | 53 mm |
| Base length | 560 mm |
| Base width | 65 mm |
| Base height | 38 mm |
| Pendulum Length max. | 3000 mm |
| Rated Input Voltage | 200-240 V/AC |
| Frequency | 50 / 60 Hz |
| Rated Input | 60.0 W |
| Protection Class | Protection class I/protective grounding |
| IP Protection Class | IP 20 |
| Light Source | LED |
| Luminous Efficiency | 119.7 lm/W |
| Light Distribution | Symmetric |
| Light direction | Top |
| Colour Consistency | 6 SDCM |
| Life Time L70 / B50 | 50000 h |
| Switching Cycles | 25000 |
| Product weight | 3660 g |
| Connection Type | Clamp |
| Power Supply Unit incl. | Yes |
| Power Supply Unit Changeable | Yes by technician |
| Power Consumption | 60 kWh/1000h |
| Power Factor | 0.9 |
| Working Temperature | -20 to 40 °C |
| Storage Temperature | -30 to 60 °C |
| Mounting Type | Top mounting |
| Mounting Location | Inside |
| Mounting Area | Ceiling installation |
| Scope of Delivery | 1x installation material |
| UGR | 19 |
| Energieeffizenzklasse | E |
