Zu diesem Artikel gibt es einen Nachfolger:

Auslaufartikel

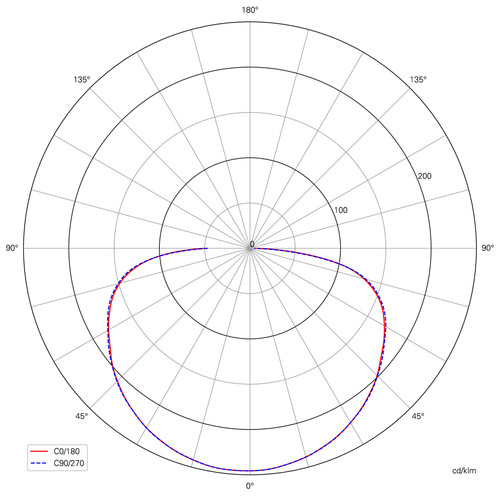

Artikelbild

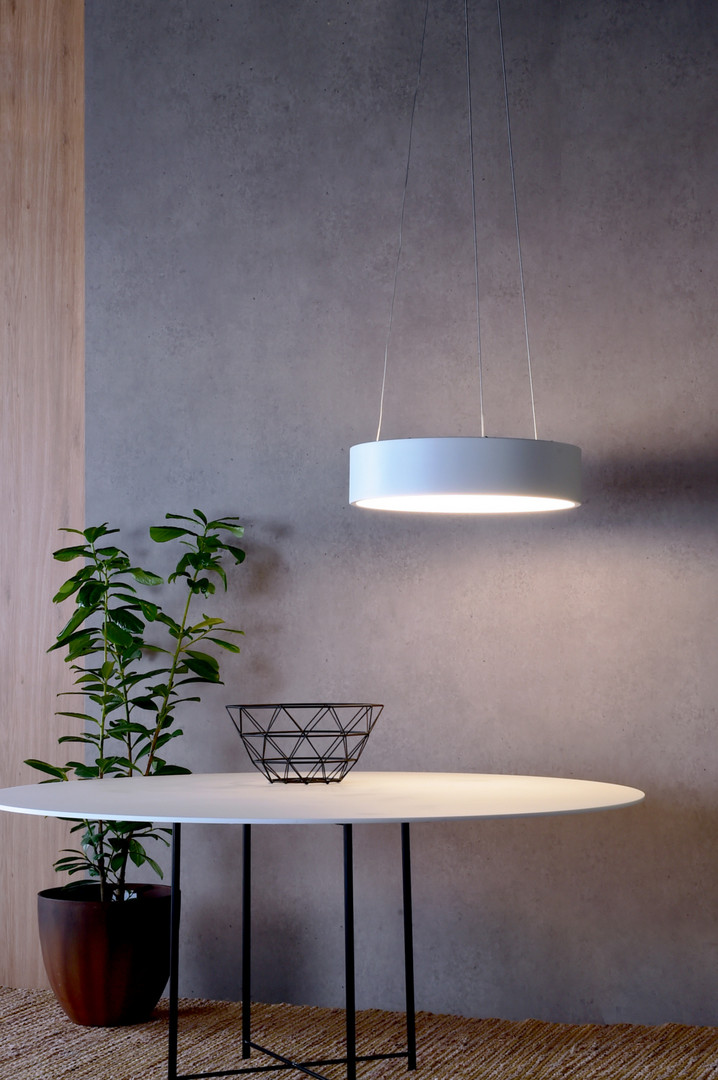

Pendelleuchte - Sculptoris 600 mm, 42 W, DIM, 3000/4000 K, Weiß Artikelnummer: 342185

Merkmale

Housing Material	Aluminium
Housing Color, Color System	Traffic white RAL 9016
Housing Color	White
Surface structure	Matt
Lightcolor	Neutral white/warm white
Color Temperature	3000/4000 K
CRI (Ra)	80
Rated Luminous Flux	3000/3100 lm
Rated Angle of Reflection	150 Degree
badge_neu_en	false
badge_ausgelistet_en	true
Product Type	Pendant lamp
badge_sale_en	false
eShop visible	yes
Dimmable	Yes
Control	Leading-edge dimmer
Motion Detector	No
Height	110 mm
Diameter	600 mm
Base height	65 mm
Base diameter	220 mm
Pendulum Length max.	1800 mm
Rated Input Voltage	220-240 V/AC
Frequency	50 / 60 Hz
Rated Input	42.0 W
Protection Class	Protection class I/protective grounding
IP Protection Class	IP 20
IK Protection Class	IK04
Light Source	LED
Number of Light Sources	1
Luminous Efficiency	73.8 lm/W
Light Distribution	Symmetric
Light direction	Top
Colour Consistency	6 SDCM
Life Time L70 / B50	30000 h
Switching Cycles	20000
Product weight	3065 g
Connection Type	Clamp
Power Supply Unit incl.	Yes
Power Supply Unit Changeable	Yes by technician
Power Consumption	42 kWh/1000h
Power Factor	0.95
Max. units per MCB B10	35 PCS
Max. units per MCB B16	56 PCS
Max. units per MCB C10	74 PCS
Max. units per MCB C16	118 PCS
Working Temperature	-10 to 45 °C
Storage Temperature	-10 to 45 °C
Mounting Type	Top mounting
Mounting Location	Inside
Mounting Area	Ceiling installation

Verkaufsdaten

Mindestbestellmenge	1
Bestellschritt	1

Produktdatenblatt

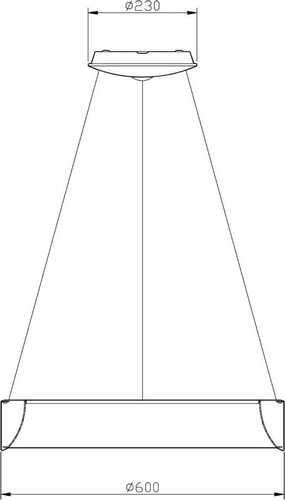

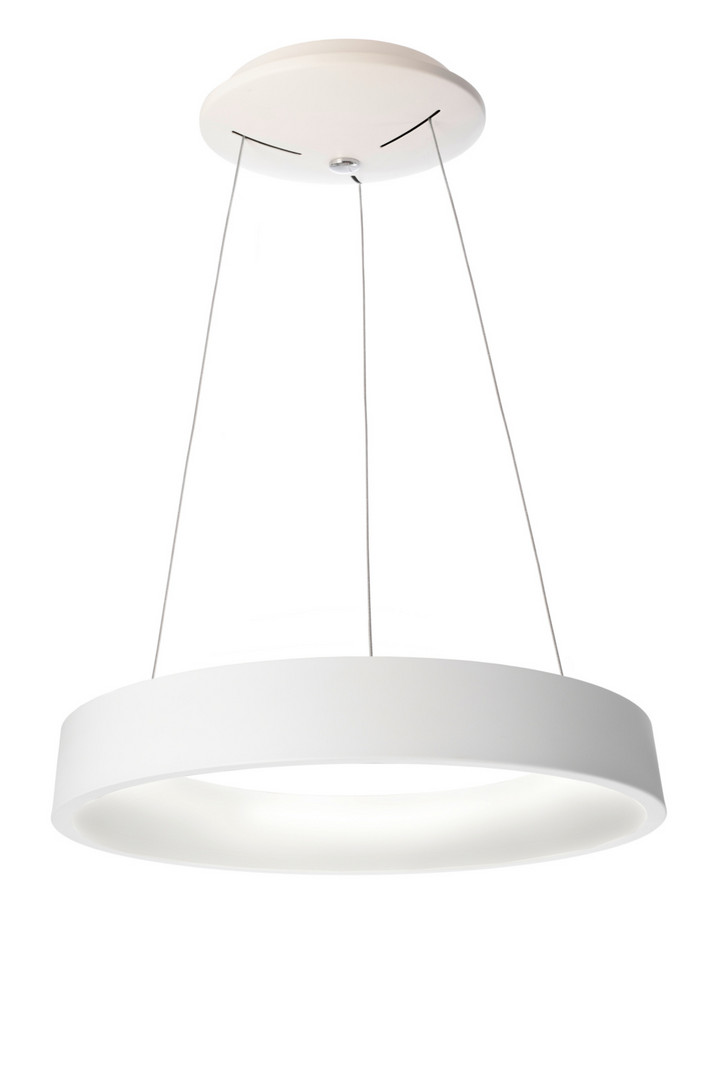

Artikelbild

Abbildung ähnlich

Pendelleuchte - Sculptoris 600 mm, 42 W, DIM, 4000 K, Weiß

Artikelnummer: 342125 EAN: 4042943151070

Sale

146,63 EUR (exkl. MwSt.)

je 1

Funktionen

Verkaufsdaten

Mindestbestellmenge	1
Bestellschritt	1

IP-Schutz - Die IP-Schutzart gibt mit zwei Ziffern den Schutz spannungsführender Teile gegen das Eindringen von Fremdkörpern und Berührung (erste Ziffer) sowie gegen Wasser (zweite Ziffer) an. Es gilt: Je höher die jeweilige Ziffer, desto höher der Schutz.

Abstrahlrichtung nach oben und unten

Montage im Innenbereich

Merkmale

Housing Material	Aluminium
Housing Color, Color System	Signal white RAL 9003
Housing Color	White
Surface structure	Matt
Lightcolor	Neutral white
Color Temperature	4000 K
CRI (Ra)	80
Rated Luminous Flux	2800 lm
Warranty (years)	5
Rated Angle of Reflection	150 Degree
badge_neu_en	false
badge_ausgelistet_en	false
Product state	SALE
Product Type	Pendant lamp
badge_sale_en	true
eShop visible	yes
Dimmable	Yes
Control	Leading-edge dimmer
Motion Detector	No
Height	130 mm
Diameter	600 mm
Base height	65 mm
Base diameter	230 mm
Pendulum Length max.	1000 mm
Rated Input Voltage	220-240 V/AC
Frequency	50 / 60 Hz
Rated Input	42.0 W
Protection Class	Protection class I/protective grounding
IP Protection Class	IP 20
IK Protection Class	IK04
Light Source	LED
Luminous Efficiency	66.7 lm/W

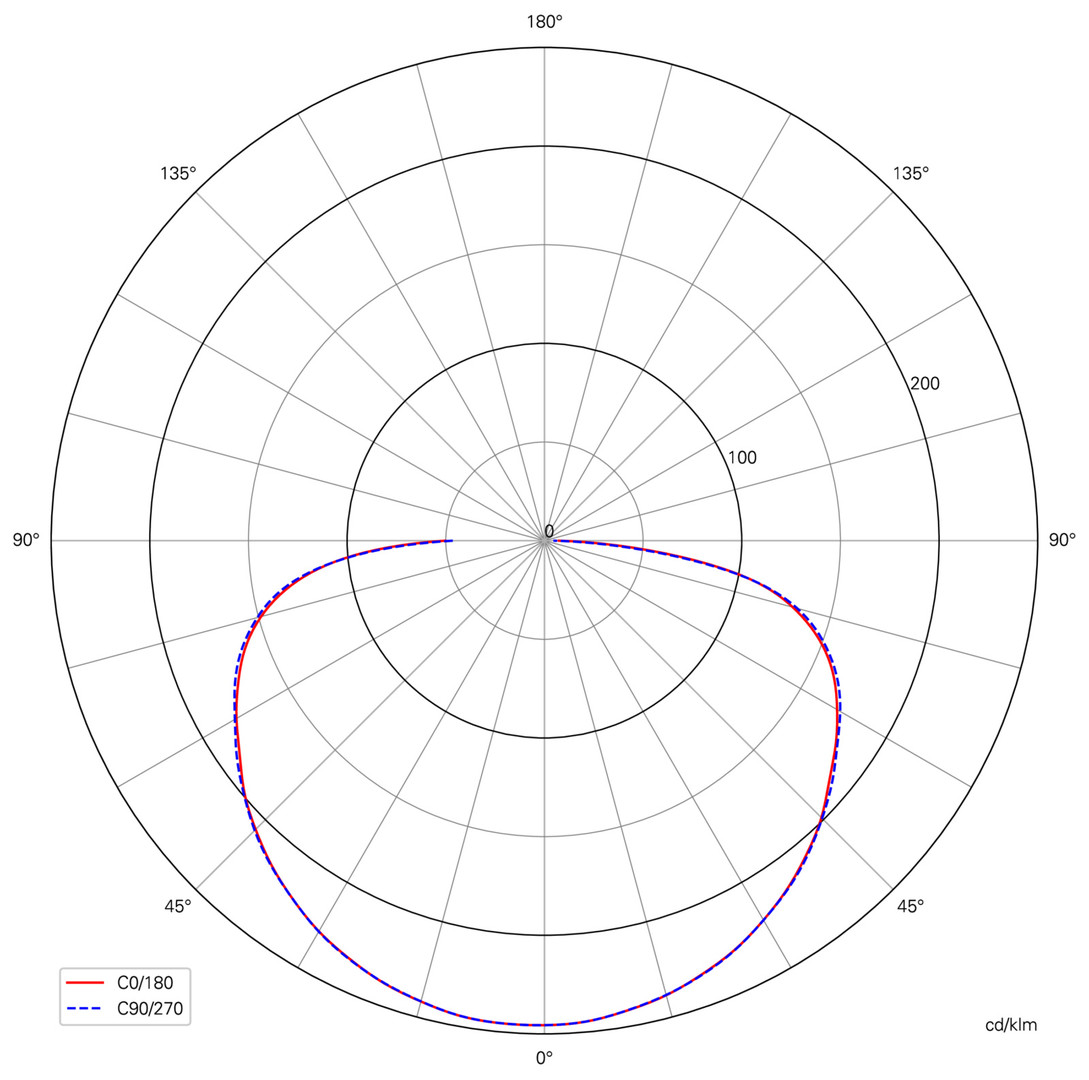

Light Distribution	Symmetric
Light direction	Top
Colour Consistency	6 SDCM
Life Time L70 / B50	20000 h
Switching Cycles	15000
Product weight	2270 g
Connection Type	Clamp
Power Supply Unit incl.	Yes
Power Supply Unit Changeable	Yes by technician
Power Consumption	42 kWh/1000h
Power Factor	0.90
Working Temperature	-10 to 45 °C
Storage Temperature	-10 to 45 °C
Mounting Type	Top mounting
Mounting Location	Inside
Mounting Area	Ceiling installation
Scope of Delivery	1x installation material
Energieeffizenzklasse	E

Anhänge

Bedienungsanleitung

342125_manual.pdf (246.17 KB)

342125_datasheet.pdf (331.77 KB)

EU-Produktdatenblatt

EPREL Datenblatt

342125_EDS.pdf (196.99 KB)

LDT (Lichtplanung)

342125_LDT.ldt (2.15 KB)

342125_tender_text.txt (661 Bytes)
