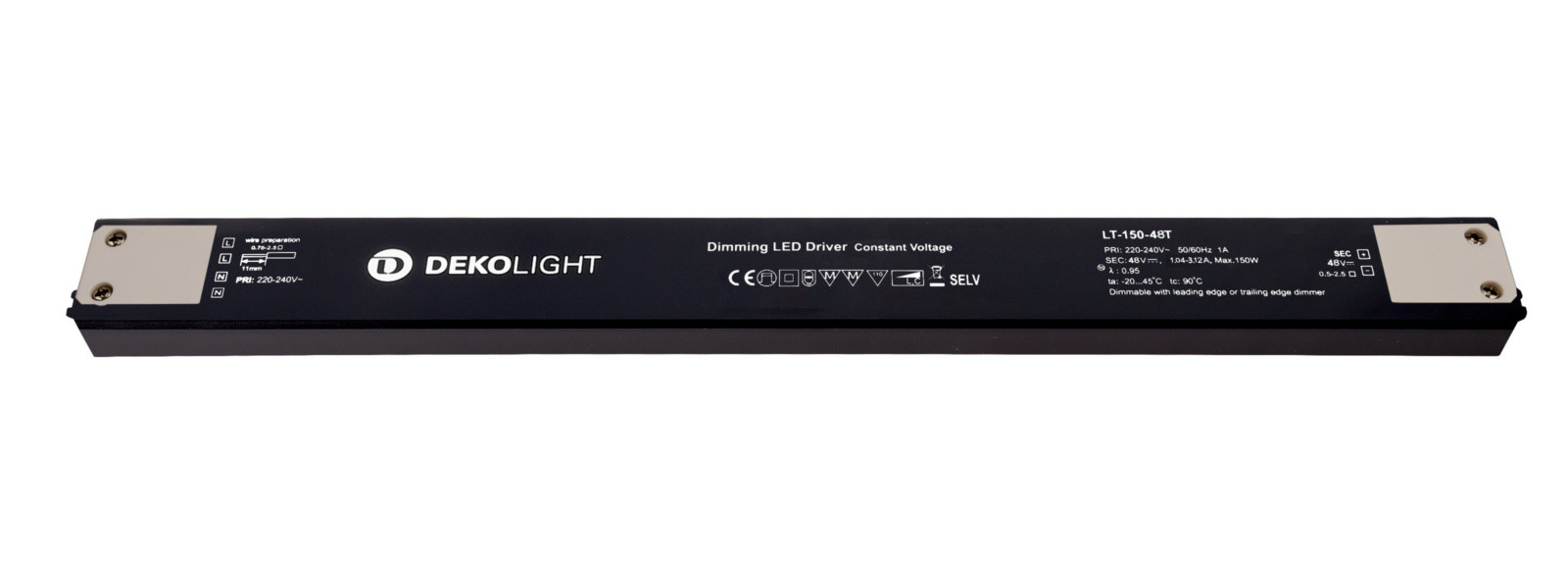

Netzgerät (CV, DC) dimmbar - Long-Flat, DIM, CV, 48 V 50-150 W

Artikelnummer: 862269 EAN: 4042943180568

103,95 EUR (exkl. MwSt.)

je 1

Mindestbestellmenge	1
Bestellschritt	1

Rated Input Voltage	220-240 V/AC
Frequency	50 / 60 Hz
Operating Mode	Constant voltage
Output Voltage	48 V/DC
Warranty (years)	5
Output Current in mA	1040-3125 mA
Inrush Current max.	30 A / 300 µs
badge_neu_en	false
badge_ausgelistet_en	false
Product state	Stock Item
Product Type	Power supply unit (CV, DC) dimmable
badge_sale_en	false
Output Current max. in mA	3125 mA
Output Current min. in mA	1040 mA
eShop visible	yes
Number of Channels	1
Voltage range DC	176-250 V/DC
Power	50.0-150.0 W
Power min.	50.0 W
Power max.	150.0 W
Dimmable	Yes
Control	Leading-edge dimmer
Length	400 mm
Width	32 mm
Height	21.6 mm
Protection Class	Protection class II/protective insulation
IP Protection Class	IP 20
Housing Material	Plastic
Housing Color	Black
Power Factor	0.95
Max. units per MCB B10	2
Max. units per MCB B16	4
Max. units per MCB C10	5
Max. units per MCB C16	9
Connection Type	Clamp
Product weight	318 g
Working Temperature	-20 to 45 °C
Storage Temperature	-20 to 70 °C
Mounting Location	Inside
Functions	Short-circuit proof
Life Time	50000 h
Switching Cycles	100000
