Abbildung ähnlich

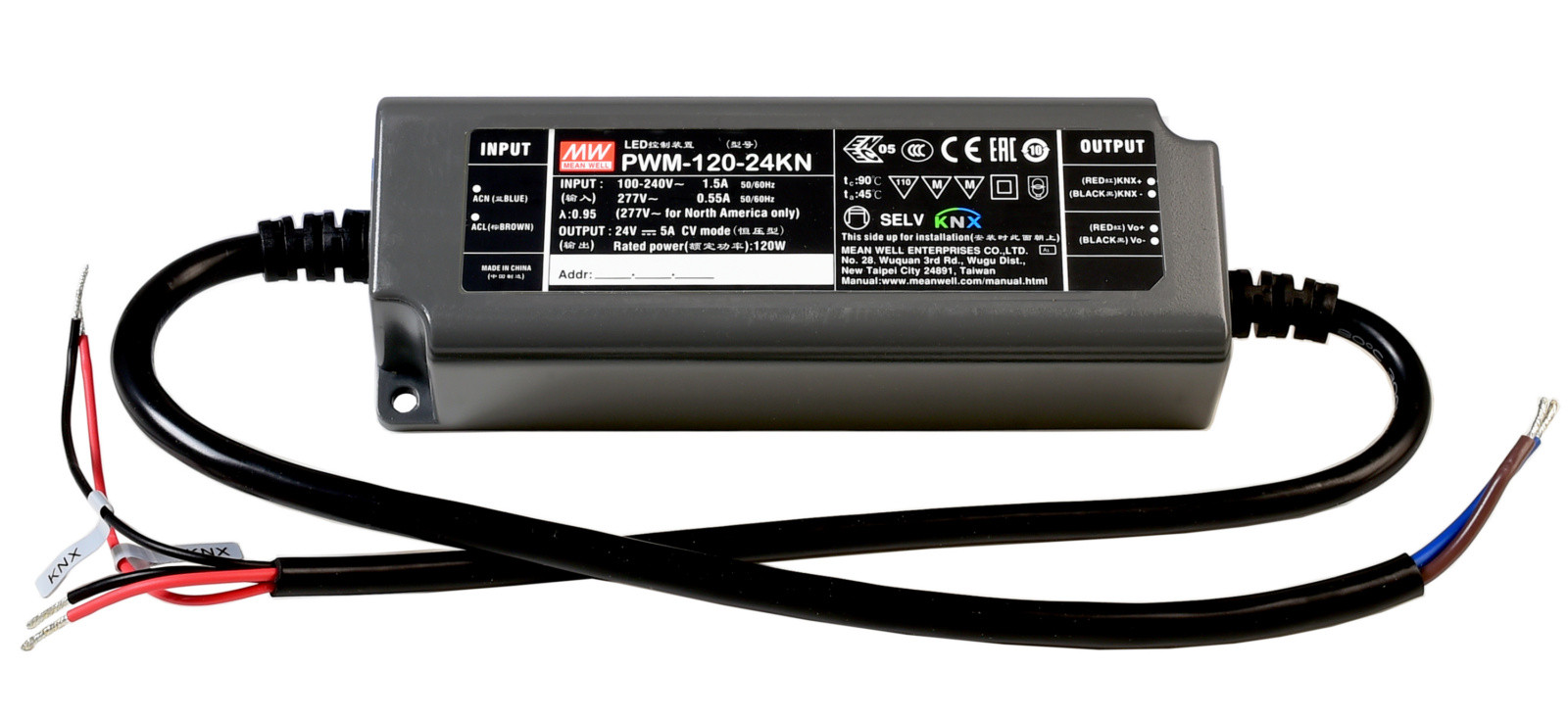

Netzgerät (CV, DC) dimmbar - CV, PWM-120-24KN
872113
4042943165992
167,95 EUR
(exkl. MwSt.)
je 1
Funktionen
Verkaufsdaten
| Mindestbestellmenge | 1 |
| Bestellschritt | 1 |
Merkmale
| Rated Input Voltage | 90-305 V/AC |
| Frequency | 50 / 60 Hz |
| Operating Mode | Constant voltage |
| Output Voltage | 24 V/DC |
| Output Current in mA | 0-5000 mA |
| Inrush Current max. | 60 A / 520 µs |
| badge_neu_en | false |
| badge_ausgelistet_en | false |
| Product state | Stock Item |
| Product Type | Power supply unit (CV, DC) dimmable |
| badge_sale_en | false |
| Output Current max. in mA | 5000 mA |
| Output Current min. in mA | 0 mA |
| eShop visible | yes |
| Number of Channels | 1 |
| UV resistance | Yes |
| Power | 120.0 W |
| Dimmable | Yes |
| Control | KNX |
| Length | 191 mm |
| Width | 63 mm |
| Height | 37.5 mm |
| Protection Class | Protection class II/protective insulation |
| IP Protection Class | IP 20 |
| Housing Material | Plastic |
| Housing Color | Black |
| Power Factor | 0.95 |
| Max. units per MCB B10 | 2 |
| Max. units per MCB B16 | 4 |
| Max. units per MCB C10 | 4 |
| Max. units per MCB C16 | 6 |
| Primary Connection | With free strand / conductor ends |
| Secondary Connection | Open cables |
| Product weight | 797 g |
| Working Temperature | -40 to 90 °C |
| Storage Temperature | -40 to 80 °C |
| Mounting Location | Inside |
| Functions | Short-circuit proof |
| Life Time | 50000 h |
| Switching Cycles | 25000 |
