Abbildung ähnlich

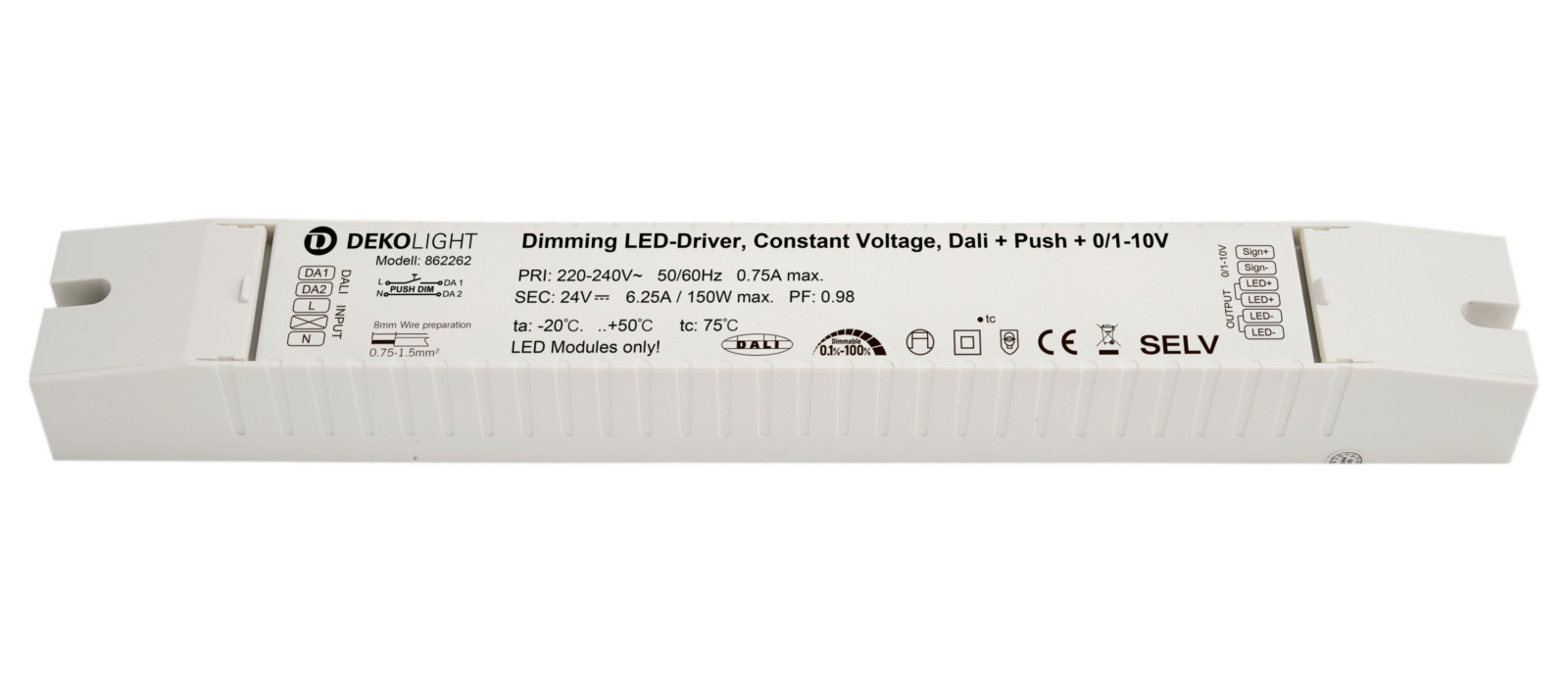

Netzgerät (CV, DC) dimmbar - BASIC, DIM, CV, LCP DALI, 24V, 150W, IP20

Artikelnummer: 862262 EAN: 4042943174994

135,95 EUR (exkl. MwSt.)

je 1

Mindestbestellmenge	1
Bestellschritt	1

Rated Input Voltage	220-240 V/AC
Frequency	50 / 60 Hz
Operating Mode	Constant voltage
Output Voltage	24 V/DC
Warranty (years)	5
Output Current in mA	0-6250 mA
Inrush Current max.	38 A / 430 µs
badge_neu_en	false
badge_ausgelistet_en	false
Product state	Stock Item
Product Type	Power supply unit (CV, DC) dimmable
badge_sale_en	false
Output Current max. in mA	6250 mA
Output Current min. in mA	0 mA
eShop visible	yes
Number of Channels	1
Power	150.0 W
Dimmable	Yes
Control	DALI 2.0 / DT6
Length	295 mm
Width	40 mm
Height	32 mm
Protection Class	Protection class II/protective insulation
IP Protection Class	IP 20
Housing Material	Plastic
Housing Color	White
Power Factor	0.98
Max. units per MCB B10	5 PCS
Max. units per MCB B16	9 PCS
Max. units per MCB C10	9 PCS
Max. units per MCB C16	15 PCS
Connection Type	Clamp
Product weight	412 g
Working Temperature	-20 to 50 °C
Storage Temperature	-40 to 85 °C
Mounting Location	Inside
Functions	Short-circuit proof
Life Time	50000 h
Switching Cycles	25000
