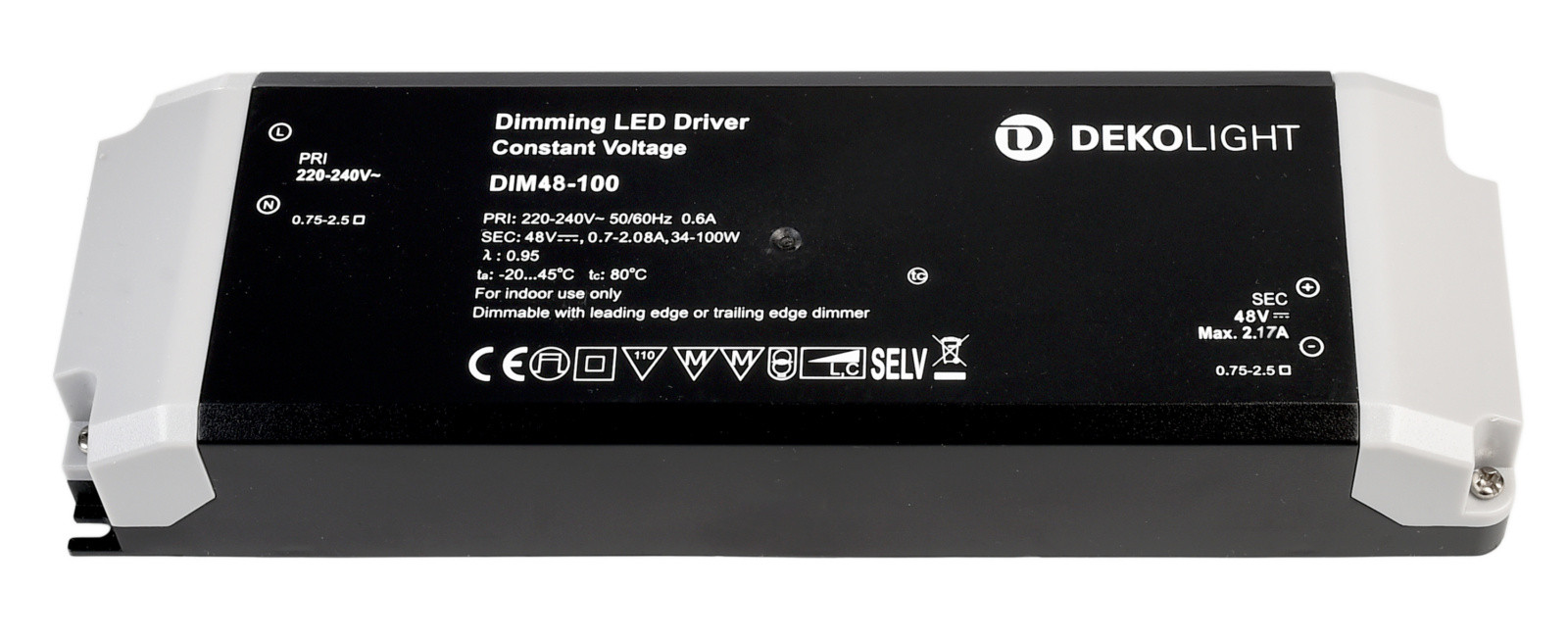

Netzgerät (CV, DC) dimmbar - BASIC, DIM, CV, 48 V 34-100 W

Artikelnummer: 862274 EAN: 4042943180674

115,95 EUR (exkl. MwSt.)

je 1

Mindestbestellmenge	1
Bestellschritt	1

Rated Input Voltage	220-240 V/AC
Frequency	50 / 60 Hz
Operating Mode	Constant voltage
Output Voltage	48 V/DC
Warranty (years)	5
Output Current in mA	700-2080 mA
Inrush Current max.	10 A / 300 µs
badge_neu_en	false
badge_ausgelistet_en	false
Product state	Stock Item
Product Type	Power supply unit (CV, DC) dimmable
badge_sale_en	false
Output Current max. in mA	2080 mA
Output Current min. in mA	700 mA
eShop visible	yes
Number of Channels	1
Voltage range DC	176-250 V/DC
Power	34.0-100.0 W
Power min.	34.0 W
Power max.	100.0 W
Dimmable	Yes
Control	Leading-edge dimmer
Length	210 mm
Width	67 mm
Height	34 mm
Protection Class	Protection class II/protective insulation
IP Protection Class	IP 20
Housing Material	Plastic
Housing Color	Black
Capacitive Load	140.74 nF
Power Factor	0.95
Max. units per MCB B10	15
Max. units per MCB B16	24
Max. units per MCB C10	16
Max. units per MCB C16	26
Connection Type	Clamp
Product weight	372 g
Working Temperature	-20 to 45 °C
Storage Temperature	-20 to 45 °C
Mounting Location	Inside
Functions	Short-circuit proof
