Zu diesem Artikel gibt es einen Nachfolger:

Netzgerät (CV, DC) dimmbar - BASIC, DIM, CV, LCP DALI, 24V, 240W, IP20 Artikelnummer: 862263

Rated Input Voltage	220-240 V/AC
Frequency	50 / 60 Hz
Operating Mode	Constant voltage
Output Voltage	24 V/DC
Output Current in mA	0-10000 mA
Inrush Current max.	60 A / 430 µs
badge_neu_en	false
badge_ausgelistet_en	false
Product Type	Power supply unit (CV, DC) dimmable
badge_sale_en	false
Output Current max. in mA	10000 mA
Output Current min. in mA	0 mA
eShop visible	yes
Warranty (years)	5
Product state	Stock Item
Number of Channels	1
Power	240.0 W
Dimmable	Yes
Control	DALI 2.0 / DT6
Length	360 mm
Width	40 mm
Height	32 mm
Protection Class	Protection class II/protective insulation
IP Protection Class	IP 20
Housing Material	Plastic
Housing Color	White
Power Factor	0.98
Connection Type	Clamp
Product weight	583 g
Working Temperature	-20 to 50 °C
Storage Temperature	-40 to 85 °C
Mounting Location	Inside
Functions	Short-circuit proof
Life Time	50000 h
Switching Cycles	25000

Mindestbestellmenge	1
Bestellschritt	1

Abbildung ähnlich

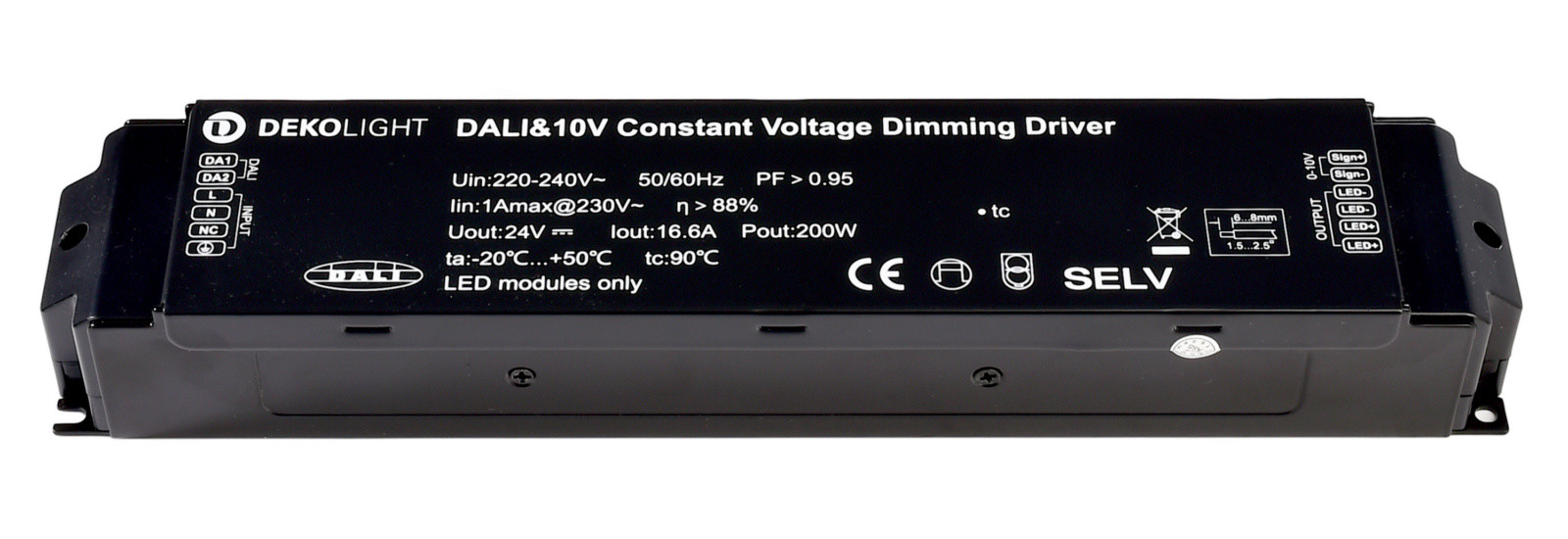

Netzgerät (CV, DC) dimmbar - BASIC, DIM, CV, 200AD-24V, DALI-Bus / Push / 1-10V

Artikelnummer: 862161 EAN: 4042943159588

Auslaufartikel

69,95 EUR (exkl. MwSt.)

je 1

Mindestbestellmenge	1
Bestellschritt	1

Rated Input Voltage	220-240 V/AC
Frequency	50 / 60 Hz
Operating Mode	Constant voltage
Output Voltage	24 V/DC
Output Current in mA	0-8300 mA
Inrush Current max.	27 A / 650 µs
badge_neu_en	false
badge_ausgelistet_en	true
Product Type	Power supply unit (CV, DC) dimmable
badge_sale_en	false
Output Current max. in mA	8300 mA
Output Current min. in mA	0 mA
eShop visible	yes
Number of Channels	1
Power	200.0 W
Dimmable	Yes
Control	DALI 1.0 / DT6

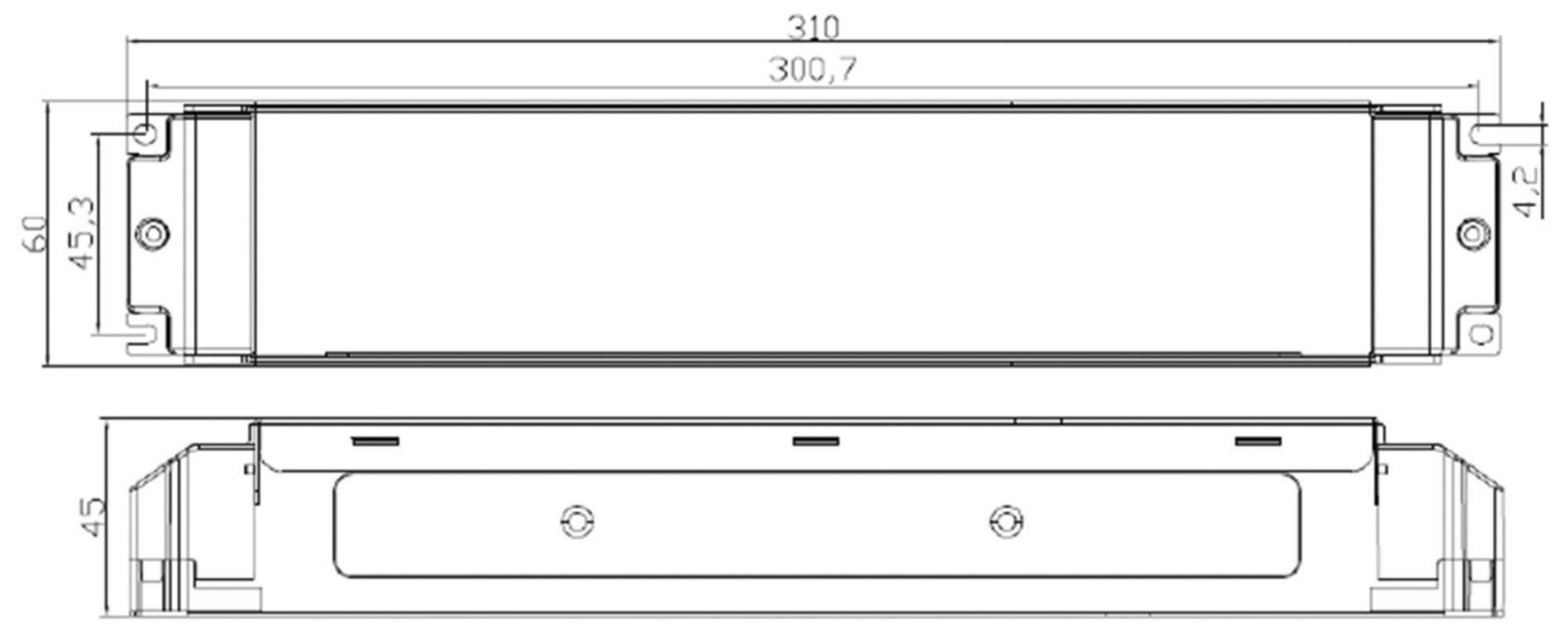

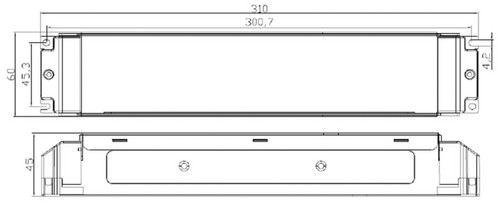

Length	310 mm
Width	60 mm
Height	45 mm
Protection Class	Protection class I/protective grounding
IP Protection Class	IP 20
Housing Material	Aluminium
Housing Color	Black
Max. units per MCB B10	4
Max. units per MCB B16	6
Max. units per MCB C10	7
Max. units per MCB C16	12
Connection Type	Clamp
Product weight	808 g
Working Temperature	-20 to 50 °C
Mounting Location	Inside
Functions	Short-circuit proof
