Abbildung ähnlich

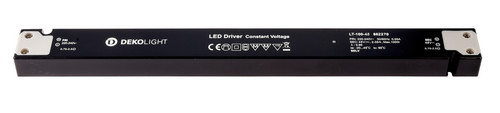

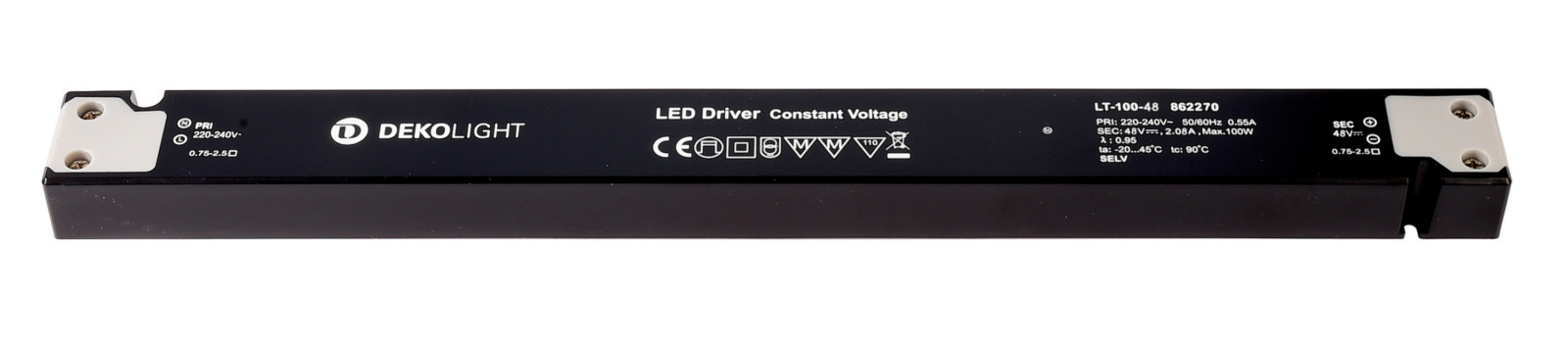

Netzgerät (CV, DC) - LONG-FLAT, CV, LT-100-48

Artikelnummer: 862270 EAN: 4042943180643

77,95 EUR (exkl. MwSt.)

je 1

Mindestbestellmenge	1
Bestellschritt	1

Rated Input Voltage	220-240 V/AC
Frequency	50 / 60 Hz
Operating Mode	Constant voltage
Output Voltage	48 V/DC
Warranty (years)	5
Output Current in mA	0-2080 mA
Inrush Current max.	40 A / 900 µs
badge_neu_en	false
badge_ausgelistet_en	false
Product state	Stock Item
Product Type	Power supply unit (CV, DC)
badge_sale_en	false
Output Current max. in mA	2080 mA
Output Current min. in mA	0 mA
eShop visible	yes
Number of Channels	1
Voltage range DC	176-250 V/DC
Power	100.0 W

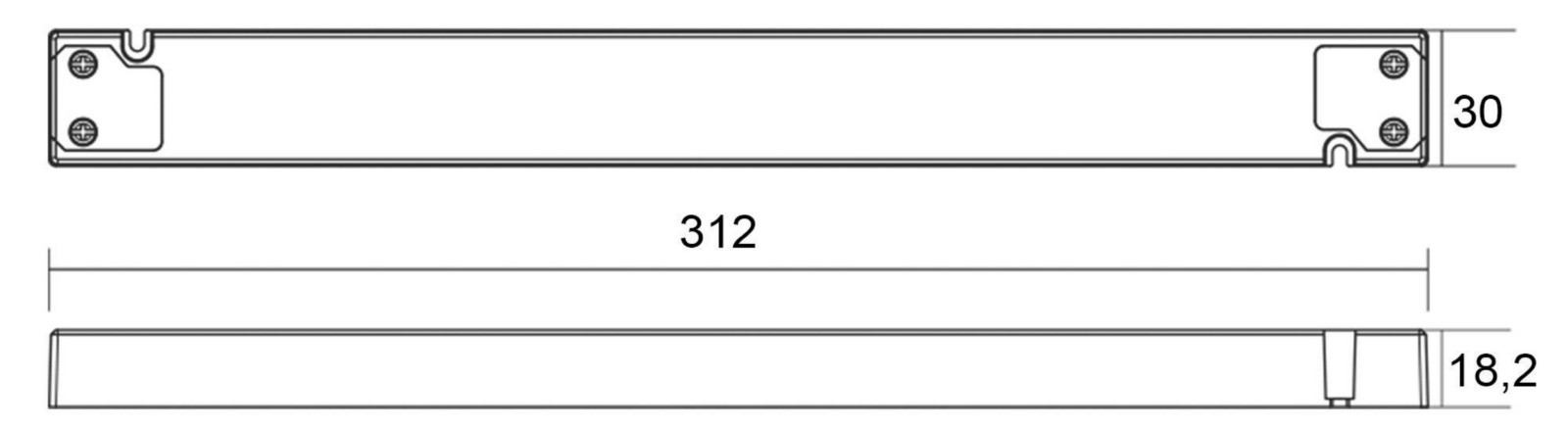

Length	312 mm
Width	30 mm
Height	18.2 mm
Protection Class	Protection class II/protective insulation
IP Protection Class	IP 20
Housing Material	Plastic
Housing Color	Black
Capacitive Load	451.2 nF
Power Factor	0.95
Max. units per MCB B10	3
Max. units per MCB B16	5
Max. units per MCB C10	7
Max. units per MCB C16	11
Connection Type	Clamp
Product weight	175 g
Working Temperature	-20 to 45 °C
Storage Temperature	-20 to 45 °C
Mounting Location	Inside
Functions	Short-circuit proof
Life Time	30000 h
