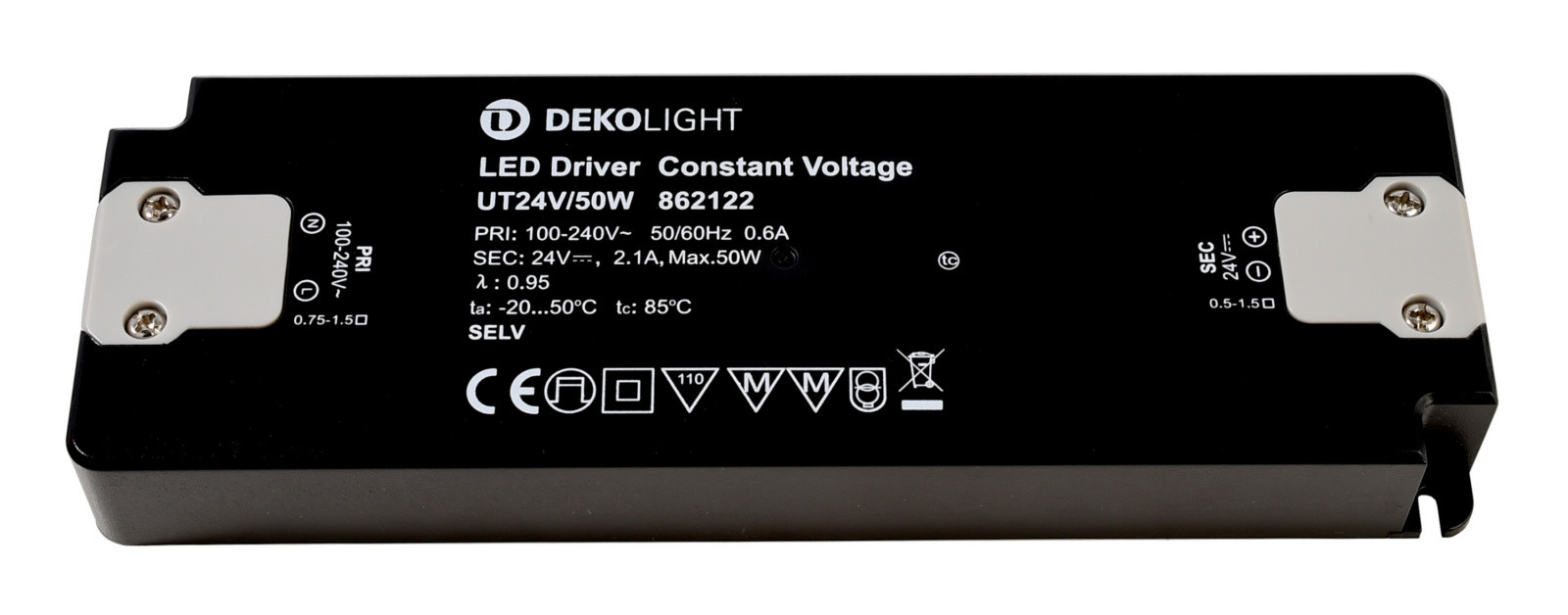

Netzgerät (CV, DC) - FLAT, CV, UT 24 V/50 W

Artikelnummer: 862122 EAN: 4042943153951

41,95 EUR (exkl. MwSt.)

je 1

Mindestbestellmenge	1
Bestellschritt	1

Rated Input Voltage	220-240 V/AC
Frequency	50 / 60 Hz
Operating Mode	Constant voltage
Output Voltage	24 V/DC
Warranty (years)	5
Output Current in mA	0-2100 mA
Inrush Current max.	60 A / 300 µs
badge_neu_en	false
badge_ausgelistet_en	false
Product state	Stock Item
Product Type	Power supply unit (CV, DC)
badge_sale_en	false
Output Current max. in mA	2100 mA
Output Current min. in mA	0 mA
eShop visible	yes
Number of Channels	1
Voltage range DC	176-250 V/DC
Power	50.0 W

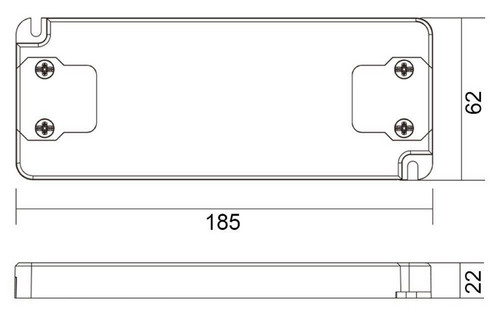

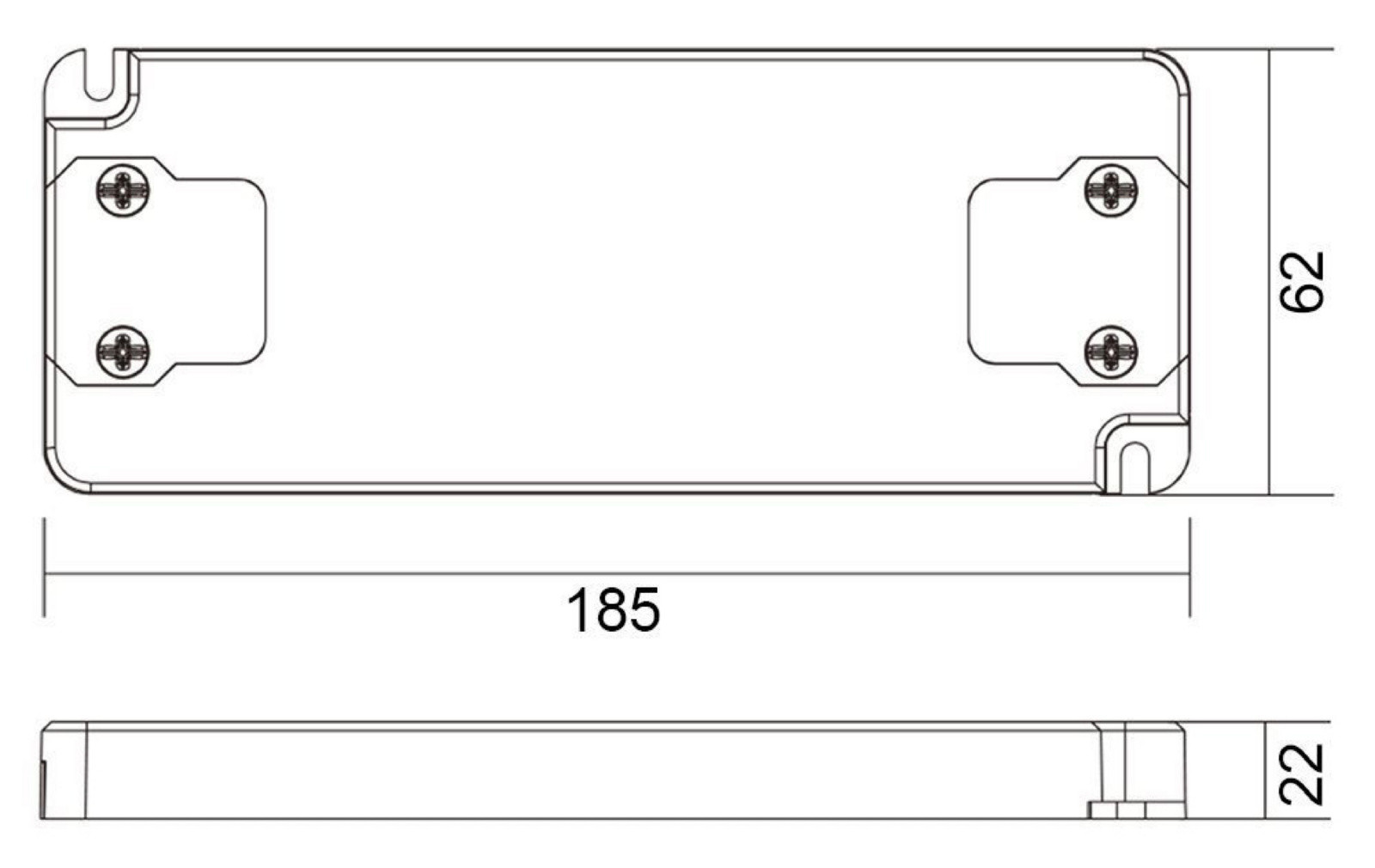

Length	185 mm
Width	62 mm
Height	22 mm
Protection Class	Protection class II/protective insulation
IP Protection Class	IP 20
Housing Material	Plastic
Housing Color	Black
Capacitive Load	604.5 nF
Power Factor	0.95
Max. units per MCB B10	5
Max. units per MCB B16	9
Max. units per MCB C10	12
Max. units per MCB C16	19
Connection Type	Clamp
Product weight	233 g
Working Temperature	-20 to 50 °C
Storage Temperature	-20 to 70 °C
Mounting Location	Inside
Functions	Short-circuit proof
Life Time	30000 h
