Abbildung ähnlich

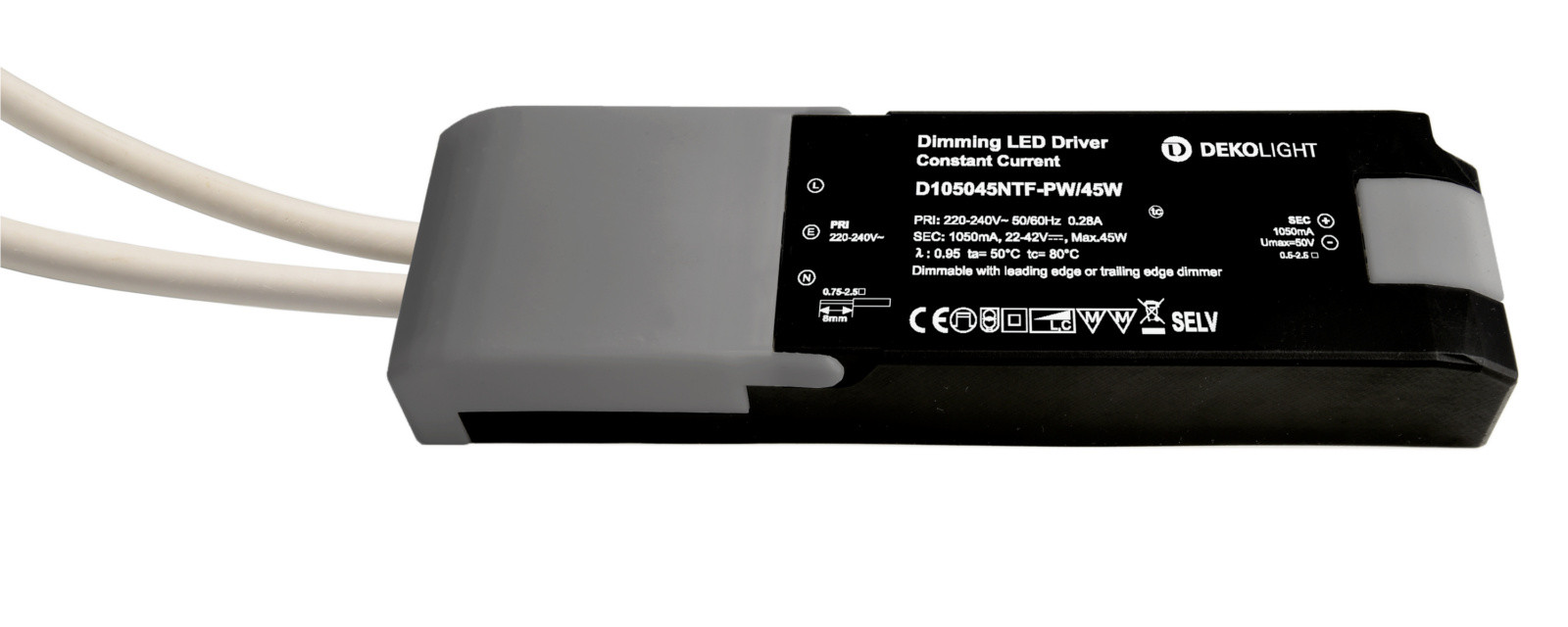

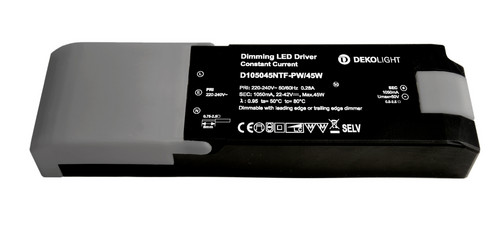

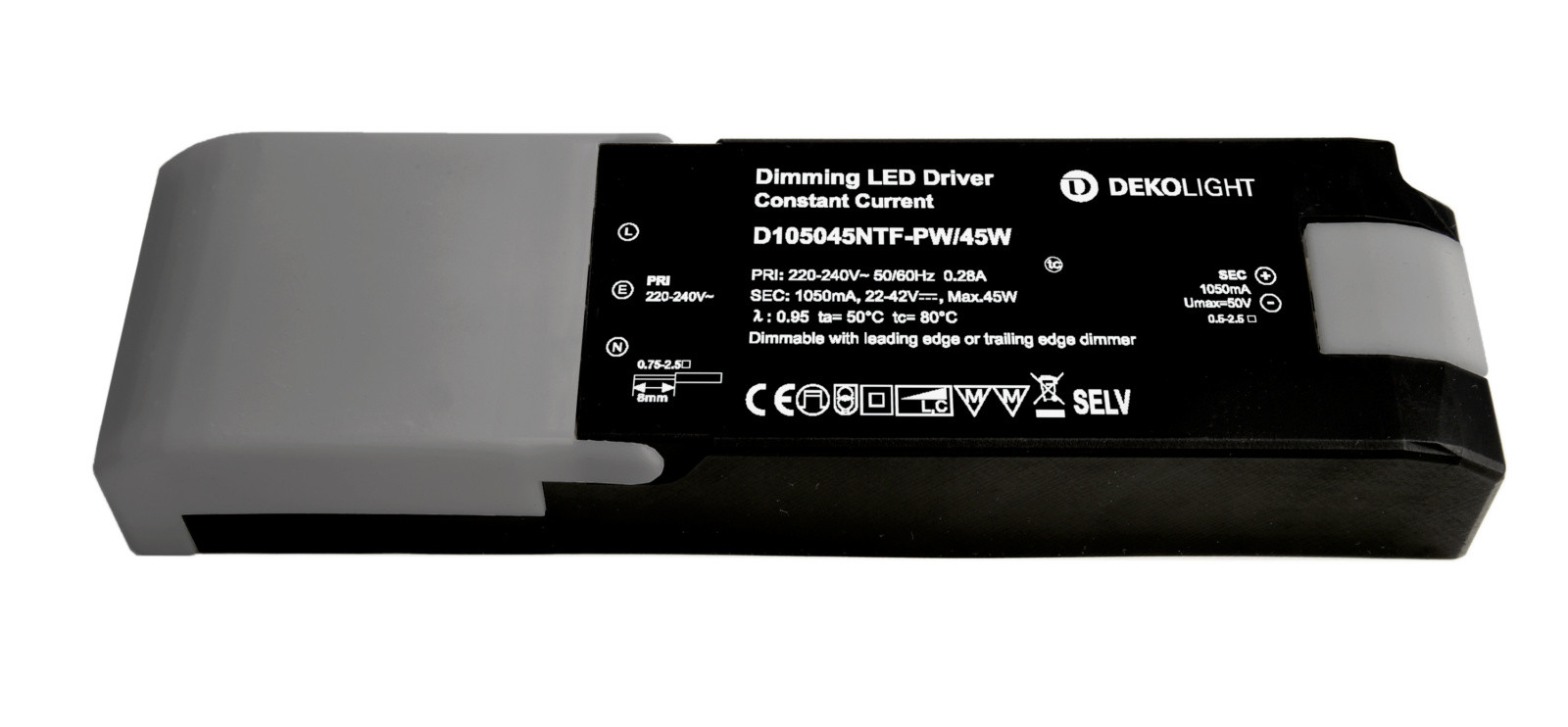

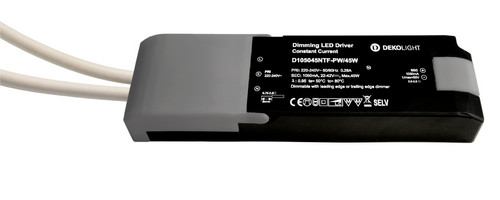

Netzgerät (CC, DC) dimmbar - QUICK, CC, 1050mA, 25-40V, 45W

Artikelnummer: 862258 EAN: 4042943172709

37,95 EUR (exkl. MwSt.)

je 1

Mindestbestellmenge	1
Bestellschritt	1

Rated Input Voltage	220-240 V/AC
Frequency	50 / 60 Hz
Operating Mode	Constant current
Output Voltage	22-42 V/DC
Output Current in mA	1050 mA
Warranty (years)	5
badge_neu_en	false
badge_ausgelistet_en	false
Product state	Stock Item
Product Type	Power supply unit (CC, DC) dimmable
badge_sale_en	false
eShop visible	yes
Number of Channels	1
Power	23.1-44.1 W
Power min.	23.1 W
Power max.	44.1 W
Through Wiring possible	Yes
Dimmable	Yes
Control	Trailing-edge dimmer
Length	208 mm
Width	60 mm
Height	32 mm
Protection Class	Protection class II/protective insulation
IP Protection Class	IP 20
Housing Material	Plastic
Housing Color	Black
Inrush Current max.	5 A / 100 µs
Power Factor	0.98
Max. units per MCB B10	35
Max. units per MCB B16	57
Max. units per MCB C10	35
Max. units per MCB C16	57

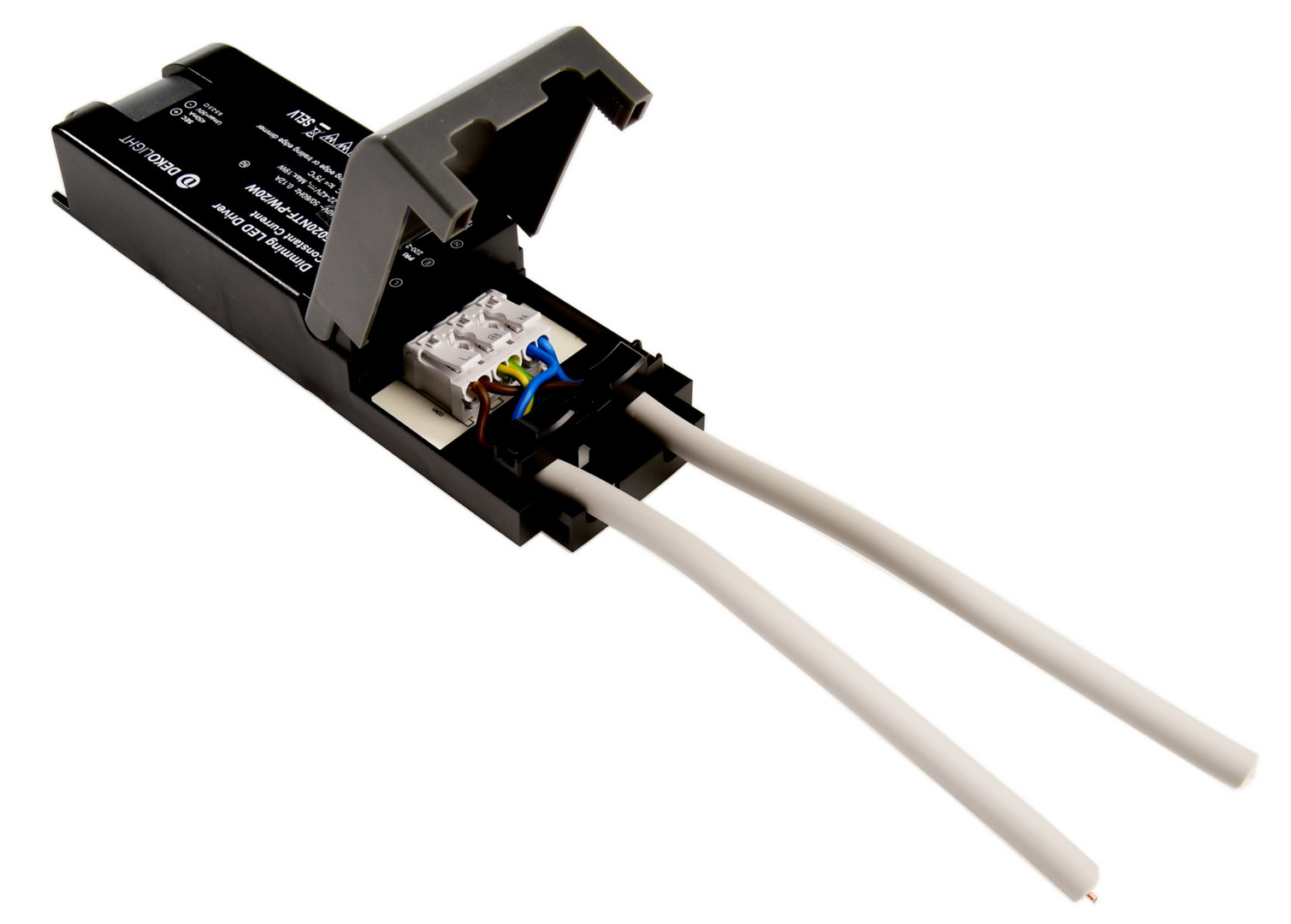

Connection Type	Clamp
Product weight	224 g
Working Temperature	-20 to 45 °C
Storage Temperature	-20 to 70 °C
Mounting Location	Inside
Functions	Short-circuit proof
Life Time	50000 h
