Abbildung ähnlich

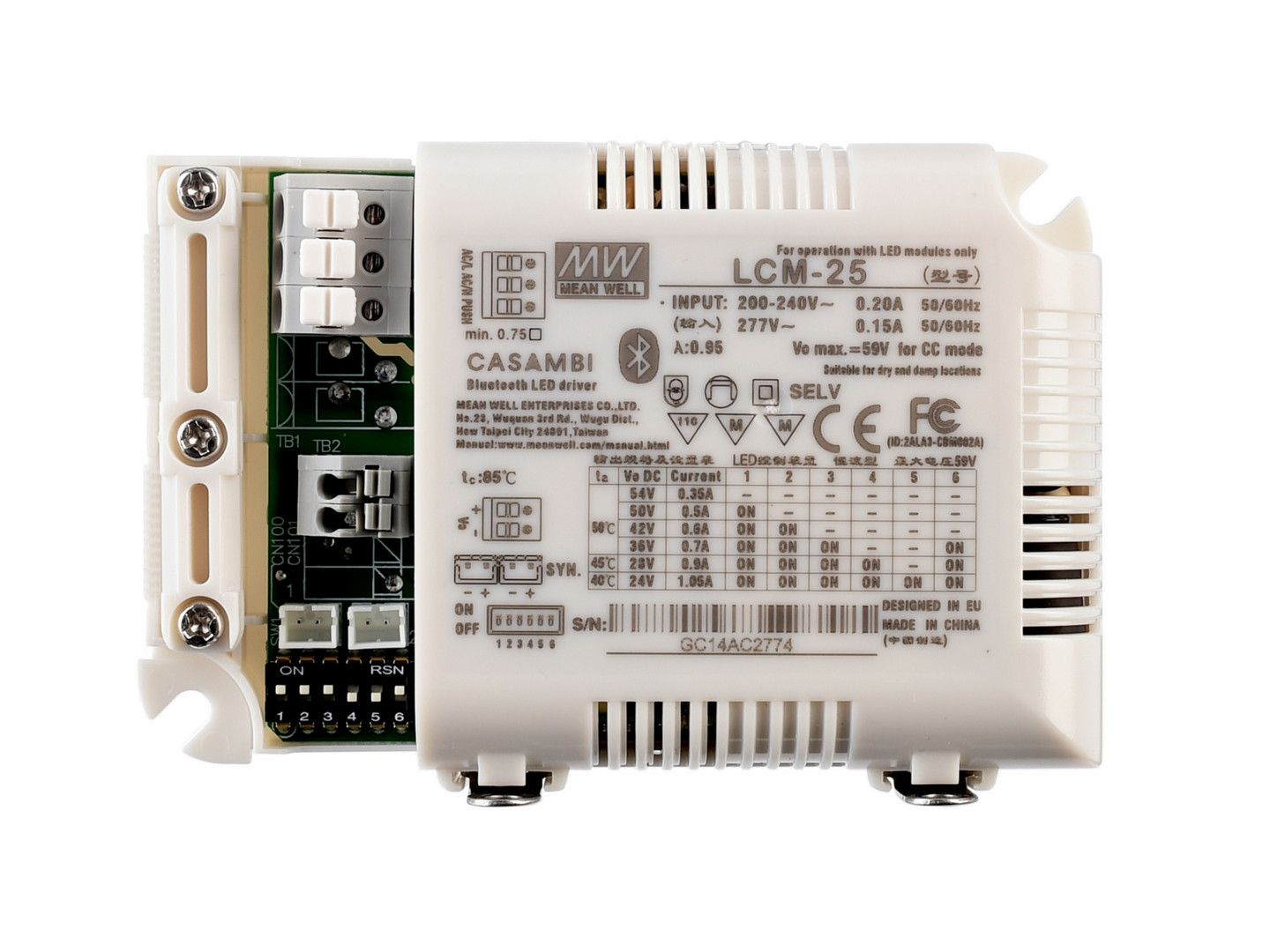

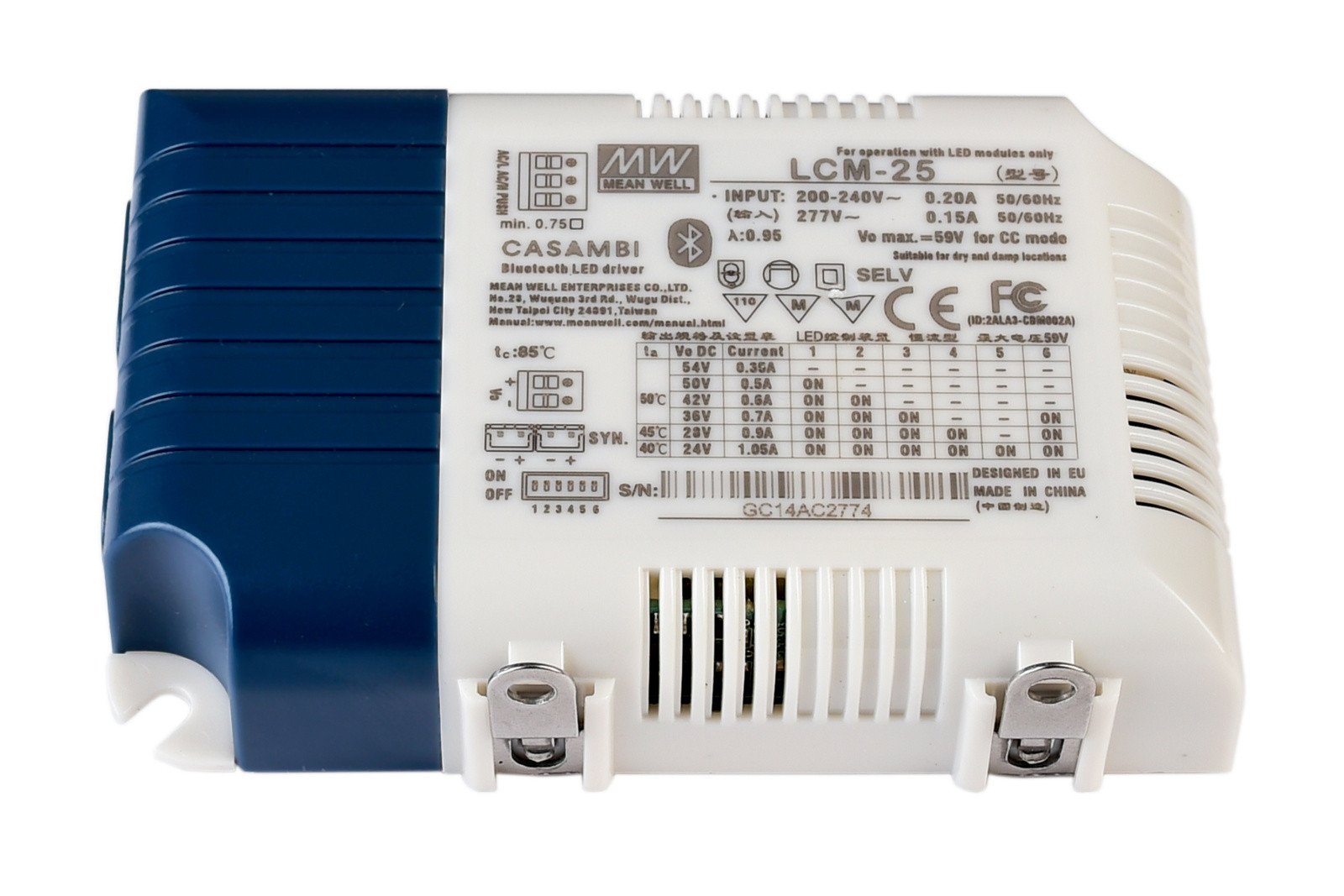

Netzgerät (CC, DC) dimmbar - Multi CC, LCM-25BLE / Casambi + Push
862243
4042943171696
Sale
108,63 EUR
(exkl. MwSt.)
je 1
Funktionen
Verkaufsdaten
| Mindestbestellmenge | 1 |
| Bestellschritt | 1 |
Merkmale
| Rated Input Voltage | 180-277 V/AC |
| Frequency | 50 / 60 Hz |
| Operating Mode | Constant current |
| Output Voltage | 6-54 V/DC |
| Control | Casambi |
| badge_neu_en | false |
| badge_ausgelistet_en | false |
| Product state | SALE |
| Product Type | Power supply unit (CC, DC) dimmable |
| badge_sale_en | true |
| eShop visible | yes |
| Number of Channels | 1 |
| Output Current Selectable in mA | 350 mA |
| Power | 18.0-25.0 W |
| Power min. | 18.0 W |
| Power max. | 25.0 W |
| Dimmable | Yes |

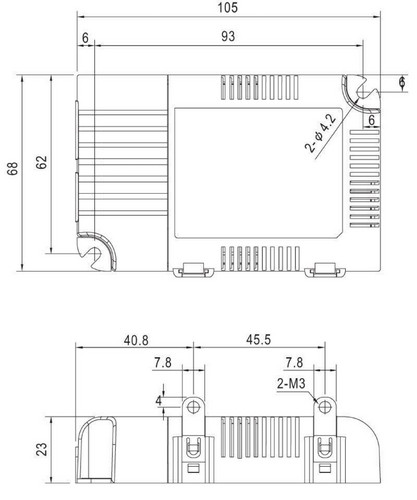

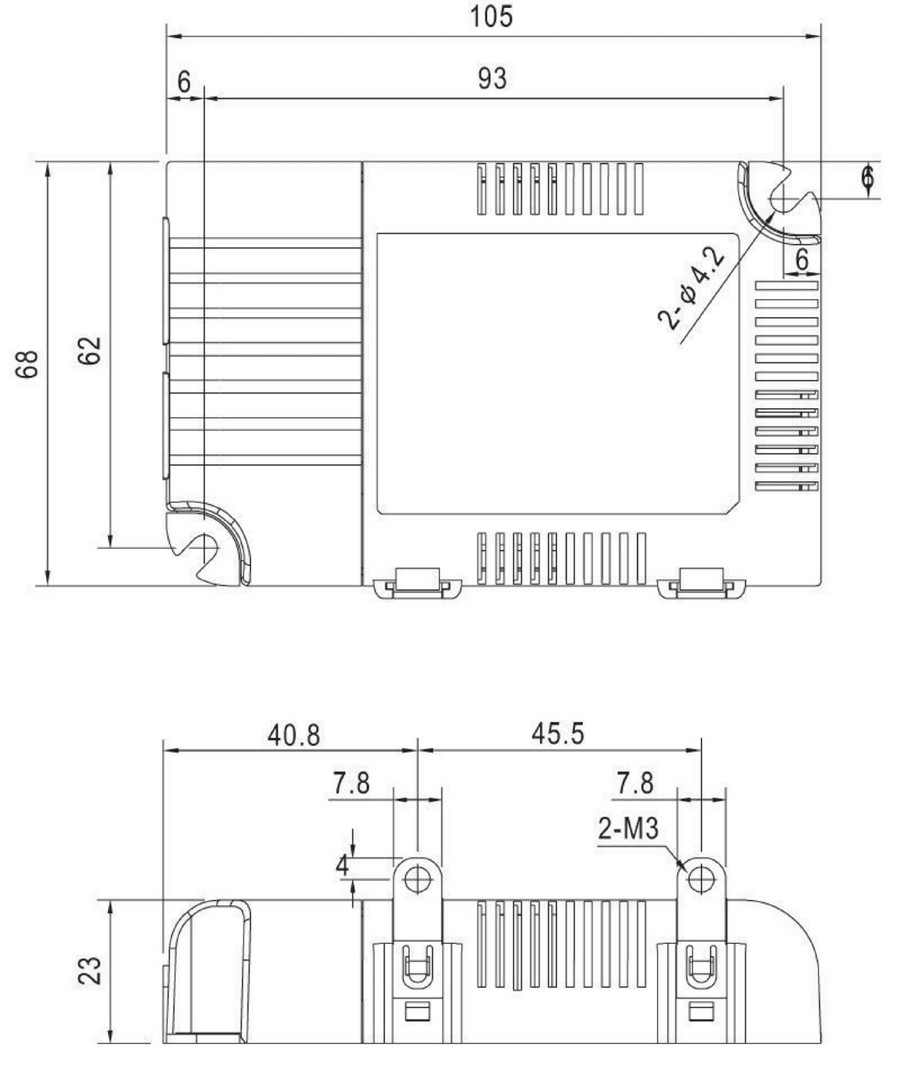

| Length | 105 mm |
| Width | 68 mm |
| Height | 23 mm |
| Protection Class | Protection class II/protective insulation |
| IP Protection Class | IP 20 |
| Housing Material | Plastic |
| Housing Color | White |
| Rated Current in mA | 0.17 mA |
| Inrush Current max. | 20 A / 260 µs |
| Power Factor | 0.94 |
| Max. units per MCB B10 | 16 |
| Max. units per MCB B16 | 26 |
| Max. units per MCB C10 | 27 |
| Max. units per MCB C16 | 44 |
| Connection Type | Clamp |
| Product weight | 160 g |
| Working Temperature | -20 to 85 °C |
| Storage Temperature | -40 to 80 °C |
| Mounting Location | Inside |
| Functions | Short-circuit proof |
