Zu diesem Artikel gibt es einen Nachfolger:

Netzgerät (CC, DC) dimmbar - BASIC, DIM, CC, D105040NTF/40W Artikelnummer: 862209

Rated Input Voltage	220-240 V/AC
Frequency	50 / 60 Hz
Operating Mode	Constant current
Output Voltage	19-38 V/DC
Output Current in mA	1050 mA
Warranty (years)	5
badge_neu_en	false
badge_ausgelistet_en	false
Product state	Stock Item
Product Type	Power supply unit (CC, DC) dimmable
badge_sale_en	false
eShop visible	yes
Number of Channels	1
Power	20.0-40.0 W
Power min.	20.0 W
Power max.	40.0 W
Dimmable	Yes
Control	Trailing-edge dimmer
Length	166 mm
Width	52 mm
Height	25 mm
Protection Class	Protection class II/protective insulation
IP Protection Class	IP 20
Housing Material	Plastic
Housing Color	Black
Inrush Current max.	5 A / 300 µs
Capacitive Load	33.23 nF
Power Factor	0.98
Max. units per MCB B10	35
Max. units per MCB B16	56
Max. units per MCB C10	40
Max. units per MCB C16	64
Connection Type	Clamp
Product weight	182 g
Working Temperature	-20 to 45 °C
Storage Temperature	-20 to 70 °C
Mounting Location	Inside
Functions	Short-circuit proof
Life Time	50000 h

Mindestbestellmenge	1
Bestellschritt	1

Abbildung ähnlich

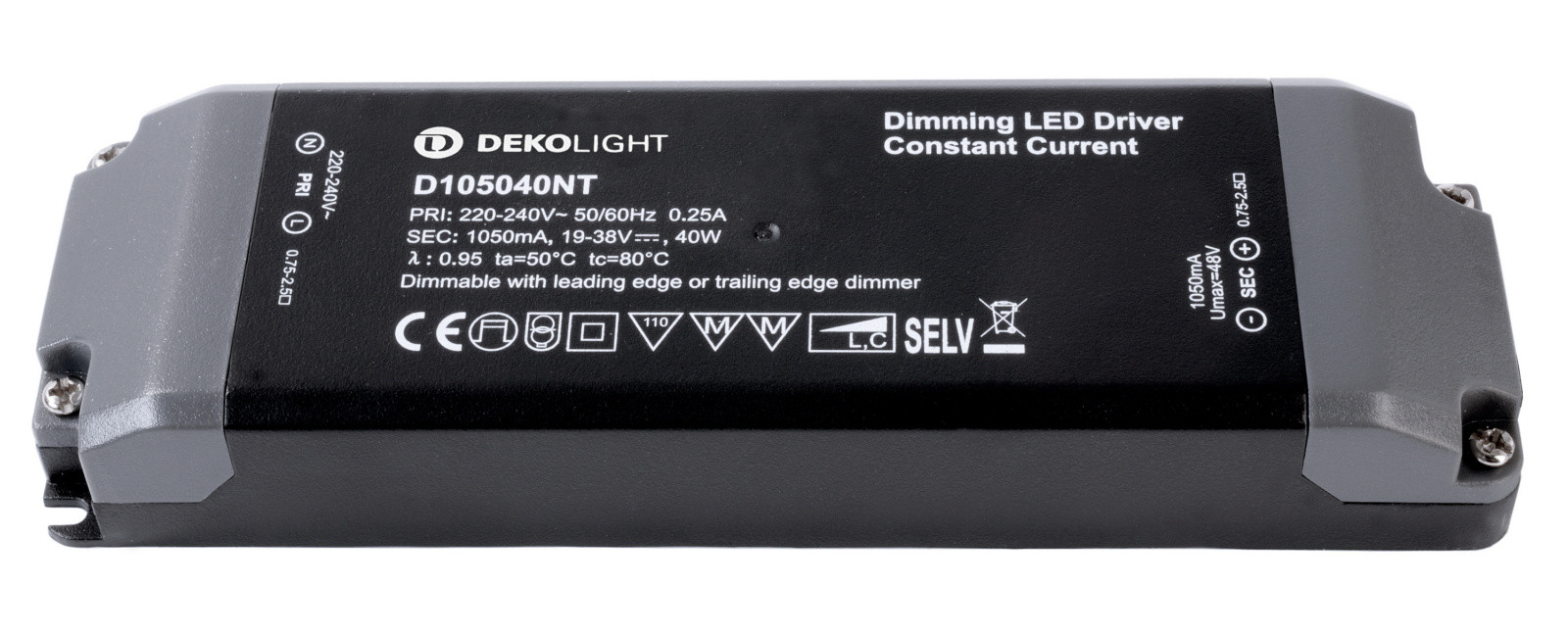

Netzgerät (CC, DC) dimmbar - BASIC, DIM, CC, D105040NT/40W

Artikelnummer: 862022 EAN: 4042943137937

Auslaufartikel

39,95 EUR (exkl. MwSt.)

je 1

Mindestbestellmenge	1
Bestellschritt	1

Rated Input Voltage	220-240 V/AC
Frequency	50 / 60 Hz
Operating Mode	Constant current
Output Voltage	19-38 V/DC
Output Current in mA	1050 mA
badge_neu_en	false
badge_ausgelistet_en	true
Product Type	Power supply unit (CC, DC) dimmable
badge_sale_en	false
eShop visible	yes
Power	20.0-40.0 W
Power min.	20.0 W
Power max.	40.0 W
Dimmable	Yes
Control	Trailing-edge dimmer
Length	166 mm
Width	52 mm
Height	24 mm
Protection Class	Protection class II/protective insulation
IP Protection Class	IP 20
Housing Material	Plastic
Housing Color	Black
Inrush Current max.	5 A / 300 µs
Capacitive Load	34.5 nF
Power Factor	0.95
Max. units per MCB B10	35
Max. units per MCB B16	56
Max. units per MCB C10	74
Max. units per MCB C16	118
Connection Type	Clamp
Product weight	190 g
Working Temperature	-20 to 50 °C
Storage Temperature	-20 to 70 °C
Mounting Location	Inside
Functions	Short-circuit proof
Life Time	30000 h
