Netzgerät (CC, DC) - Multi CC, PRO-UA440-W 3-Phasen Schienensystem 230V

Artikelnummer: 862182 EAN: 4042943162939

29,95 EUR (exkl. MwSt.)

je 1

Mindestbestellmenge	1
Bestellschritt	1

Rated Input Voltage	220-240 V/AC
Frequency	50 / 60 Hz
Operating Mode	Constant current
Output Voltage	27-42 V/DC
Warranty (years)	5
badge_neu_en	false
badge_ausgelistet_en	false
Product state	Stock Item
Product Type	Power supply unit (CC, DC)
badge_sale_en	false
eShop visible	yes
Output Current Selectable in mA	850 mA
Power	22.0-44.0 W
Power min.	22.0 W
Power max.	44.0 W

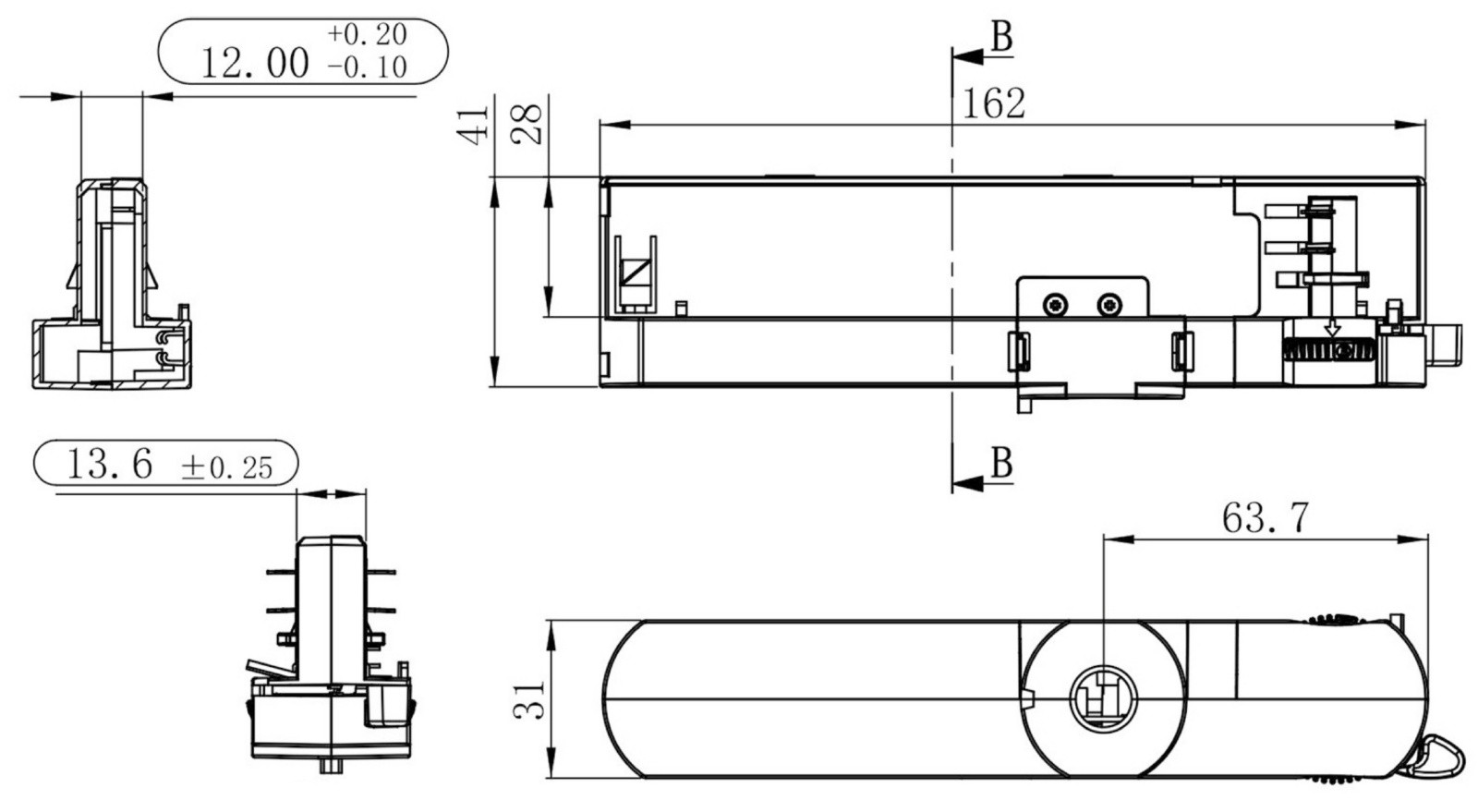

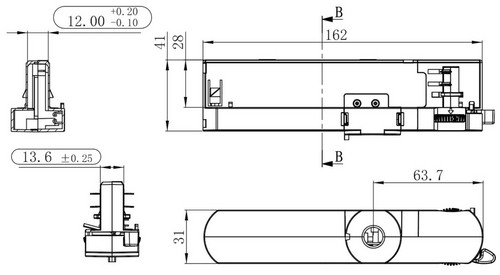

Length	162 mm
Width	31 mm
Height	41 mm
Protection Class	Protection class I/protective grounding
IP Protection Class	IP 20
Housing Material	Plastic
Housing Color, Color System	Pure white RAL 9010
Housing Color	White
Power Factor	0.97
Connection Type	Clamp
Product weight	113 g
Working Temperature	-20 to 35 °C
Storage Temperature	-20 to 75 °C
Mounting Location	Inside
Functions	Short-circuit proof
Scope of Delivery	1x installation material 1x adapter 1x trumpet nipple 1x fla
Life Time	50000 h
