Zu diesem Artikel gibt es einen Vorgänger:

Netzgerät (CC, DC) dimmbar - QUICK, CC, 1500mA, 27-42V, 60W Artikelnummer: 862259

Rated Input Voltage	220-240 V/AC
Frequency	50 / 60 Hz
Operating Mode	Constant current
Output Voltage	27-42 V/DC
Output Current in mA	1500 mA
Warranty (years)	5
badge_neu_en	false
badge_ausgelistet_en	false
Product state	Stock Item
Product Type	Power supply unit (CC, DC) dimmable
badge_sale_en	false
eShop visible	yes
Number of Channels	1
Power	40.5-63.0 W
Power min.	40.5 W
Power max.	63.0 W
Through Wiring possible	Yes
Dimmable	Yes
Control	Trailing-edge dimmer
Length	208 mm
Width	60 mm
Height	32 mm
Protection Class	Protection class II/protective insulation
IP Protection Class	IP 20
Housing Material	Plastic
Housing Color	Black
Inrush Current max.	30 A / 100 µs
Power Factor	0.95
Max. units per MCB B10	23
Max. units per MCB B16	37
Max. units per MCB C10	25
Max. units per MCB C16	41
Connection Type	Clamp
Product weight	770 g
Working Temperature	-20 to 45 °C
Storage Temperature	-20 to 70 °C
Mounting Location	Inside
Functions	Short-circuit proof

Mindestbestellmenge	1
Bestellschritt	1

Zu diesem Artikel gibt es einen Nachfolger:

Rated Input Voltage	220-240 V/AC
Frequency	50 / 60 Hz
Operating Mode	Constant current
Output Voltage	27-42 V/DC
Output Current in mA	1500 mA
Warranty (years)	5
badge_neu_en	false
badge_ausgelistet_en	false
Product state	Stock Item
Product Type	Power supply unit (CC, DC) dimmable
badge_sale_en	false
eShop visible	yes
Number of Channels	1
Power	40.5-63.0 W
Power min.	40.5 W
Power max.	63.0 W
Through Wiring possible	Yes
Dimmable	Yes
Control	Trailing-edge dimmer
Length	208 mm
Width	60 mm
Height	32 mm
Protection Class	Protection class II/protective insulation
IP Protection Class	IP 20
Housing Material	Plastic
Housing Color	Black
Inrush Current max.	30 A / 100 µs
Power Factor	0.95
Max. units per MCB B10	23
Max. units per MCB B16	37
Max. units per MCB C10	25
Max. units per MCB C16	41
Connection Type	Clamp
Product weight	770 g
Working Temperature	-20 to 45 °C
Storage Temperature	-20 to 70 °C
Mounting Location	Inside
Functions	Short-circuit proof

Mindestbestellmenge	1
Bestellschritt	1

Abbildung ähnlich

Netzgerät (CC, DC) - BASIC, CC, V9-45-1500mA/42V

Artikelnummer: 862261 EAN: 4042943174413

Auslaufartikel

15,95 EUR (exkl. MwSt.)

je 1

Mindestbestellmenge	1
Bestellschritt	1

Rated Input Voltage	220-240 V/AC
Frequency	50 / 60 Hz
Operating Mode	Constant current
Output Voltage	30-42 V/DC
Output Current in mA	1500 mA
badge_neu_en	false
badge_ausgelistet_en	true
Product Type	Power supply unit (CC, DC)
badge_sale_en	false
eShop visible	yes
Power	45.0-63.0 W
Power min.	45.0 W
Power max.	63.0 W

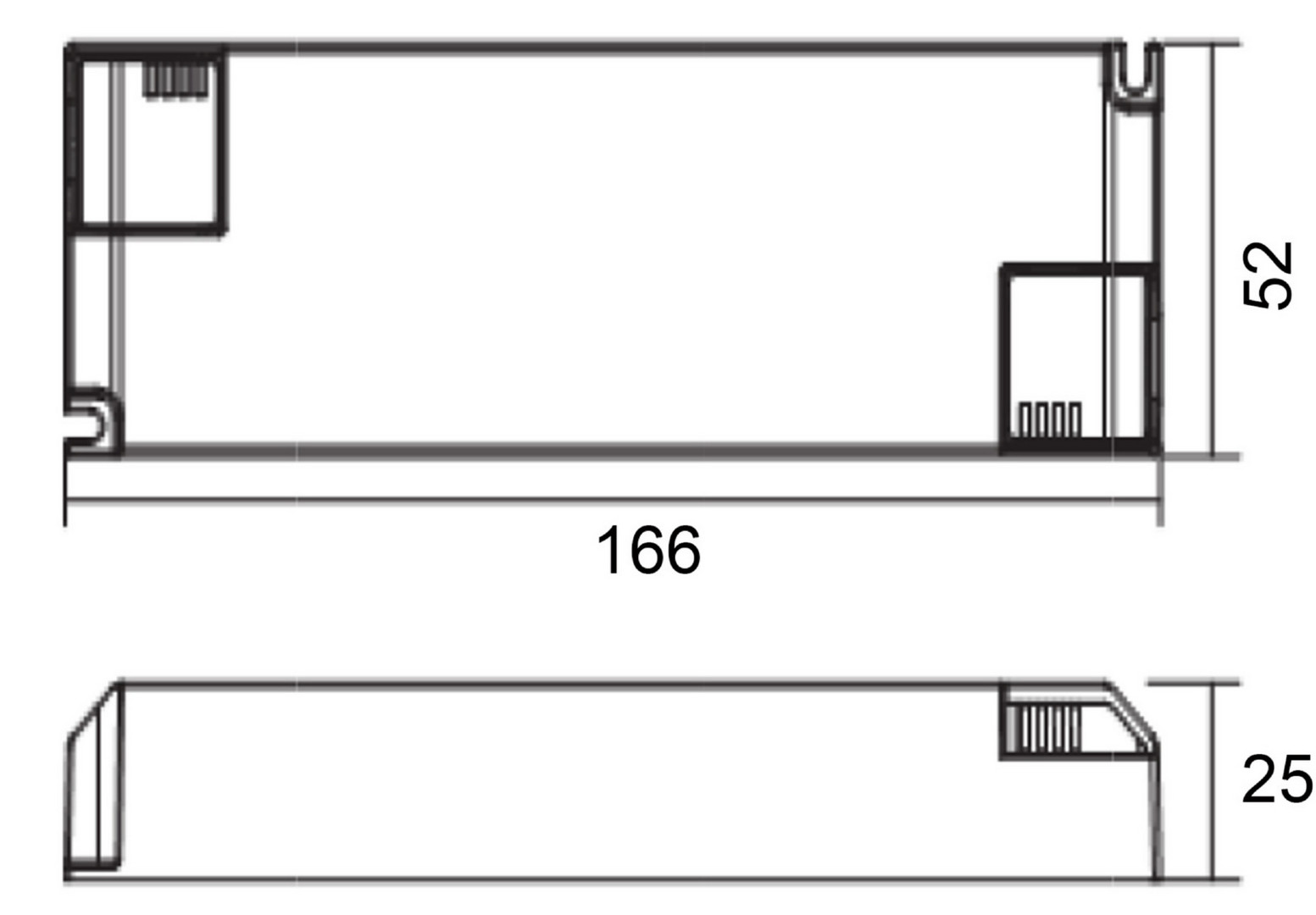

Length	166 mm
Width	52 mm
Height	25 mm
Protection Class	Protection class II/protective insulation
IP Protection Class	IP 20
Housing Material	Plastic
Housing Color	White
Inrush Current max.	30 A / 100 µs
Capacitive Load	366.2 nF
Max. units per MCB B10	4
Max. units per MCB B16	7
Max. units per MCB C10	8
Max. units per MCB C16	14
Connection Type	Clamp
Product weight	228 g
Working Temperature	-20 to 45 °C
Storage Temperature	-20 to 70 °C
Mounting Location	Inside
Functions	Short-circuit proof
