Housing Material	Aluminium
Housing Color	Chrome
Lightcolor	Warm white (WW)
Color Temperature	2700 K
CRI (Ra)	80
Rated Luminous Flux	750 lm
Warranty (years)	5
Rated Angle of Reflection	36 Degree
badge_neu_en	false
badge_ausgelistet_en	false
Product state	Stock Item

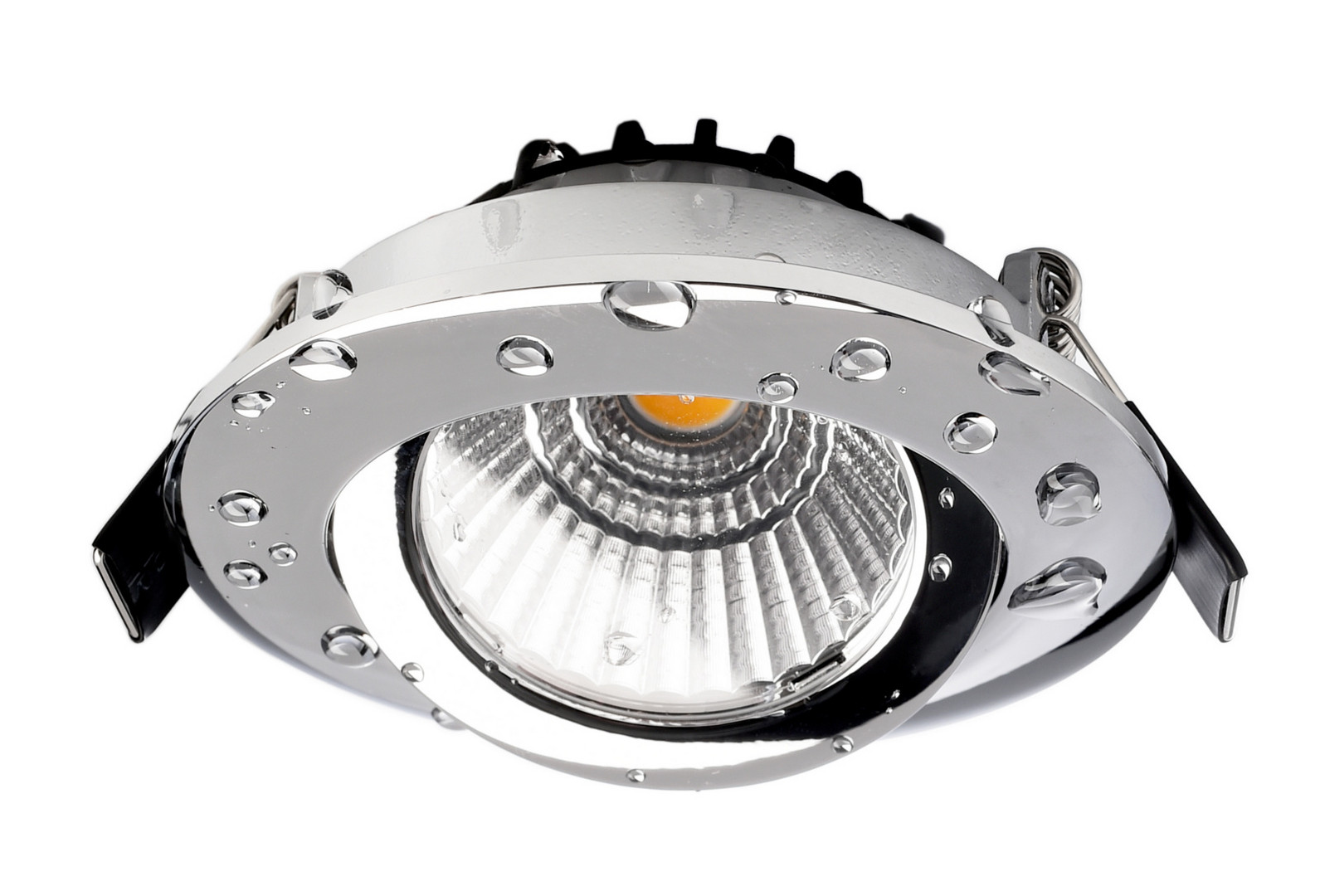

Product Type	Recessed Spotlight
badge_sale_en	false
eShop visible	yes
Dimmable	Yes
Control	Leading-edge dimmer
Motion Detector	No
Height	44 mm
Diameter	82 mm
Cut Out Diameter	68 mm
Installation Depth	41 mm
Required Installation Depth	27 mm
Mounting Surface Thickness	9-13 mm
Rated Input Voltage	220-240 V/AC
Frequency	50 / 60 Hz
Rated Input	8.0 W
Protection Class	Protection class II/protective insulation
IP Protection Class	IP 20
Light Source	LED
Luminous Efficiency	88.2 lm/W

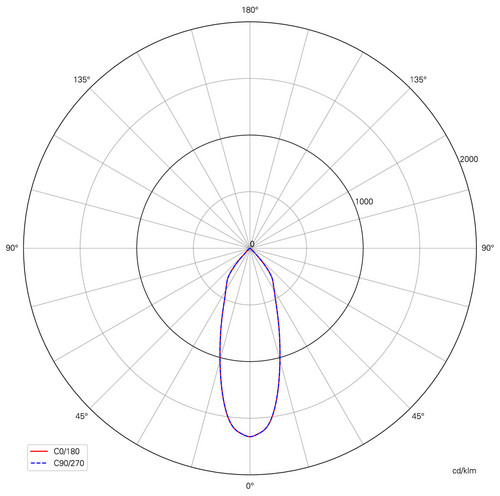

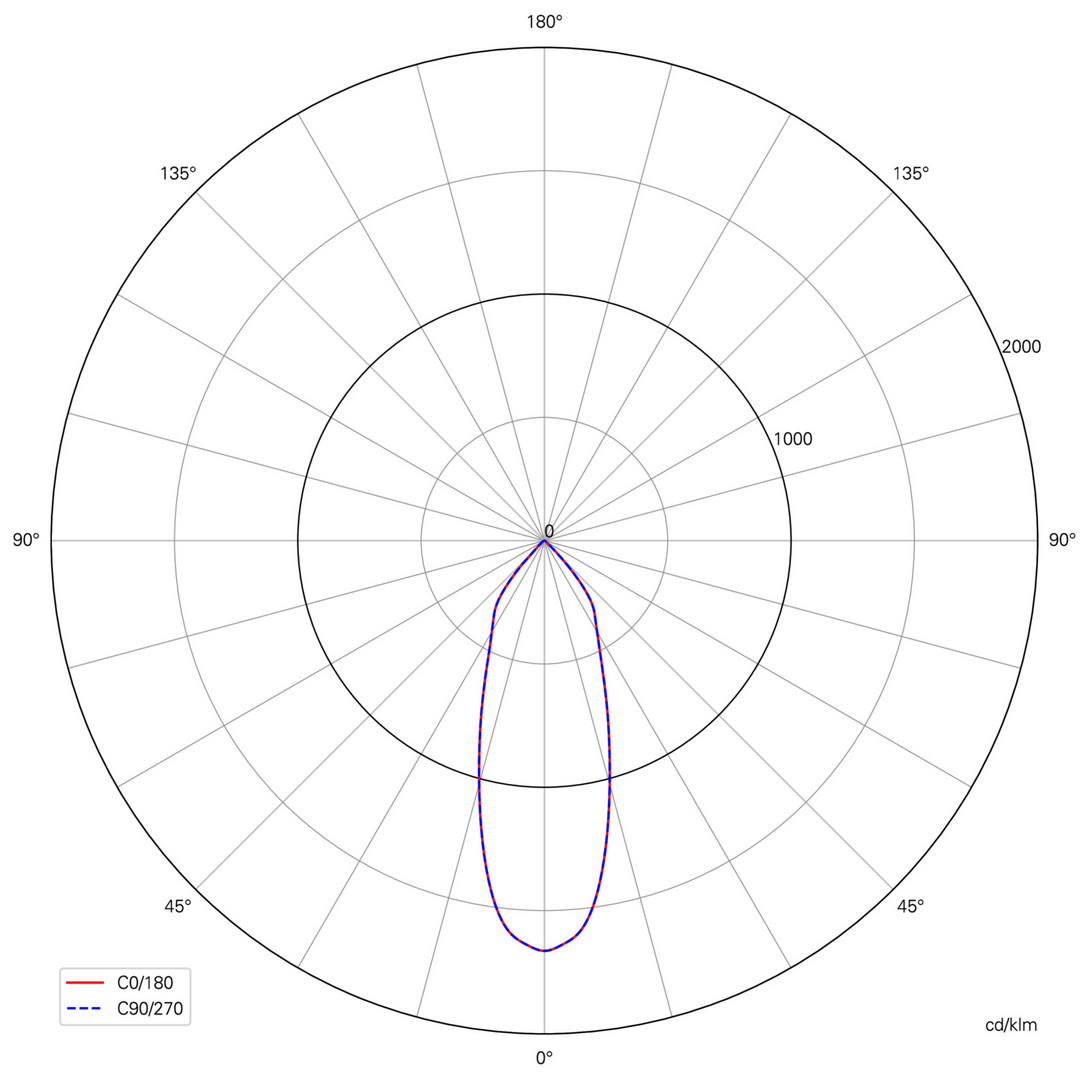

Light Distribution	Symmetric
Light direction	Below
Colour Consistency	5 SDCM
Life Time L70 / B50	50000 h
Switching Cycles	25000
Swivel Angle	30 Degree
Turning and Swiveling Range	Swiveling
Toolless Assembly	Yes
Product weight	163 g
Connection Type	Clamp
Primary Connection	Connection box IP20
Through Wiring possible	Yes

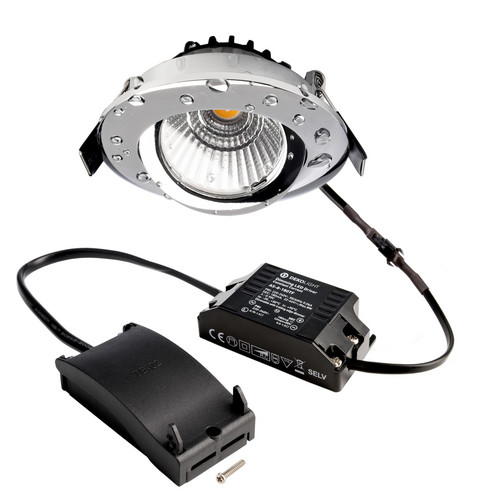

Power Supply Unit incl.	Yes
Power Supply Unit Changeable	Yes by technician
Power Consumption	9 kWh/1000h
Inrush Current max.	5 A / 100 µs
Power Factor	0.90
Max. units per MCB B10	90
Max. units per MCB B16	145
Max. units per MCB C10	100
Max. units per MCB C16	160
Working Temperature	-20 to 40 °C
Storage Temperature	-20 to 40 °C
Mounting Type	Installation mounting
Mounting Location	Inside
Mounting Area	Ceiling installation
Energieeffizenzklasse	E

Mindestbestellmenge	1
Bestellschritt	1
