Housing Material	Aluminium
Housing Color, Color System	Traffic white RAL 9016
Housing Color	White
Lightcolor	Neutral white
Color Temperature	4000 K
CRI (Ra)	90
Rated Luminous Flux	5200 lm
Warranty (years)	5
Inrush Current max.	7 A / 40 µs

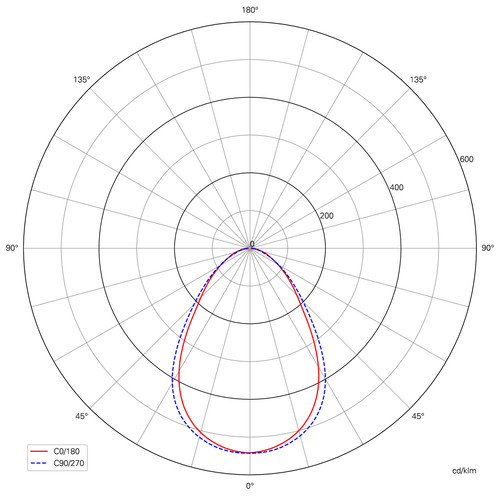

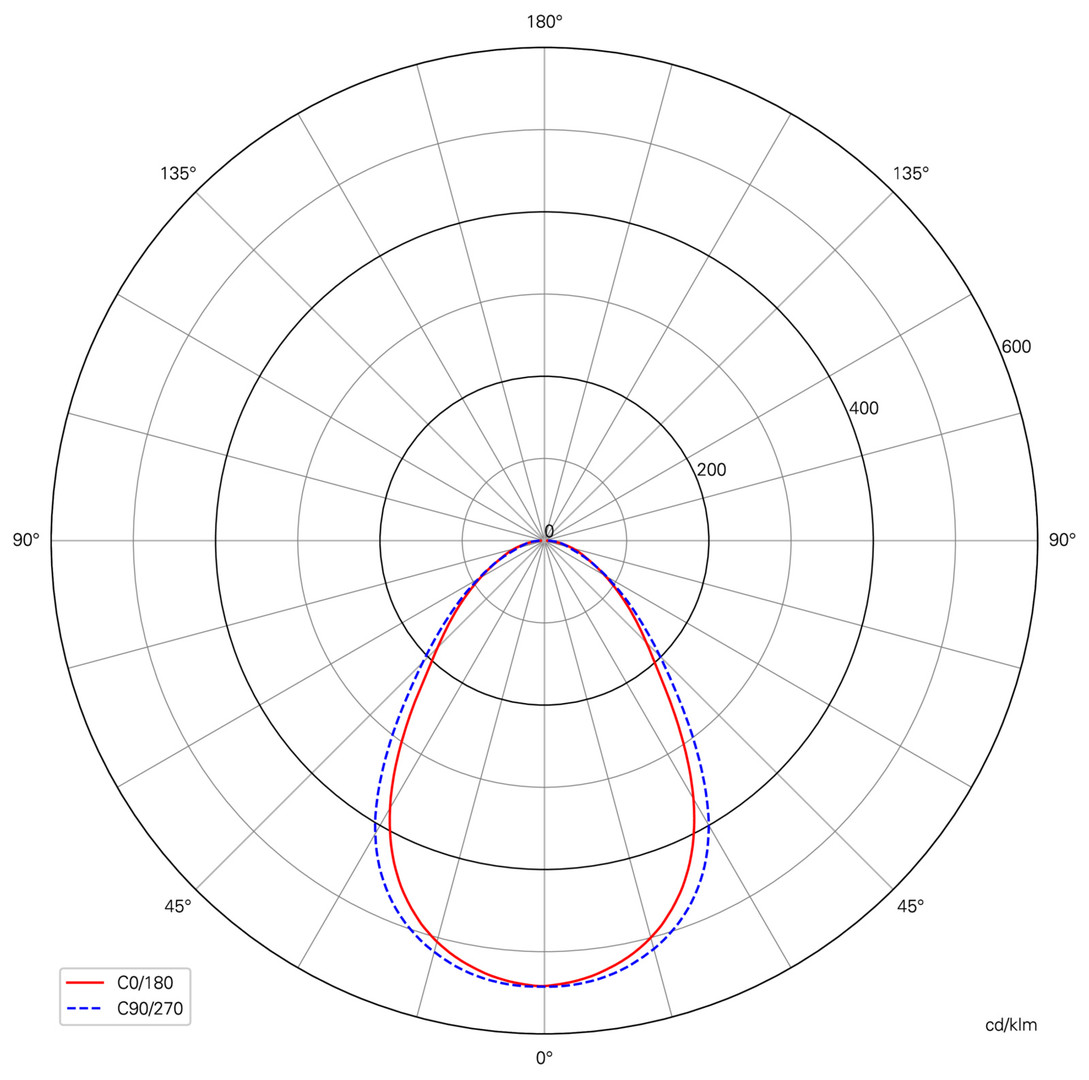

Rated Angle of Reflection	90 Degree
badge_neu_en	false
badge_ausgelistet_en	false
Product state	Stock Item
Product Type	Surface-mounted ceiling light
badge_sale_en	false
eShop visible	yes
Dimmable	Yes
Control	DALI 2.0 / DT6
Height	100 mm
Diameter	600 mm
Rated Input Voltage	198-264 V/AC
Frequency	50 / 60 Hz
Rated Input	37.0 W
Voltage range DC	176-276 V/DC
Protection Class	Protection class I/protective grounding
IP Protection Class	IP 40
IK Protection Class	IK05
Light Source	LED
Luminous Efficiency	141 lm/W
Light direction	Below
Colour Consistency	2 SDCM
Life Time L70 / B50	180000 h
Life Time L80 / B10	120000 h
Life Time L80 / B50	130000 h
Life Time L90 / B10	50000 h
Life Time L90 / B20	60000 h
Switching Cycles	100000 PCS
Product weight	5000 g
Through Wiring possible	Yes
Power Supply Unit Changeable	Yes by technician
Power Consumption	37 kWh/1000h
Max. units per MCB B10	29 PCS
Max. units per MCB B16	46 PCS
Max. units per MCB C10	29 PCS
Max. units per MCB C16	46 PCS
Working Temperature	-20 to 50 °C
Surface Temperature max.	80 °C
Storage Temperature	-40 to 80 °C
Mounting Type	Top mounting
Mounting Location	Inside
Mounting Area	Ceiling installation
UGR	19

Mindestbestellmenge	1
Bestellschritt	1

Deckenaufbauleuchte - Lautaro 600/100 Prisma, 37 W, DALI, 4000 K, Weiß
