Housing Material	Aluminium
Housing Color, Color System	Deep black RAL 9005
Housing Color	Black
Lightcolor	Neutral white
Color Temperature	4000 K
CRI (Ra)	90
Rated Luminous Flux	10000 lm
Warranty (years)	5
Inrush Current max.	37.2 A / 295 µs
Rated Angle of Reflection	90 Degree
badge_neu_en	false
badge_ausgelistet_en	false
Product state	Stock Item
Product Type	Surface-mounted ceiling light
badge_sale_en	false
eShop visible	yes
Dimmable	Yes
Control	DALI 2.0 / DT6
Height	100 mm
Diameter	1200 mm
Rated Input Voltage	198-264 V/AC
Frequency	50 / 60 Hz
Rated Input	72.0 W
Voltage range DC	176-276 V/DC
Protection Class	Protection class I/protective grounding
IP Protection Class	IP 40
IK Protection Class	IK05
Light Source	LED
Luminous Efficiency	139 lm/W
Light direction	Below
Colour Consistency	2 SDCM
Life Time L70 / B50	180000 h
Life Time L80 / B10	120000 h
Life Time L80 / B50	130000 h
Life Time L90 / B10	50000 h
Life Time L90 / B20	60000 h
Switching Cycles	100000 PCS
Product weight	10500 g
Through Wiring possible	Yes
Power Supply Unit Changeable	Yes by technician
Power Consumption	72 kWh/1000h
Max. units per MCB B10	5 PCS
Max. units per MCB B16	9 PCS
Max. units per MCB C10	9 PCS
Max. units per MCB C16	15 PCS
Working Temperature	-20 to 50 °C
Surface Temperature max.	80 °C
Storage Temperature	-40 to 80 °C
Mounting Type	Top mounting
Mounting Location	Inside
Mounting Area	Ceiling installation
UGR	19

Mindestbestellmenge	1
Bestellschritt	1

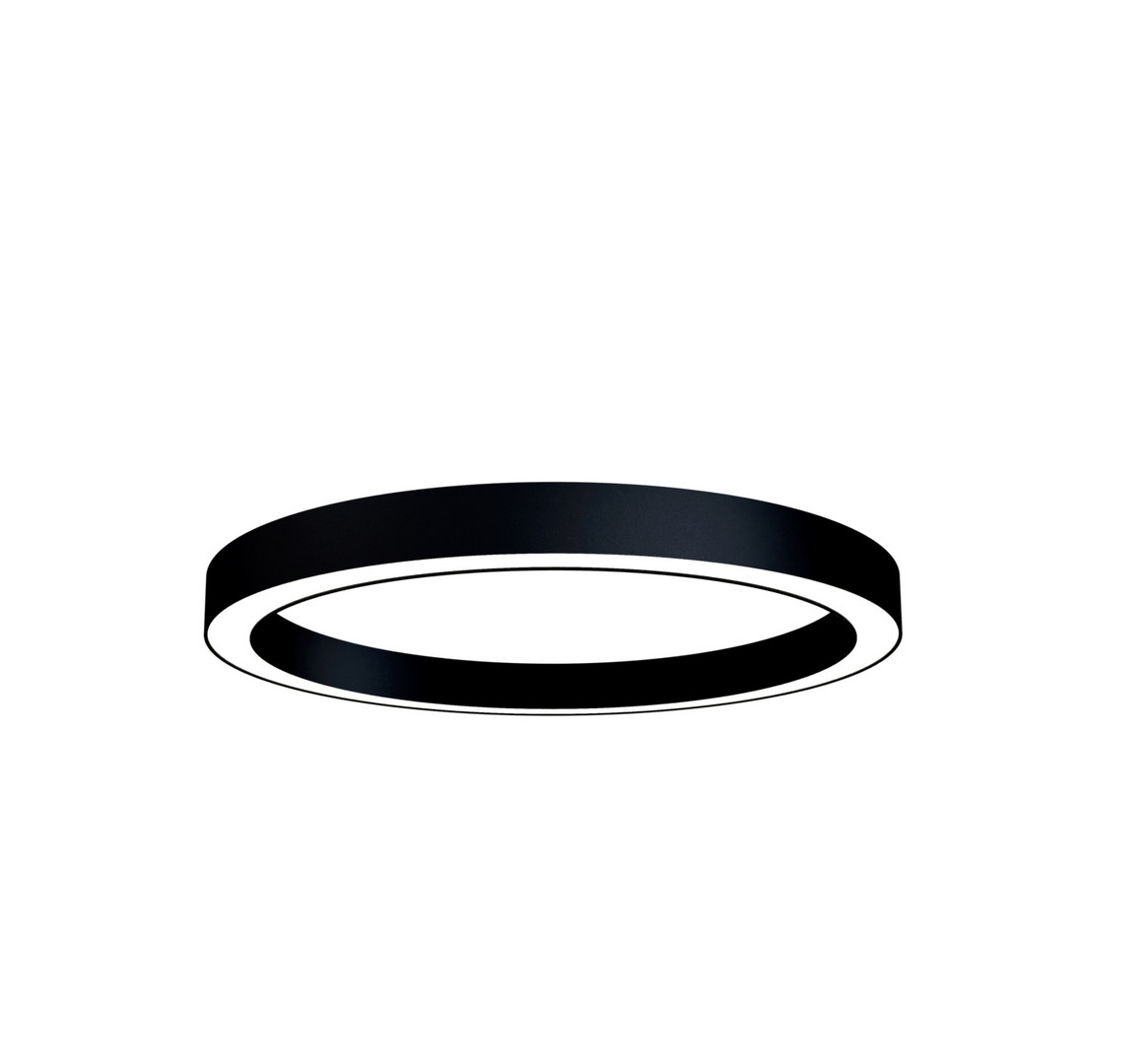

Deckenaufbauleuchte - Lautaro 1200/100 Prisma, 72 W, DALI, 4000 K, Schwarz
