Housing Material	Stainless steel
Housing Color	Silver
Lightcolor	RGB
Rated Luminous Flux	650 lm
Warranty (years)	5
Rated Angle of Reflection	50 Degree
Rated Angle of Reflection 2	35 Degree
badge_neu_en	false
badge_ausgelistet_en	false
Product state	Stock Item

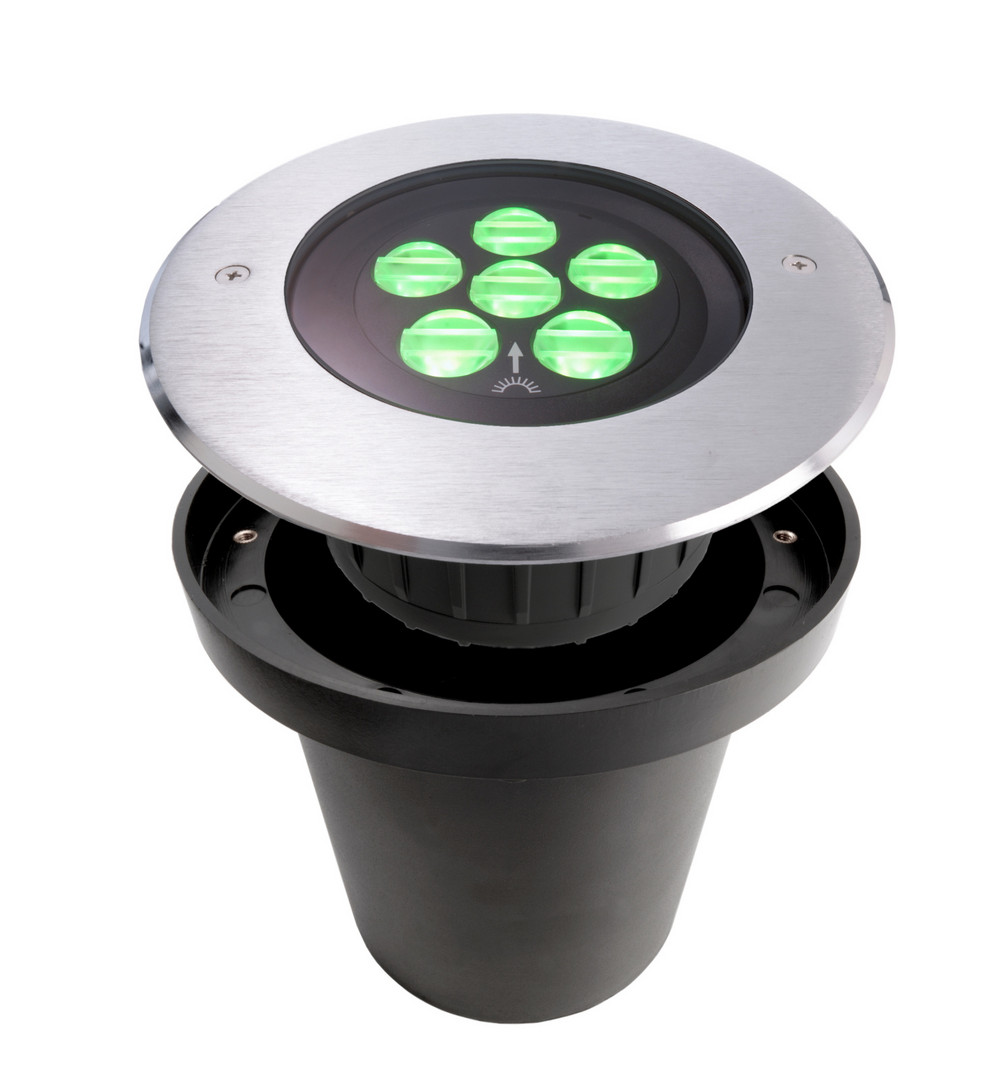

Product Type	Recessed floor light
badge_sale_en	false
eShop visible	yes
Number of Channels	3
UV resistance	Yes
Dimmable	Yes
Control	Dimmable via optional controller
Motion Detector	No

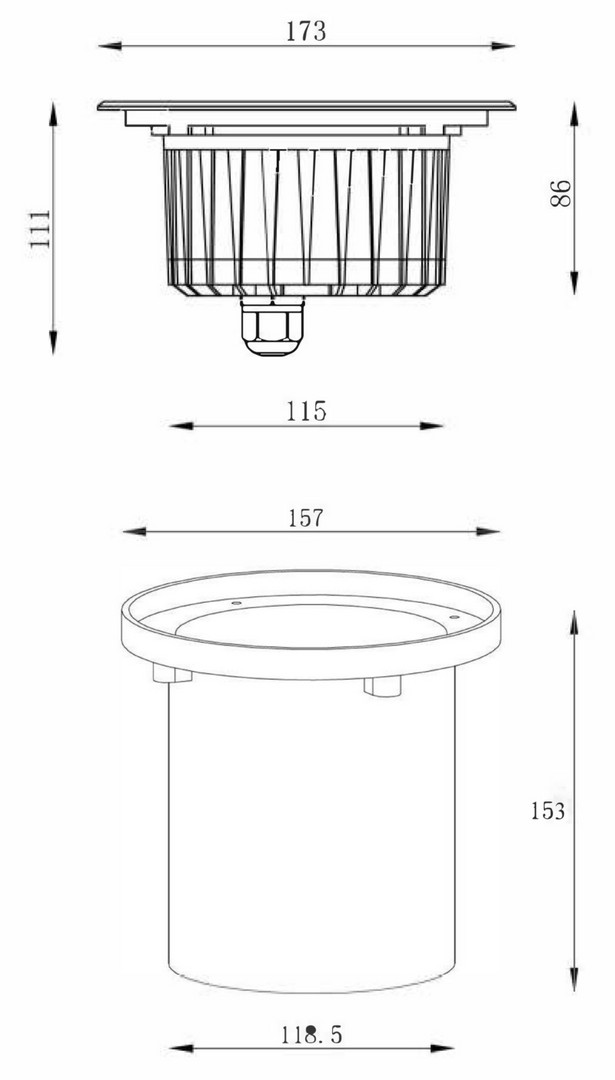

Height	111 mm
Diameter	173 mm
Cut Out Diameter	157 mm
Installation Depth	153 mm
Rated Input Voltage	24 V/DC
Rated Input	16.9 W
Primary Connection	WEIPU plug 4-pole
Primary Cable Length	0.5 m
Protection Class	Protection class III/safety extra-low voltage
IP Protection Class	IP 67
IK Protection Class	IK07
Load Force max.	20 kN
Light Source	LED
Luminous Efficiency	38.0 lm/W

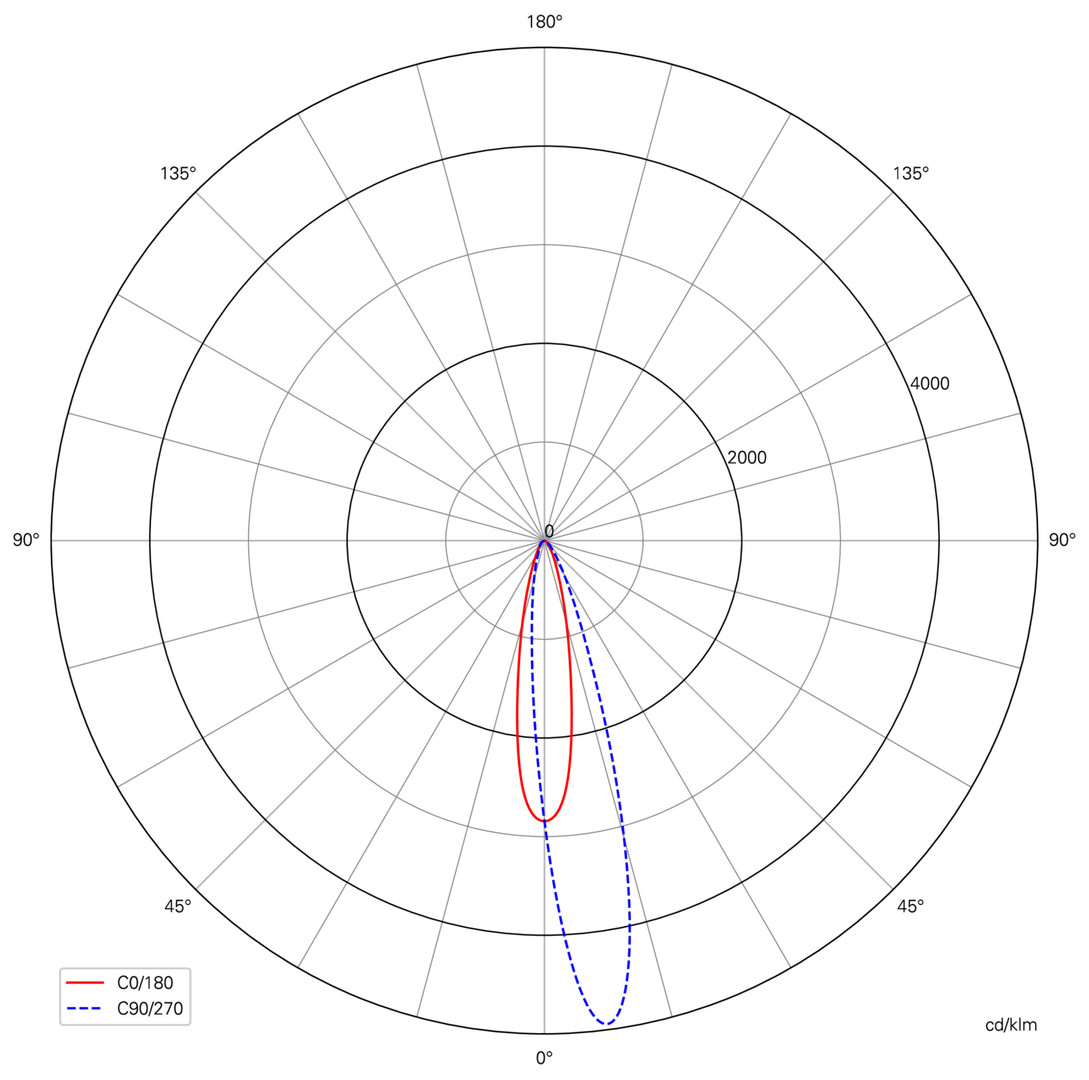

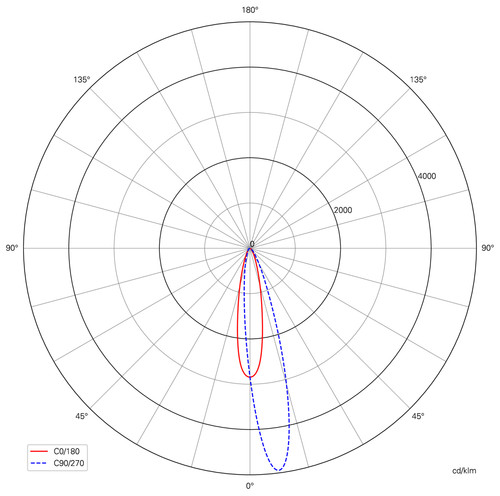

Light Distribution	Asymetric
Light direction	Top
Colour Consistency	6 SDCM
Life Time L70 / B50	25000 h
Switching Cycles	15000
Product weight	1750 g
Power Supply Unit incl.	No
Operating Mode	Constant voltage
Power Consumption	17 kWh/1000h
Working Temperature	-20 to 40 °C
Storage Temperature	-10 to 60 °C
Mounting Type	Installation mounting
Mounting Location	Outside
Mounting Area	Bottom panel mounting
Functions	Driveable - 20 kN
Scope of Delivery	1x recessed housing

Mindestbestellmenge	1
Bestellschritt	1

Bodeneinbauleuchte - Canum Asymmetrisch, 17 W, RGB, Silber
