Housing Material	Aluminium
Housing Color, Color System	Window grey RAL 7040
Housing Color	Light grey
Lightcolor	Neutral white
Color Temperature	4000 K
CRI (Ra)	80
Rated Luminous Flux	3050 lm
Warranty (years)	5
Inrush Current max.	20 A / 200 µs

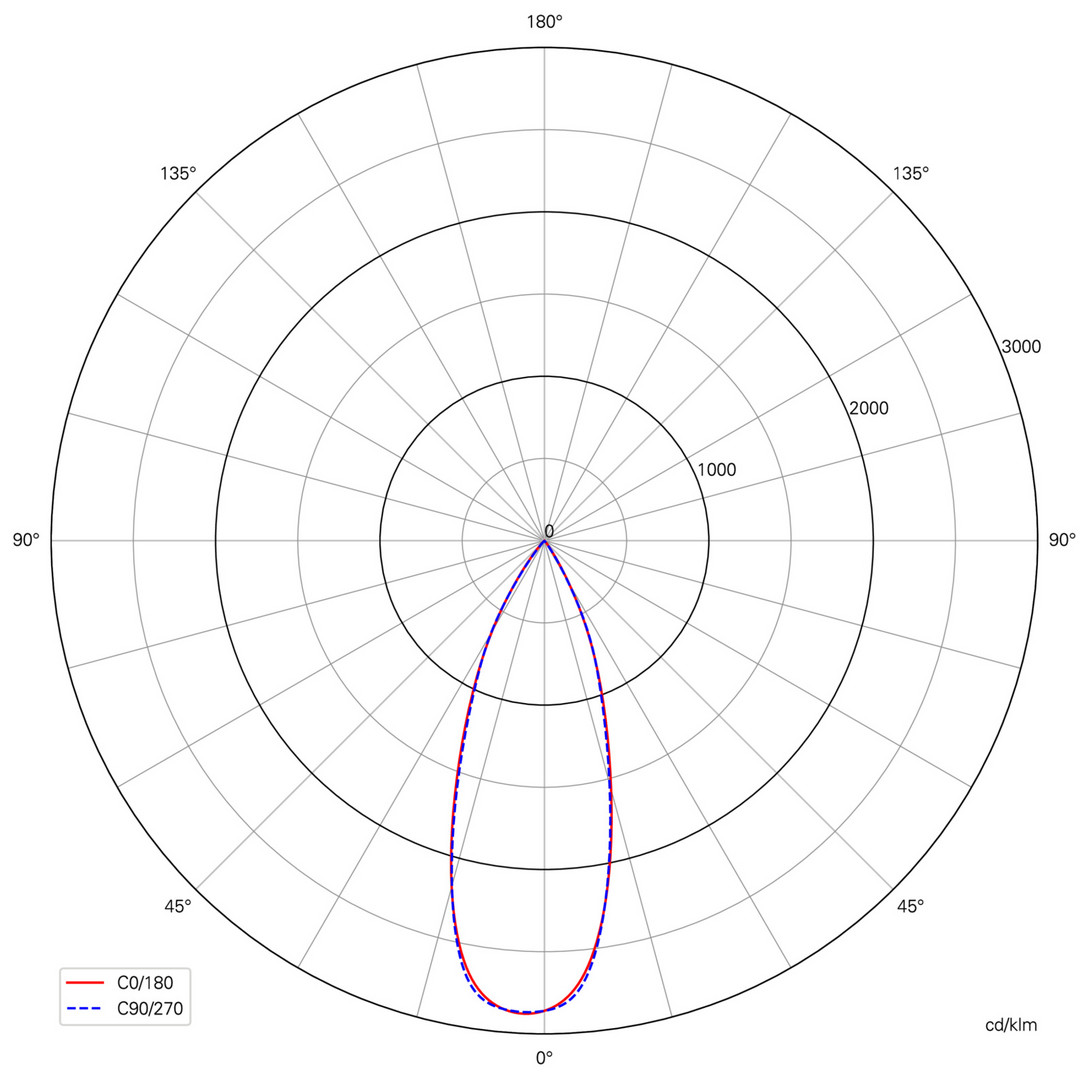

Rated Angle of Reflection	36 Degree
badge_neu_en	false
badge_ausgelistet_en	false
Product state	SALE
Product Type	Three-phase spotlight
badge_sale_en	true
eShop visible	yes
Dimmable	No
Motion Detector	No

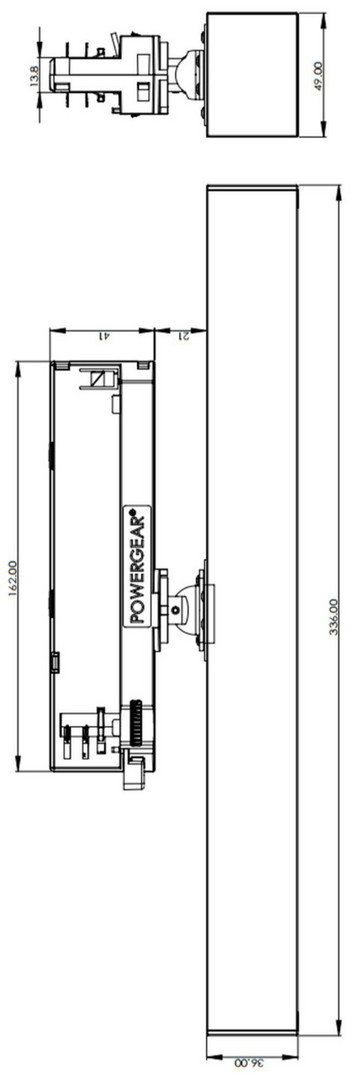

Length	336 mm
Width	49 mm
Height	98 mm
Rated Input Voltage	220-240 V/AC
Frequency	50 / 60 Hz
Power Selectable	23.0 W
Protection Class	Protection class II/protective insulation
IP Protection Class	IP 20
Light Source	LED
Number of Light Sources	1
Luminous Efficiency	90.2 lm/W

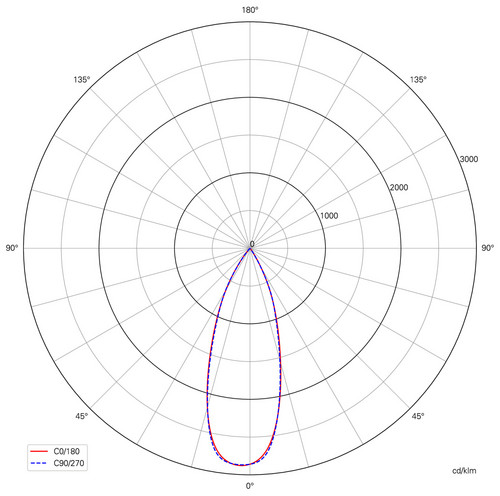

Light Distribution	Symmetric
Light direction	Below
Colour Consistency	6 SDCM
Life Time L70 / B50	30000 h
Life Time L80 / B10	50000 h
Switching Cycles	15000
Swivel Angle	25 Degree
Turning and Swiveling Range	Rotatable
Product weight	582 g

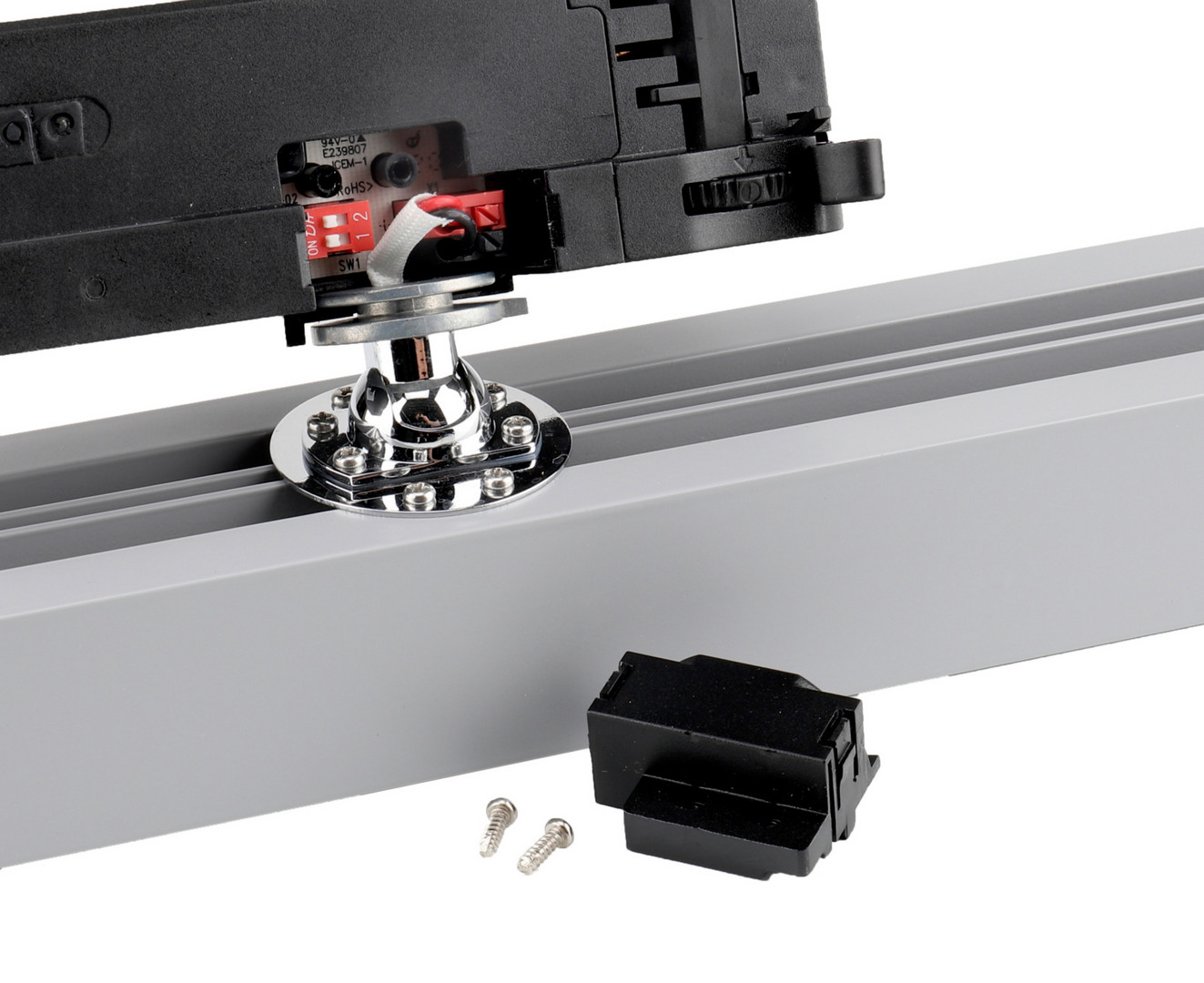

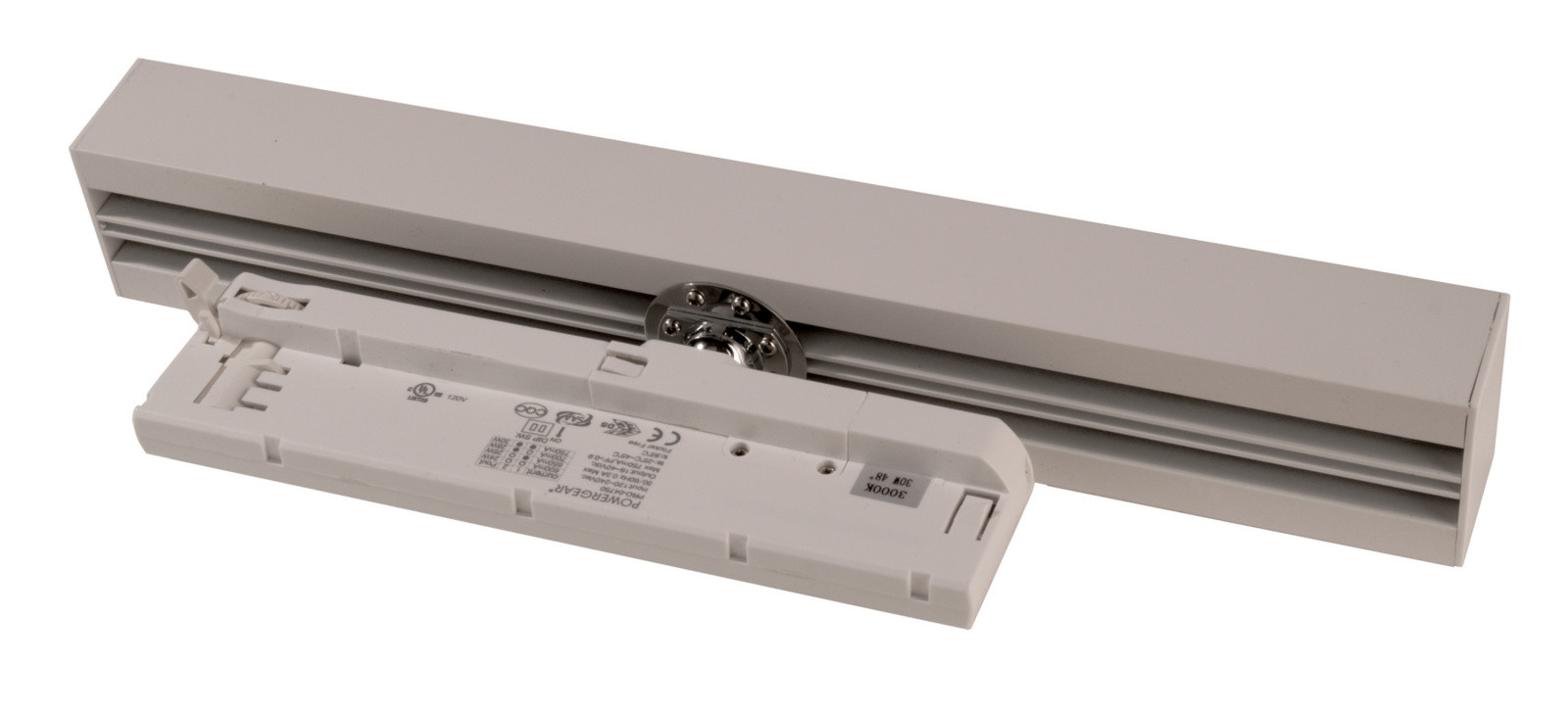

Connection Type	Adapter
Power Supply Unit incl.	Yes
Power Supply Unit Changeable	Yes by technician
Power Consumption	32 kWh/1000h
Rated Current Selectable in mA	800 mA
Power Factor	0.9
Max. units per MCB B10	15
Max. units per MCB B16	25
Max. units per MCB C10	19
Max. units per MCB C16	30
Working Temperature	-25 to 45 °C
Surface Temperature max.	45 °C
Storage Temperature	-25 to 50 °C
Mounting Type	Top mounting
Mounting Location	Inside
Mounting Area	Ceiling installation
Functions	Phase switch
UGR	16

Mindestbestellmenge	1
Bestellschritt	1

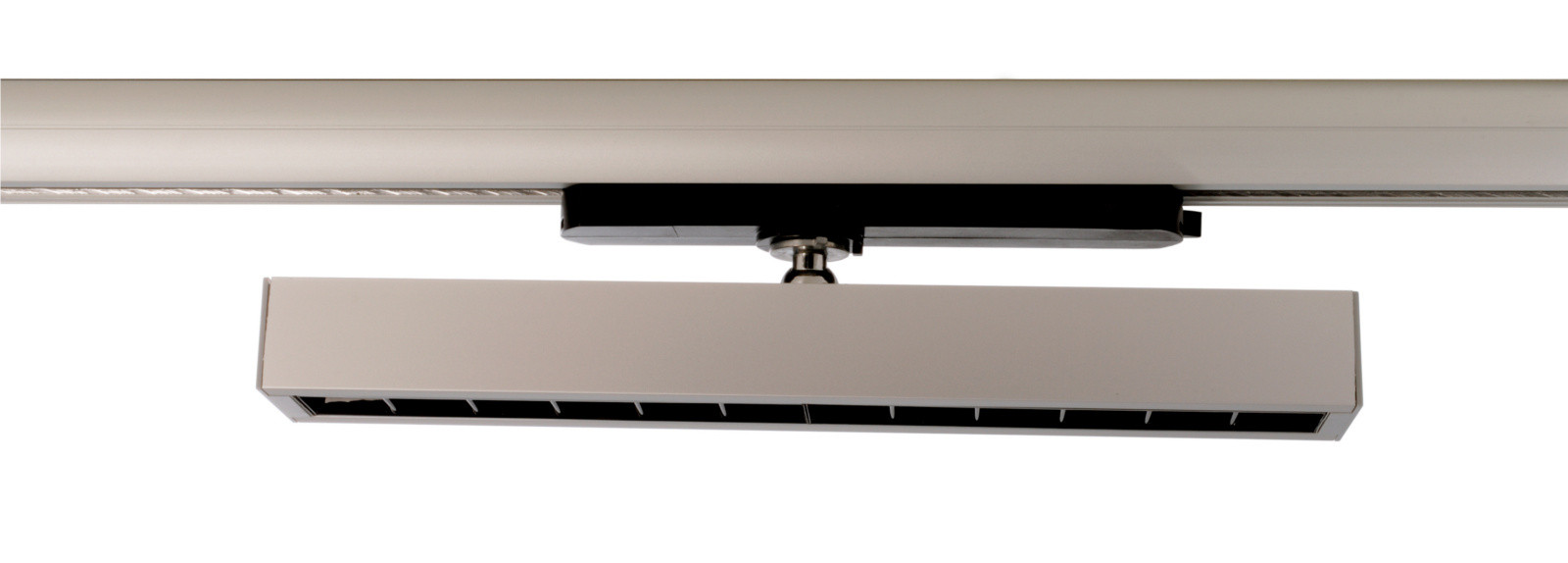

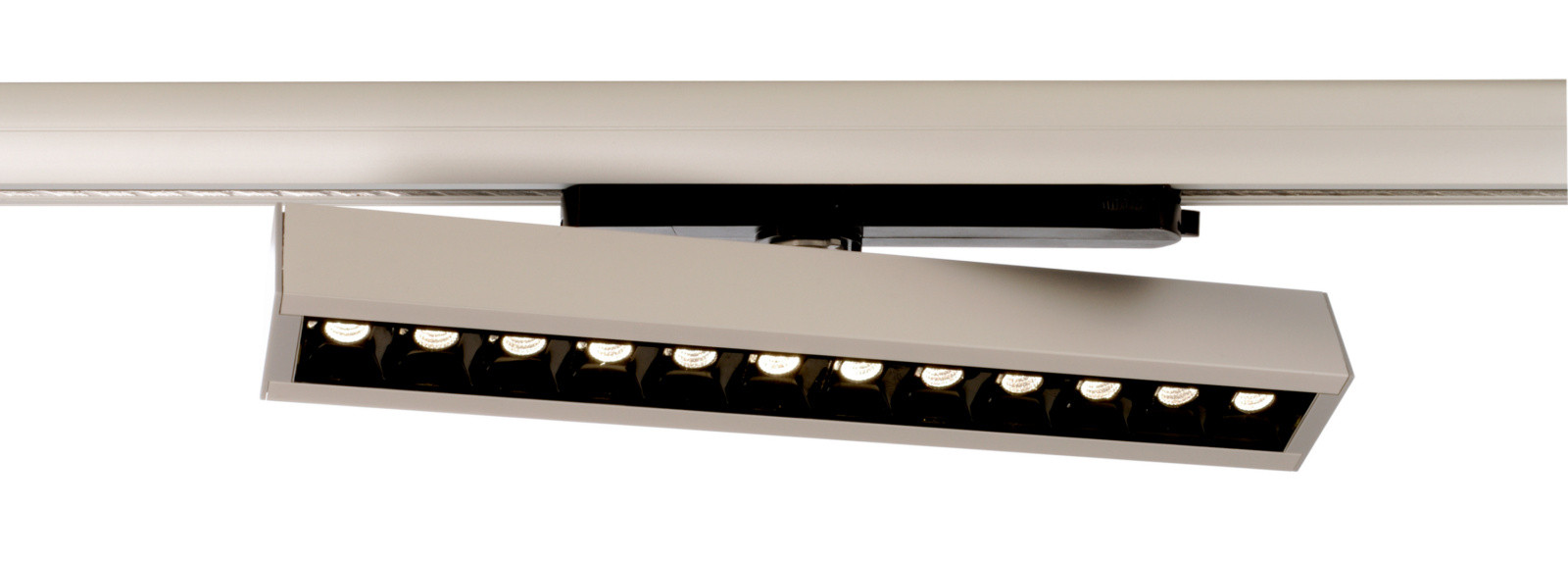

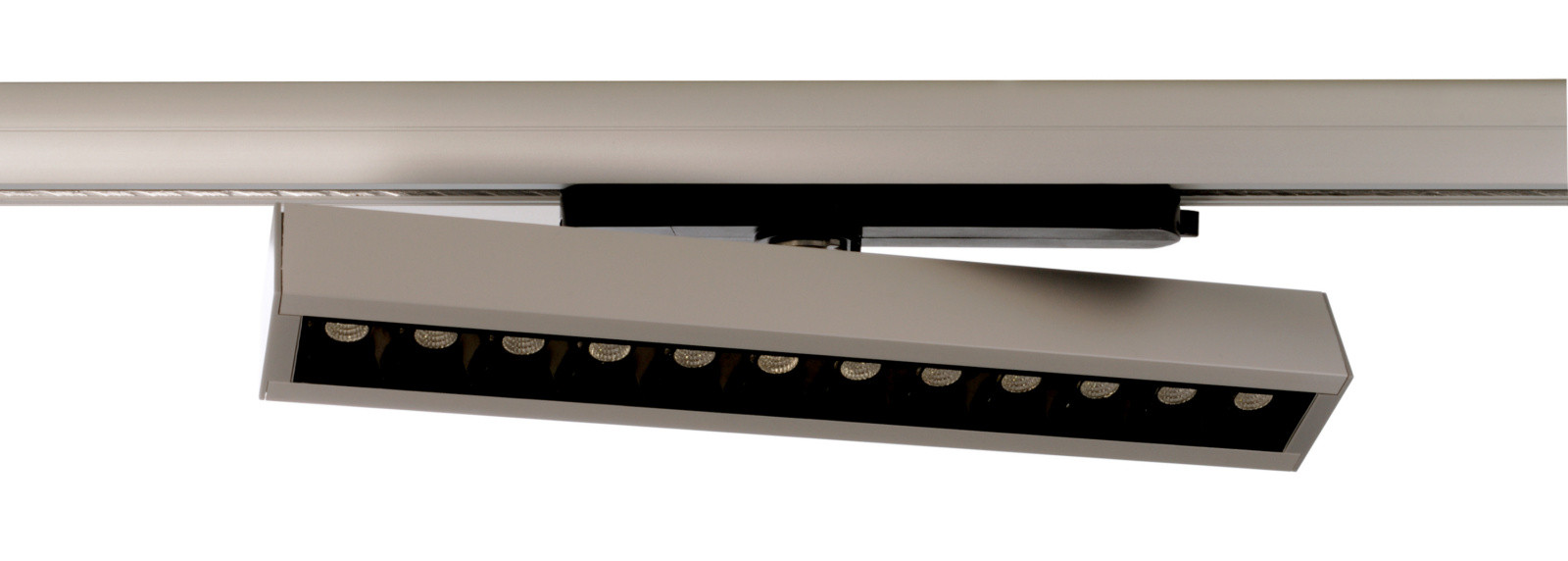

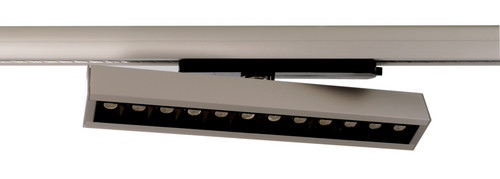

3-Phasen-Spot - Alnitak 25, 32 W, 4000 K, Hellgrau
