Housing Material	Aluminium
Housing Color, Color System	Traffic black RAL 9017
Housing Color	Black
Lightcolor	Warm white (WW)
Color Temperature	3000 K
CRI (Ra)	90
Rated Luminous Flux	2800 lm
Warranty (years)	5
Inrush Current max.	21 A / 120 µs
Rated Angle of Reflection	120 Degree
badge_neu_en	false
badge_ausgelistet_en	false
Product state	Stock Item
Product Type	Three-phase light
badge_sale_en	false
eShop visible	yes
Dimmable	Yes
Control	DALI 2.0 / DT6
Motion Detector	No
Length	602 mm
Width	61.1 mm
Height	58 mm
Rated Input Voltage	198-264 V/AC
Frequency	50 / 60 Hz
Voltage range DC	198-264 V/DC
Voltage range emergency lighting	198-264 V/DC
EOFI	15 %
Power Selectable	14.0 W
Protection Class	Protection class I/protective grounding
IP Protection Class	IP 20
IK Protection Class	IK03
Light Source	LED
Number of Light Sources	1
Luminous Efficiency	140 lm/W

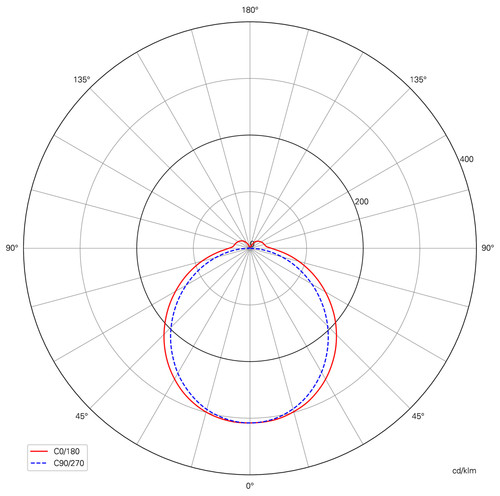

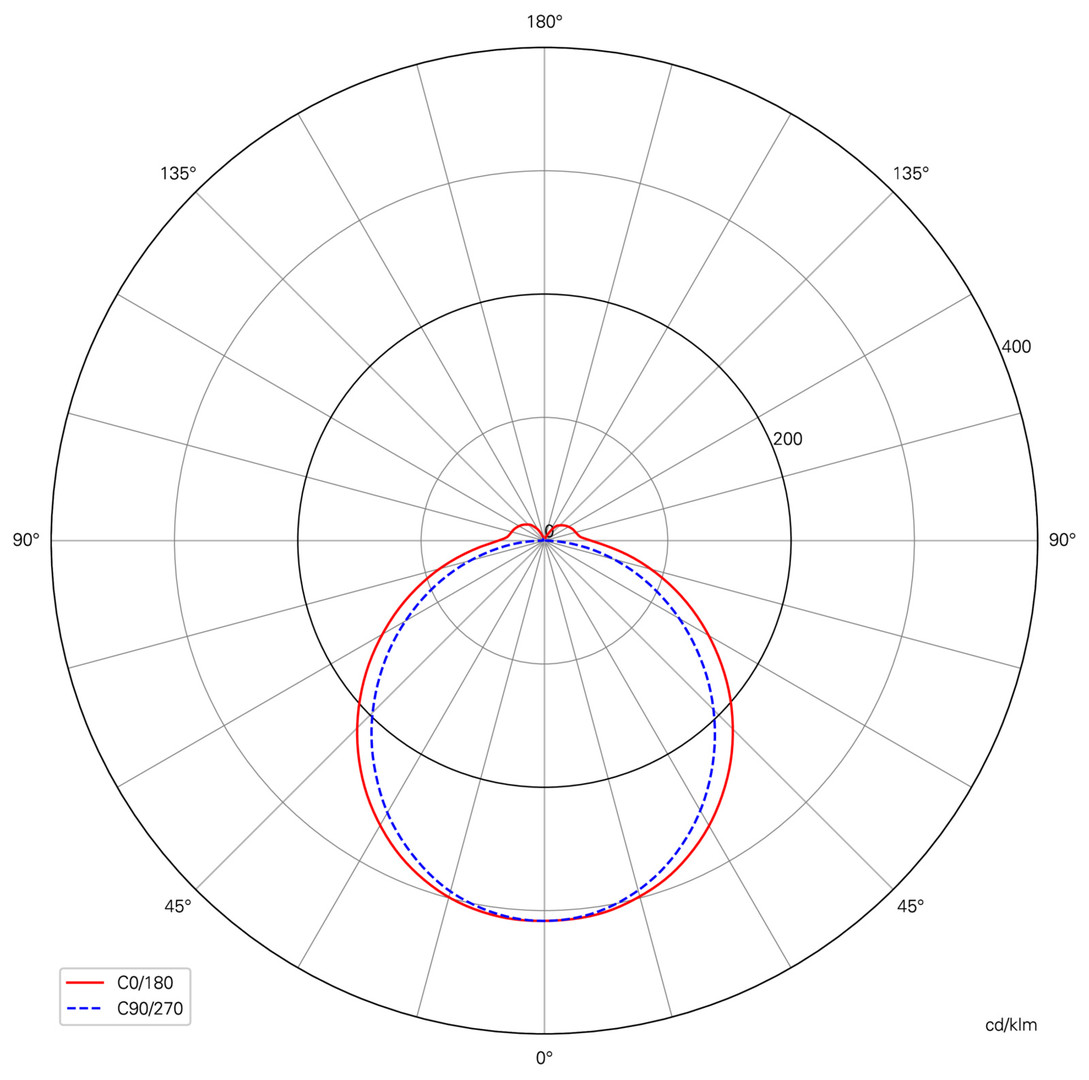

Light Distribution	Symmetric
Light direction	Below
Colour Consistency	5 SDCM
Life Time L70 / B50	60000 h
Life Time L80 / B50	60000 h
Switching Cycles	100000
Product weight	644 g
Connection Type	Adapter
Power Supply Unit incl.	Yes
Power Supply Unit Changeable	Yes by technician
Power Consumption	20 kWh/1000h
Power Factor	0.9
Max. units per MCB B10	30
Max. units per MCB B16	48
Max. units per MCB C10	50
Max. units per MCB C16	80
Working Temperature	-25 to 40 °C
Surface Temperature max.	46 °C
Storage Temperature	-40 to 85 °C
Mounting Type	Installation mounting
Mounting Location	Inside
Mounting Area	Ceiling installation
Functions	Emergency power capable
UGR	30

Mindestbestellmenge	1
Bestellschritt	1

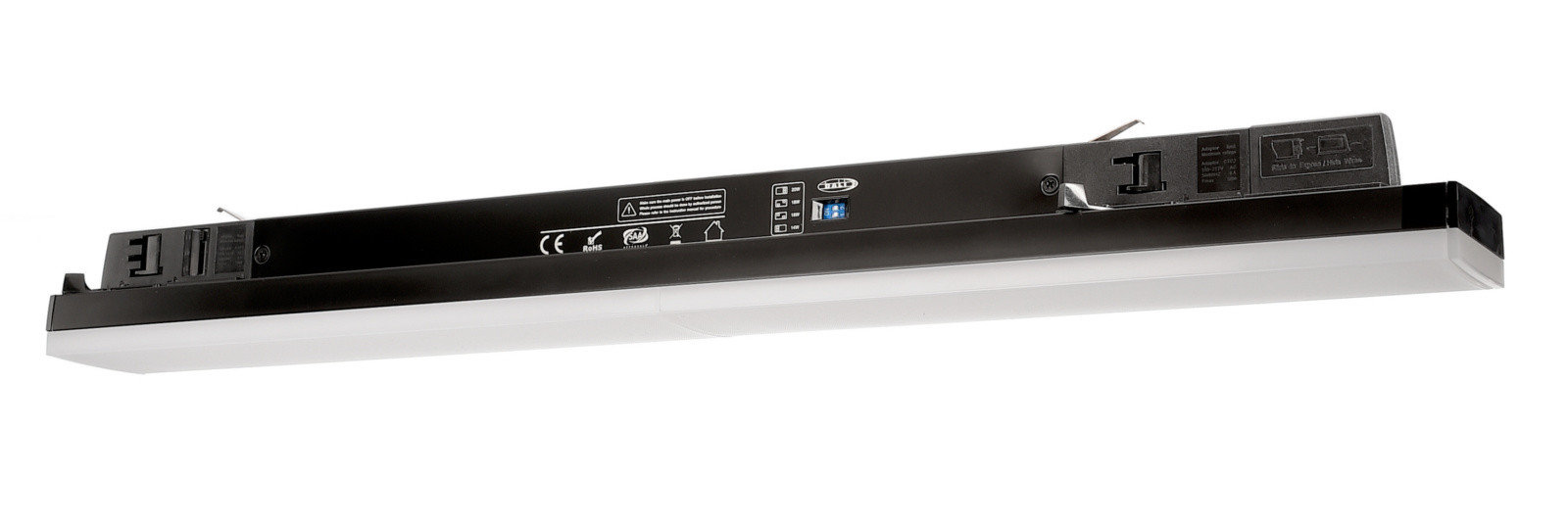

3-Phasenleuchte - Linear Pro Soft 600, 14/16/18/20W, DALI, 3000K, Schwarz
