Housing Material	Steel
Housing Color, Color System	Traffic white RAL 9016
Housing Color	White
Lightcolor	Neutral white
Color Temperature	4000 K
CRI (Ra)	90
Rated Luminous Flux	3200 lm
Warranty (years)	5
Rated Angle of Reflection	60 Degree
badge_neu_en	false
badge_ausgelistet_en	false
Product state	Stock Item
Product Type	Three-phase light
badge_sale_en	false
eShop visible	yes
Dimmable	No
Motion Detector	No
Length	600 mm
Width	60 mm
Height	54 mm
Rated Input Voltage	198-264 V/AC
Frequency	50 / 60 Hz
Voltage range DC	198-264 V/DC
Voltage range emergency lighting	198-264 V/DC
EOFI	100 %
Power Selectable	14.0 W
Protection Class	Protection class I/protective grounding
IP Protection Class	IP 20
IK Protection Class	IK03
Light Source	LED
Number of Light Sources	1
Luminous Efficiency	160.0 lm/W

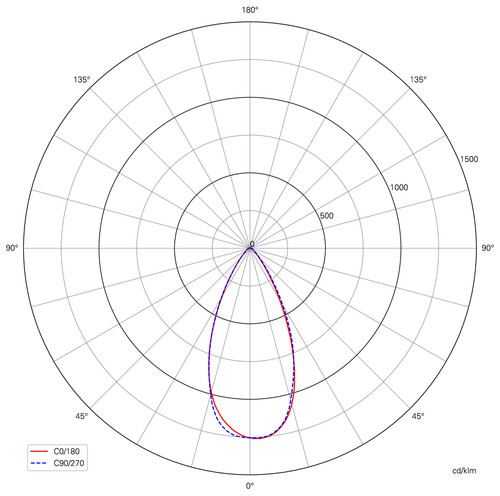

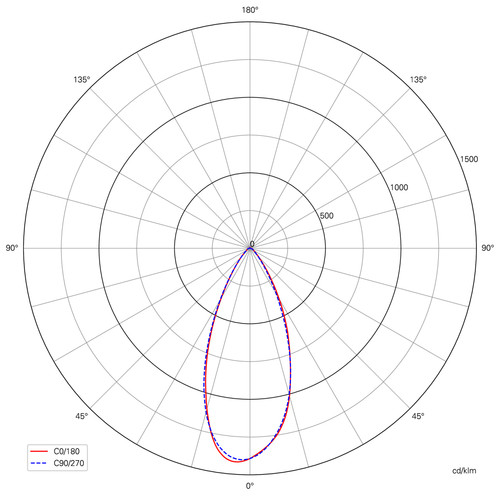

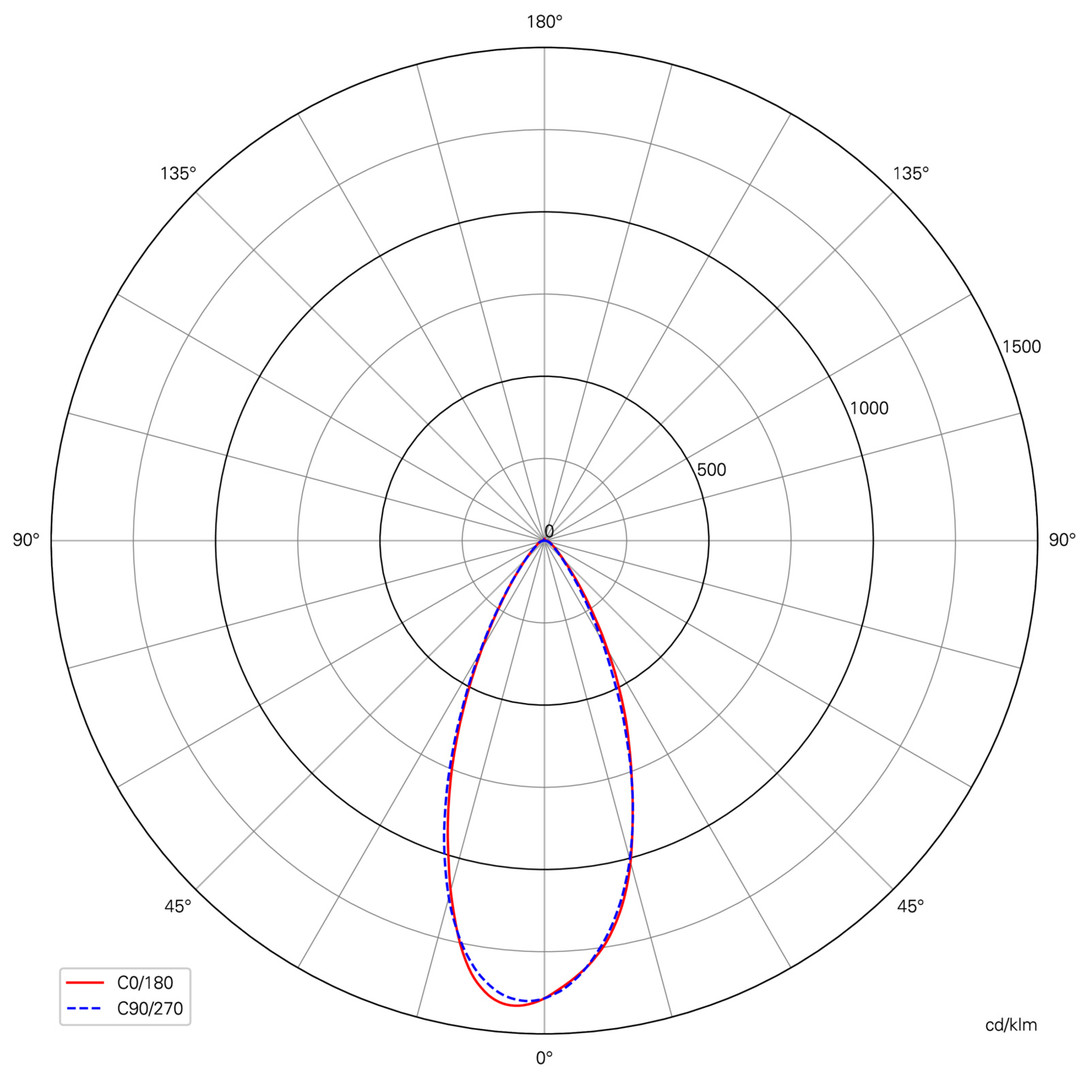

Light Distribution	Symmetric
Light direction	Below
Colour Consistency	3 SDCM
Life Time L70 / B50	60000 h
Life Time L80 / B50	60000 h
Switching Cycles	100000
Swivel Angle	60 Degree
Turning and Swiveling Range	Swiveling
Product weight	700 g
Connection Type	Adapter
Power Supply Unit incl.	Yes
Power Supply Unit Changeable	Yes by technician
Power Consumption	20 kWh/1000h
Power Factor	0.9
Max. units per MCB B10	30 PCS
Max. units per MCB B16	38 PCS
Max. units per MCB C10	30 PCS
Max. units per MCB C16	48 PCS
Working Temperature	-25 to 40 °C
Surface Temperature max.	46 °C
Storage Temperature	-40 to 85 °C
Mounting Type	Installation mounting
Mounting Location	Inside
Mounting Area	Ceiling installation
Functions	Emergency power capable
UGR	19

Mindestbestellmenge	1
Bestellschritt	1

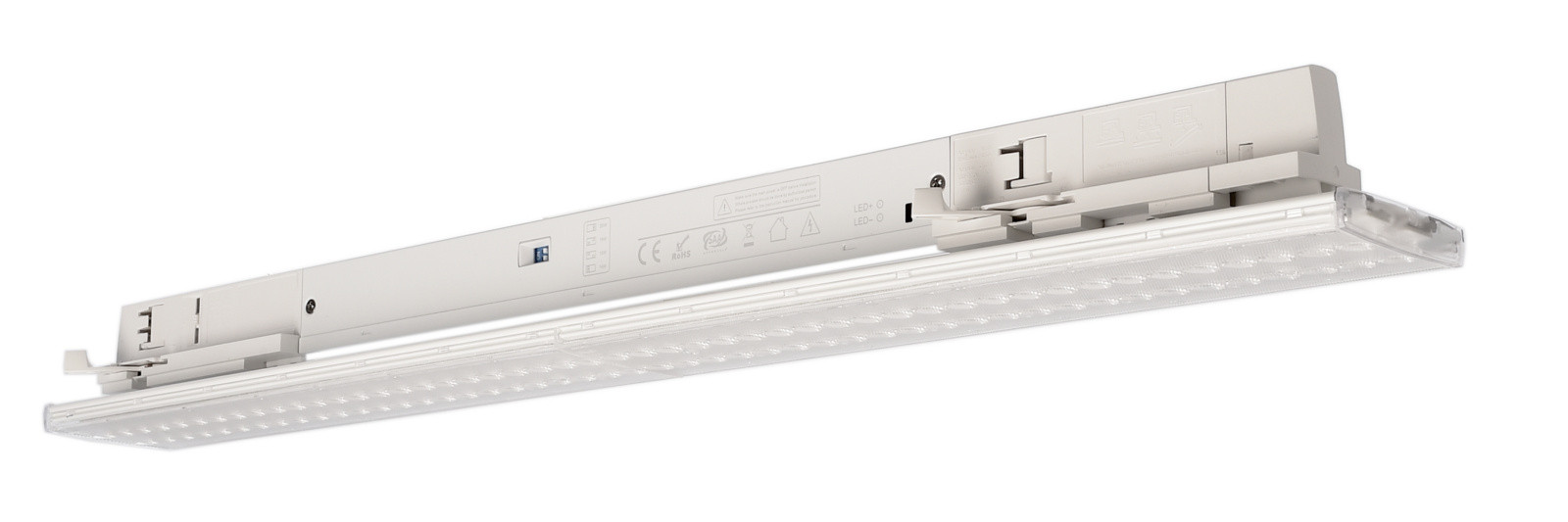

3-Phasenleuchte - Linear Pro, Tilt 600, 14/16/18/20W, 4000K, Weiß
